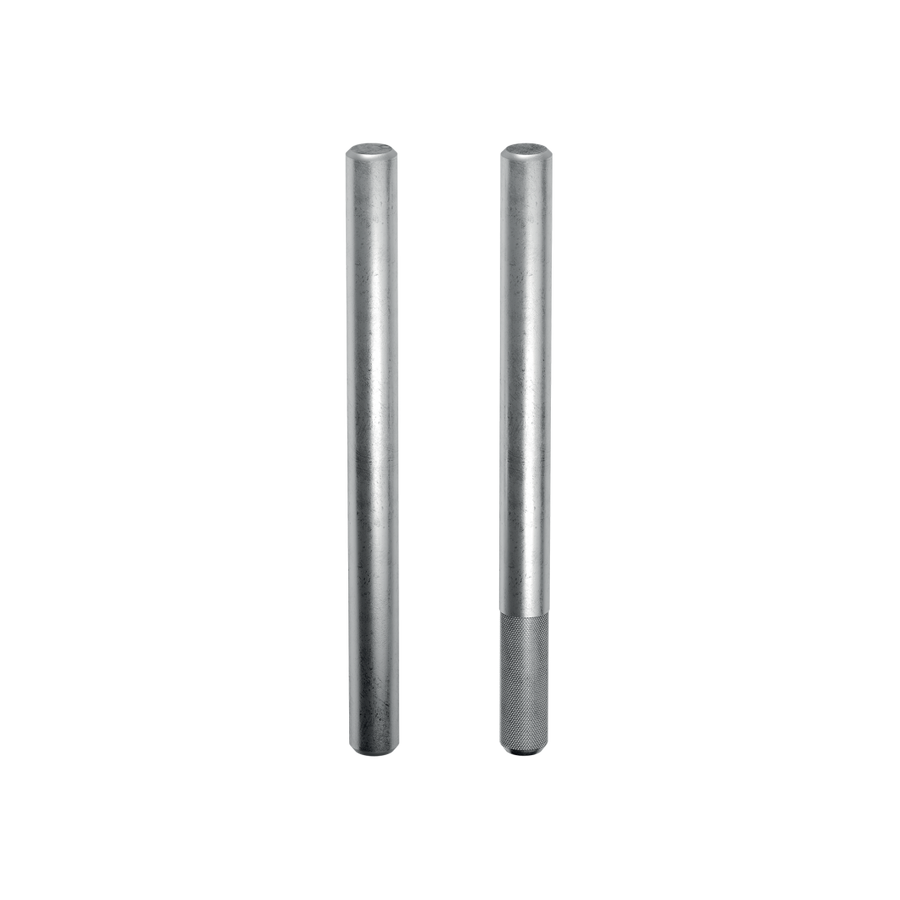

STA · Smooth dowel
Product code: STA1260B
£21.18
ex VAT
· 50 per box
£25.42 inc VAT
£0.42 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy
Smooth structural dowel for timber-to-timber and timber-to-steel shear connections. The tapered tip eases insertion into the prepared hole, and the cylindrical body transfers shear across the joint.
Ideal for concealed connections with internal steel or aluminium knife plates, including ALU and ALUMEGA brackets. When recessed and capped with timber plugs it meets fire safety requirements with a clean appearance.
- Smooth dowel for timber-to-timber and timber-to-steel shear joints
- Tapered tip for easy insertion into the prepared hole
- Ø12mm in S235 carbon steel, electrogalvanised
- Ideal with internal plates for concealed connections in large structures
- CE marked to EN 14592
- Service class SC2, atmospheric corrosivity C2
- Also produced on request as the STAS knurled version for seismic zones and in A2 stainless for outdoor use
Price shown is per box. Select length to see pack quantity and price.
Material
Stainless steel A2 (AISI 304)
Coating
None (stainless steel)
Product range
STA
Type
Structural dowel
Brand
Rothoblaas
Supplied
Per box (see pack quantity)
Timber-to-timberTimber-to-metal platesShear connectionsConcealed connectorStructural connectionsJoist hangers & bracketsSeismic detailingOutdoor & exposed useCorrosive environmentsConcealed connections
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the STA · Smooth dowel range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Length | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|
| STA1260B | 60 mm | 50 pcs | £21.18 | To order | |
| STA1270B | 70 mm | 100 pcs | £47.73 | To order | |
| STA1280B | 80 mm | 50 pcs | £27.73 | To order | |
| STA1290B | 90 mm | 100 pcs | £61.33 | To order | |
| STA12100B | 100 mm | 50 pcs | £33.34 | To order | |
| STA12110B | 110 mm | 50 pcs | £36.27 | To order | |
| STA12120B | 120 mm | 50 pcs | £38.66 | To order | |
| STA12130B | 130 mm | 50 pcs | £41.07 | To order | |
| STA12140B | 140 mm | 25 pcs | £22.00 | To order | |
| STA12150B | 150 mm | 25 pcs | £23.60 | To order | |
| STA12160B | 160 mm | 25 pcs | £24.67 | To order | |
| STA12170B | 170 mm | 25 pcs | £26.13 | To order | |
| STA12180B | 180 mm | 100 pcs | £109.87 | To order | |
| STA12200B | 200 mm | 100 pcs | £121.60 | To order | |
| STA12220B | 220 mm | 100 pcs | £138.13 | To order | |
| STA12240B | 240 mm | 100 pcs | £150.93 | To order | |
| STA12260B | 260 mm | 100 pcs | £154.13 | To order | |
| STA12280B | 280 mm | 100 pcs | £173.33 | To order | |
| STA12320B | 320 mm | 100 pcs | £182.93 | To order | |
| STA12340B | 340 mm | 100 pcs | £208.00 | To order | |
