Rothoblaas WKR · Tensile angle bracket for buildings
Supplied to order

Rothoblaas

WKR · Tensile angle bracket for buildings

Product code: WKR9530
£3.48 ex VAT · 1 per box
£4.18 inc VAT
£3.48 per unit
Total: £3.48 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

Complete your connection

Fixings sold separately.

The WKR is a tensile angle bracket for buildings, designed to anchor timber frame and CLT walls under small to medium uplift loads. Optimised nailing patterns suit narrow frame studs, and certified raised installation lets it span a bedding grout, base plate or concrete kerb up to 370 mm high while managing site tolerances.

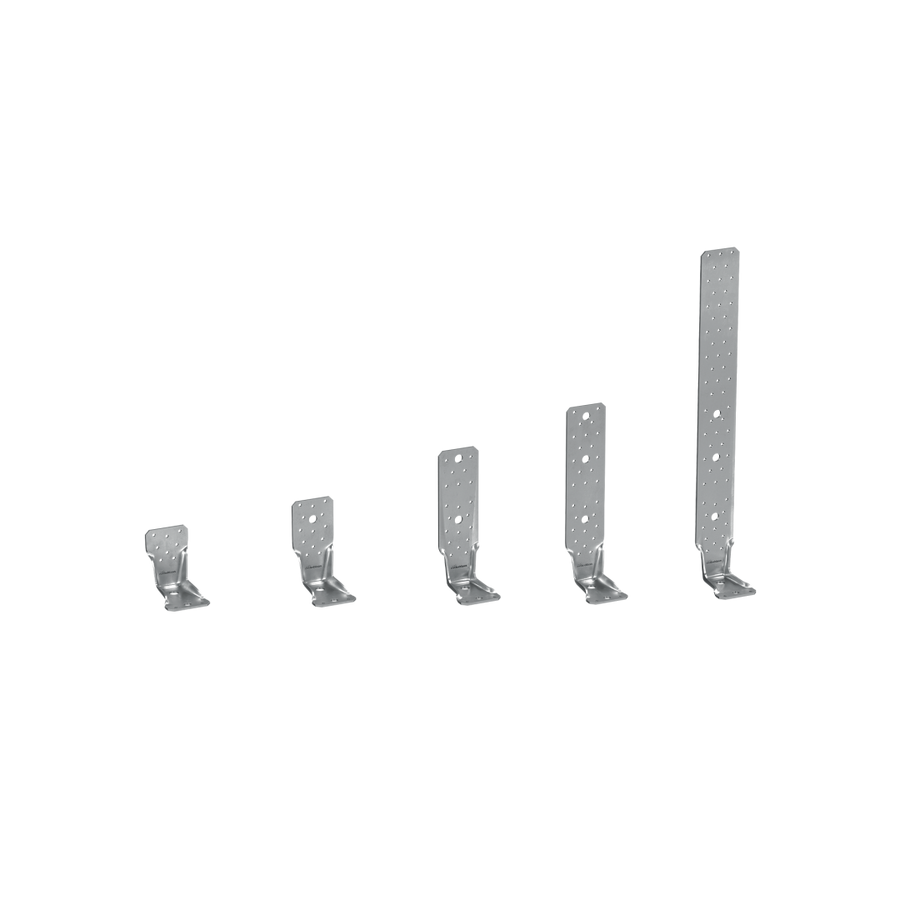

  • Five heights from 95 to 530 mm for a range of wall and load requirements
  • Optimised nailing patterns for timber frame and CLT, including narrow studs
  • Full or partial fastening patterns for capacity design
  • Certified for raised installation with a gap over a kerb, with a lock nut under the flange
  • Suitable for solid timber, glulam, timber frame, CLT and LVL panels
  • Timber-to-timber, timber-to-concrete and timber-to-steel configurations
  • Material: WKR9530 in S250GD + Z275; WKR13535 to WKR53035 in S235 + Fe/Zn12c galvanised carbon steel
  • Service class: SC1, SC2
  • CE marked to ETA-22/0089
  • Fasten with LBA nails or LBS screws on timber, VGS screws or HBS PLATE in timber-to-timber, and AB1, SKR, VIN-FIX, HYB-FIX or EPO-FIX M12 anchors on concrete, all supplied separately
  • Dimensions shown are base width by depth by height

Price shown is per bracket. Select a size to see the price.

WKR | Product video

Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
WKR
Type
Angle bracket
Brand
Rothoblaas
Supplied
Per unit
Tensile connectionsHold-down fixingUplift restraintTimber frame wallsCLT wallsAngle brackets & hangersStructural connectionsMass timber constructionPost anchoringTimber-to-timberTimber-to-concreteJoist hangers & brackets
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
65 × 85 × 95 mmWKR9530 Each £3.48each Supplied to order
Items
65 × 85 × 135 mmWKR13535 Each £4.98each Supplied to order
Items
65 × 85 × 215 mmWKR21535 Each £7.34each Supplied to order
Items
65 × 85 × 287 mmWKR28535 Each £7.42each Supplied to order
Items
65 × 85 × 530 mmWKR53035 Each £14.72each Supplied to order
Items
£0.00 ex VATChoose quantities above
