Rothoblaas

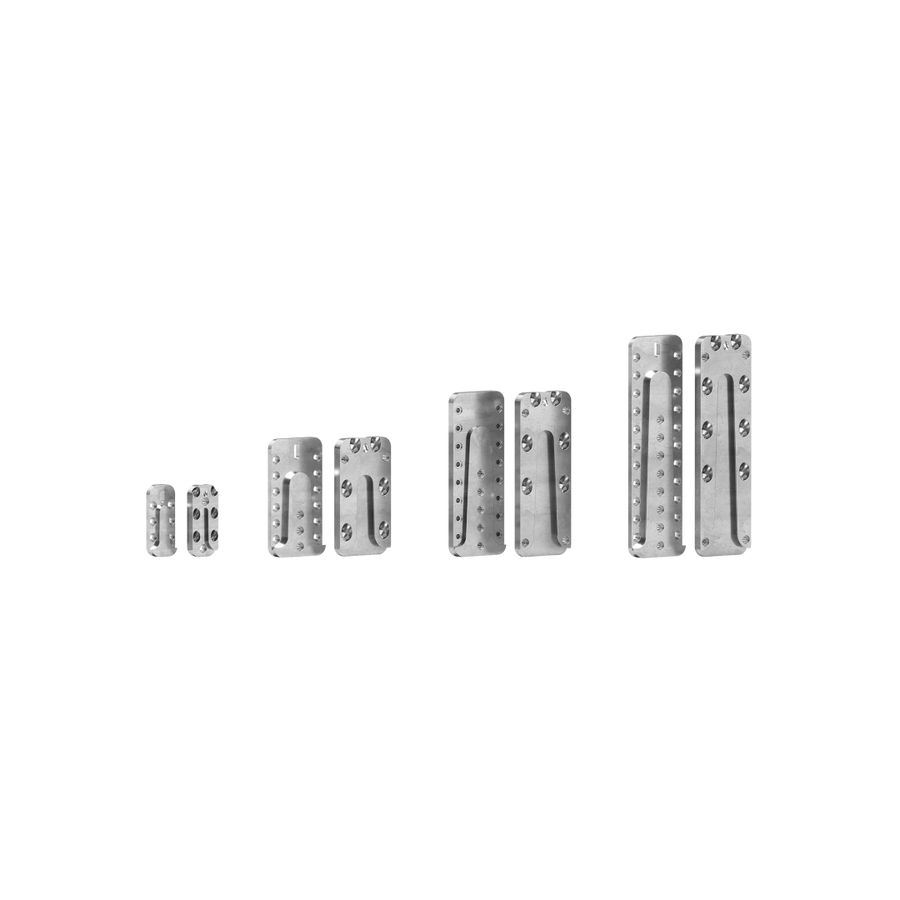

UV T · Timber-to-timber dovetail connector
Product code: UVT3070
£22.35
ex VAT
· 1 per box
£26.82 inc VAT
£22.35 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
Returns accepted within 30 days
Unopened stock only · Contact us first
UV T is a concealed dovetail connector for timber-to-timber beam joints, ideal for gazebos, floors and roofs. The two halves slide together with a precise dovetail geometry for a clean, hidden connection, and a locking screw prevents pull-out so the joint resists loads in the opposite direction too. The hanging system installs quickly and can be removed again, making it well suited to demountable and temporary structures.
- Fully concealed dovetail joint for a precise, attractive finish
- Inclined screws in the secondary beam resist loads in all directions, vertical, horizontal and axial
- Safe under wind and seismic actions
- Locking screw prevents pull-out and adds reverse-direction strength
- Fast, intuitive assembly; removable for temporary structures
- Characteristic shear strength over 60 kN on the largest version
- Suitable for solid softwood and hardwood, glulam and LVL
- Material: EN AW-6082 aluminium alloy
- Service class: SC1, SC2
- CE marked under ETA
- Screws not included; use Rothoblaas LBS 90 degree screws plus HBS or VGS 45 degree screws to suit the connector size
Price shown is per connector. Select size to see the price.
Order by Wednesday midnight. Dispatched Thursday.
Material
Aluminium
Coating
None (mill-finish aluminium)
Product range
UV T
Type
Timber connector
Service class
SC1-SC2
Brand
Rothoblaas
Supplied
Per unit
Timber-to-timberConcealed connectorBeam connectionsPergolas & carportsFloor & roof framingMass timber constructionShear connectionsTensile connectionsSeismic detailing
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the UV T · Timber-to-timber dovetail connector range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Size | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|
| UVT3070 | 30 × 70 × 16 mm | 1 pcs | £22.35 | To order | |
| UVT4085 | 40 × 85 × 16 mm | 1 pcs | £25.81 | To order | |
| UVT60115 | 60 × 115 × 16 mm | 1 pcs | £40.64 | To order | |
| UVT60160 | 60 × 160 × 16 mm | 1 pcs | £68.80 | To order | |
| UVT60215 | 60 × 215 × 16 mm | 1 pcs | £74.13 | To order | |
