BSI · Metal beam hanger with internal wings
Product code: BSIS40110
£3.29
ex VAT
· 1 per box
£3.95 inc VAT
£3.29 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy

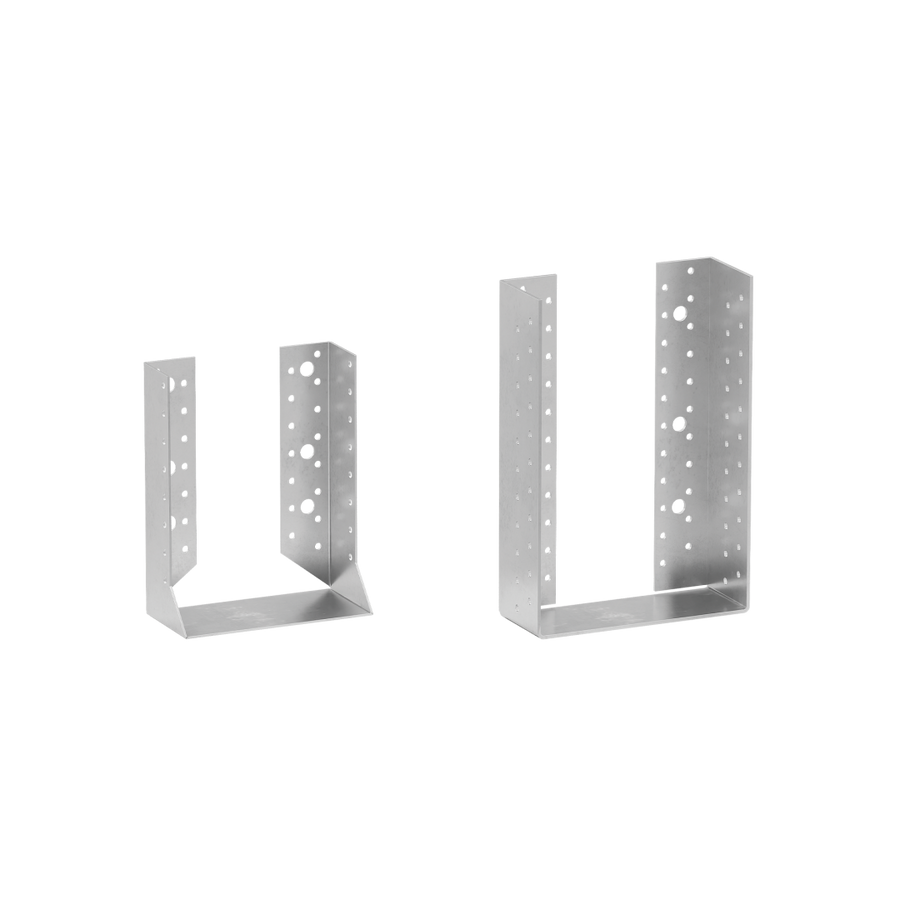

Metal beam hanger with internal wings for connecting secondary beams to main beams. The internal wings make the junction almost entirely concealed. Available in two versions: standard (BSIS, 2mm) and large (BSIG, 2.5mm). CE marked.
- BSIS · Standard: 2mm thickness, S250/Z275 galvanised · concealed internal wings · CE marked
- BSIG · Large: 2.5mm thickness for heavy beam applications · CE marked
- Internal wings make the junction almost entirely concealed
- Allows beam rotation: simultaneous vertical and lateral force application
- Suitable for OSB applications

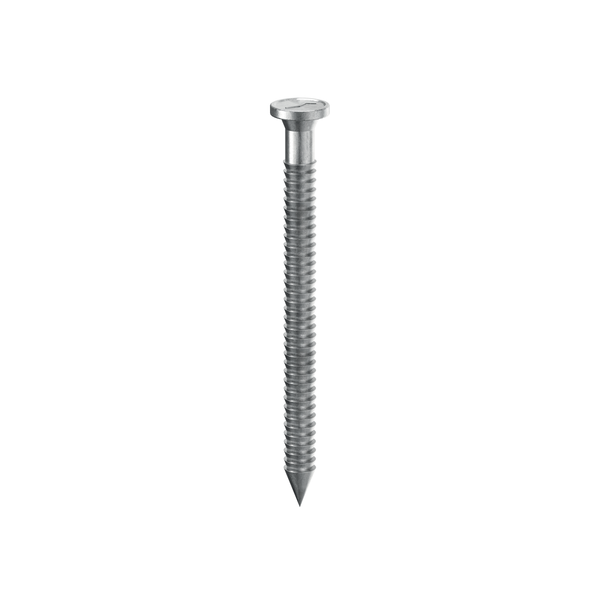

- Fastened with LBA nails (included separately)
- Service class: SC2
Select type, width (B) and height (H) to find the right hanger. Sold individually.
Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
BSI
Type
Timber connector
Service class
SC1-SC2
Brand
Rothoblaas
Supplied
Per unit
Joist hangingTimber-to-timberConcealed connectionInternal-wing fixingFloor framingRoof framingFlush finishBeam-to-beamFloor & roof framingJoist hangers & brackets
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the BSI · Metal beam hanger with internal wings range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Type | Width B | Height H | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|---|---|
| BSIS40110 | BSIS — Standard | 40 mm | 110 mm | 1 pcs | £3.29 | In stock | |
| BSIS60100 | BSIS — Standard | 60 mm | 100 mm | 1 pcs | £5.90 | To order | |
| BSIS60160 | BSIS — Standard | 60 mm | 160 mm | 1 pcs | £4.49 | To order | |
| BSIS70125 | BSIS — Standard | 70 mm | 125 mm | 1 pcs | £3.62 | To order | |
| BSIS80120 | BSIS — Standard | 80 mm | 120 mm | 1 pcs | £6.87 | To order | |
| BSIS80150 | BSIS — Standard | 80 mm | 150 mm | 1 pcs | £3.37 | To order | |
| BSIS80180 | BSIS — Standard | 80 mm | 180 mm | 1 pcs | £4.14 | To order | |
| BSIS90145 | BSIS — Standard | 90 mm | 145 mm | 1 pcs | £4.49 | To order | |
| BSIS10090 | BSIS — Standard | 100 mm | 90 mm | 1 pcs | £8.48 | To order | |
| BSIS100120 | BSIS — Standard | 100 mm | 120 mm | 1 pcs | £3.01 | To order | |
| BSIS100140 | BSIS — Standard | 100 mm | 140 mm | 1 pcs | £8.02 | To order | |
| BSIS100170 | BSIS — Standard | 100 mm | 170 mm | 1 pcs | £3.91 | In stock | |
| BSIS100200 | BSIS — Standard | 100 mm | 200 mm | 1 pcs | £4.28 | To order | |
| BSIS120120 | BSIS — Standard | 120 mm | 120 mm | 1 pcs | £3.88 | To order | |
| BSIS120160 | BSIS — Standard | 120 mm | 160 mm | 1 pcs | £9.27 | To order | |
| BSIS120190 | BSIS — Standard | 120 mm | 190 mm | 1 pcs | £4.28 | To order | |
| BSIS140140 | BSIS — Standard | 140 mm | 140 mm | 1 pcs | £5.01 | To order | |
| BSIS140180 | BSIS — Standard | 140 mm | 180 mm | 1 pcs | £3.33 | To order | |
| BSIG120240 | BSIG — Large | 120 mm | 240 mm | 1 pcs | £18.29 | To order | |
| BSIG140240 | BSIG — Large | 140 mm | 240 mm | 1 pcs | £18.93 | To order | |
| BSIG160160 | BSIG — Large | 160 mm | 160 mm | 1 pcs | £12.21 | To order | |
| BSIG160200 | BSIG — Large | 160 mm | 200 mm | 1 pcs | £11.31 | To order | |
| BSIG180220 | BSIG — Large | 180 mm | 220 mm | 1 pcs | £13.92 | To order | |
| BSIG200200 | BSIG — Large | 200 mm | 200 mm | 1 pcs | £18.45 | To order | |
| BSIG200240 | BSIG — Large | 200 mm | 240 mm | 1 pcs | £23.47 | To order | |
