Home / Shop/ SBD · Self-drilling dowel
Rothoblaas SBD · Self-drilling dowel
Supplied to order

Rothoblaas

SBD · Self-drilling dowel

Product code: SBD7555
£50.13 ex VAT · 50 per box
£60.16 inc VAT
£1.00 per unit
Total: £50.13 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

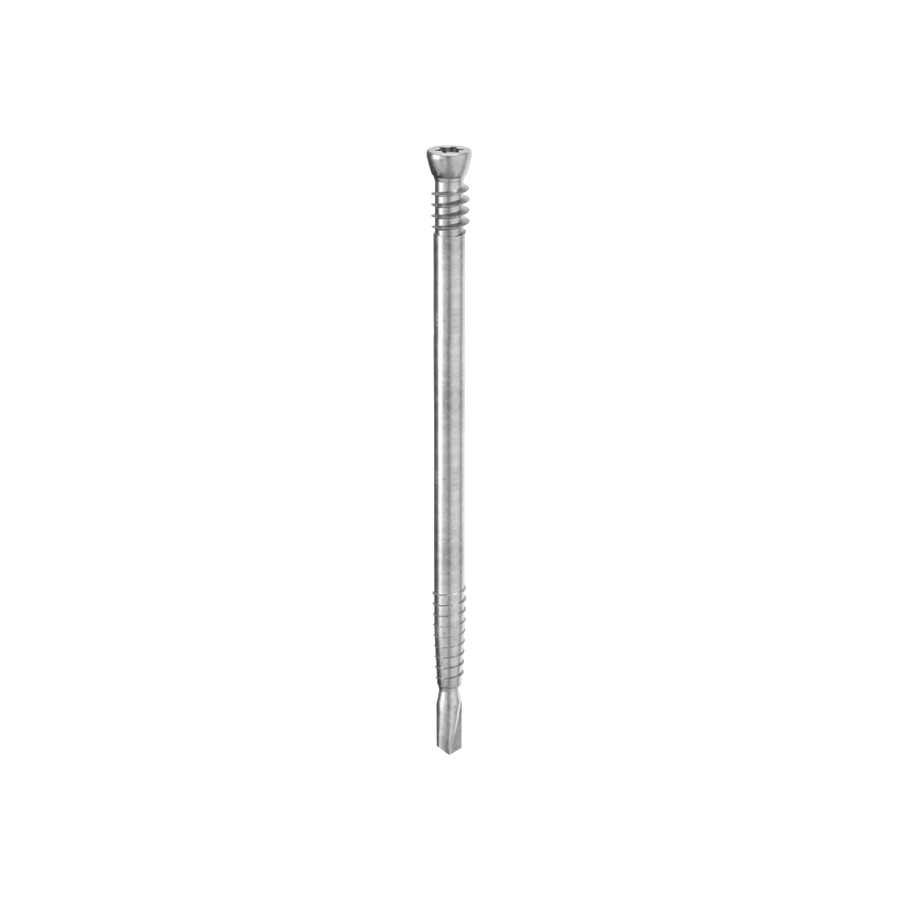

Self-drilling dowel for concealed timber-to-steel connections. The tapered self-perforating tip drills straight through the steel plate, removing the need for pre-drilling and speeding up installation even in hard-to-reach positions.

The 7.5mm diameter gives high shear strength and lets you optimise the number of fasteners, while the double thread near the tip and under the head draws the joint together precisely. The cylindrical head sinks below the timber surface for a clean finish and fire performance.

  • Self-drilling tip perforates steel plates up to 10mm (S235, S275, S355)
  • Also suitable for ALUMINI, ALUMIDI and ALUMAXI aluminium brackets
  • Restores shear and moment in concealed centreline beam joints
  • Ø7.5mm, drive TX40, bit included
  • Material: electrogalvanised carbon steel
  • CE marked to EN 14592
  • Service class SC1 to SC2, atmospheric corrosivity C1 to C2
  • Do not use pulse or impact drivers, reach the plate slowly to protect the tip

Price shown is per box of 50. Select length to see the price.

SBD | Product video

Material
Aluminium
Coating
None (mill-finish aluminium)
Product range
SBD
Type
Structural dowel
Brand
Rothoblaas
Supplied
Per box (see pack quantity)
Timber-to-metal platesShear connectionsConcealed connectorSelf-drillingStructural connectionsJoist hangers & bracketsConcealed connections
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
55 mmSBD7555 Box of 50 £50.13per box Supplied to order
Boxes
75 mmSBD7575 Box of 50 £62.13per box Supplied to order
Boxes
95 mmSBD7595 Box of 50 £72.00per box Supplied to order
Boxes
115 mmSBD75115 Box of 50 £68.63per box Supplied to order
Boxes
135 mmSBD75135 Each £1.67each Supplied to order
Items
155 mmSBD75155 Box of 50 £92.00per box Supplied to order
Boxes
175 mmSBD75175 Box of 50 £91.18per box Supplied to order
Boxes
195 mmSBD75195 Box of 50 £112.26per box Supplied to order
Boxes
215 mmSBD75215 Box of 50 £129.34per box Supplied to order
Boxes
235 mmSBD75235 Box of 50 £148.00per box Supplied to order
Boxes
£0.00 ex VATChoose quantities above
