Rothoblaas WBR · Reinforced angle bracket
Supplied to order

Rothoblaas

WBR · Reinforced angle bracket

Product code: WBR07015
£0.63 ex VAT · 1 per box
£0.76 inc VAT
£0.63 per unit
Total: £0.63 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

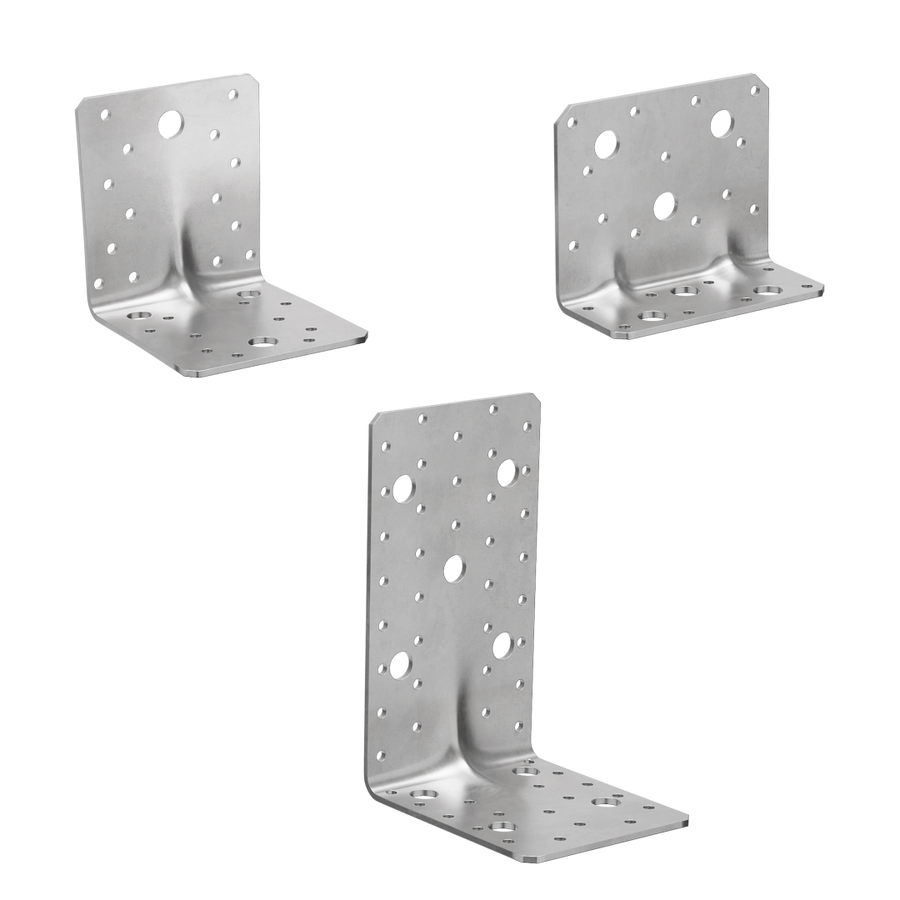

The WBR is a reinforced angle bracket for structural and non-structural timber connections. A central rib and a generous hole pattern give it high load capacity in a compact form, suitable for small structures and carpentry connections in both timber-to-timber and timber-to-concrete configurations.

  • Reinforcing rib for higher capacity than a plain angle bracket
  • Dual hole pattern: Ø5 holes for nails and screws, larger holes for anchors or bolts
  • Suitable for solid timber, glulam, LVL and other timber-based materials
  • Timber-to-timber and timber-to-concrete connections
  • Material: DX51D + Z275 galvanised carbon steel
  • Service class: SC1, SC2
  • CE marked to ETA
  • Fasten with LBA nails or LBS screws on timber, and SKR or VIN-FIX anchors on concrete, supplied separately
  • Dimensions shown are B width by P depth by H height

Price shown is per bracket. Select a size to see the price.

Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
WBR
Type
Angle bracket
Brand
Rothoblaas
Supplied
Per unit
Angle brackets & hangersConnector fasteningTimber-to-timberTimber-to-concreteStructural connectionsHigh-load connectionsMass timber constructionJoist hangers & bracketsHeavy structural connections
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
55 × 70 × 70 mmWBR07015 Each £0.63each Supplied to order
Items
65 × 90 × 90 mmWBR09015 Each £0.75each Supplied to order
Items
90 × 105 × 105 mmWBR10020 Each £1.41each Supplied to order
Items
110 × 50 × 90 mmWBR90110 Each £3.24each Supplied to order
Items
95 × 114 × 174 mmWBR170 Each £7.45each Supplied to order
Items
£0.00 ex VATChoose quantities above
