Home / Shop/ Lock T Mini · Concealed timber-to-timber beam connector
Rothoblaas Lock T Mini · Concealed timber-to-timber beam connector
Supplied to order

Rothoblaas

Lock T Mini · Concealed timber-to-timber beam connector

Product code: LOCKT1880
£7.58 ex VAT · 1 per box
£9.10 inc VAT
£7.58 per unit
Total: £7.58 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

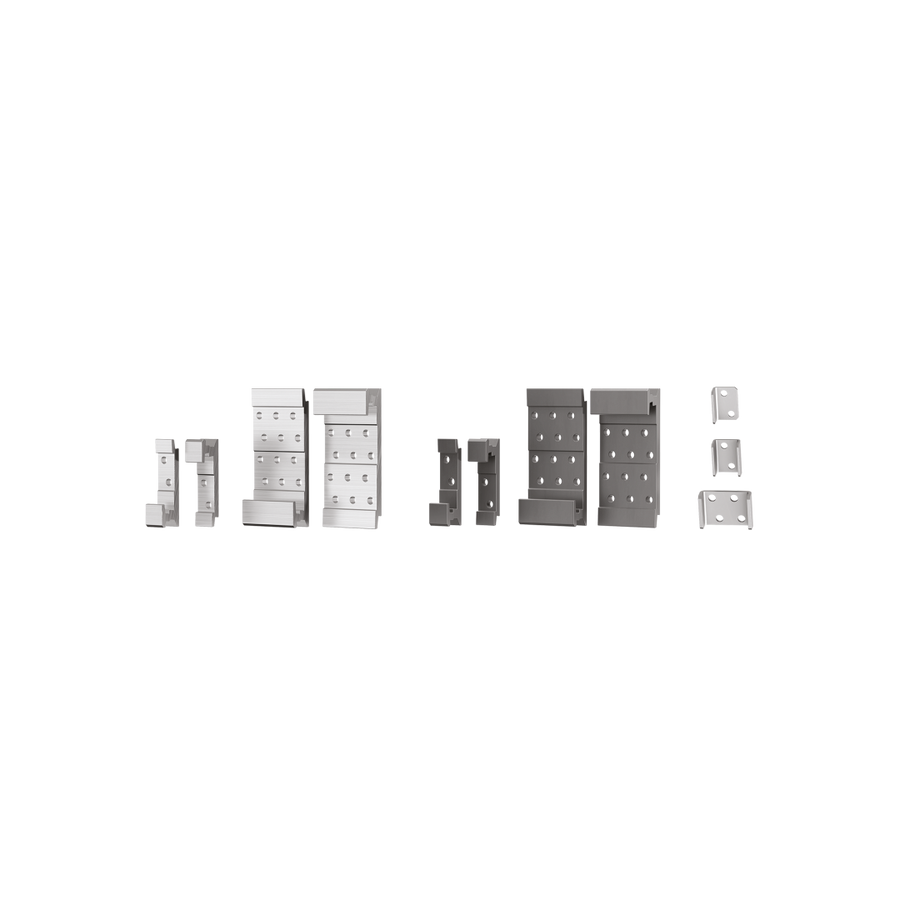

Concealed aluminium timber-to-timber connector for T-beam joints in solid timber, glulam and LVL. Suitable for small structures, gazebos, façades and furniture. Conceals in elements from 35mm thickness. Available in standard aluminium or EVO graphite black coated version for outdoor and aggressive environments. ETA-19/0831 certified. Service Classes 1, 2 and 3. Sold as a pair.

  • Concealed joint: hides inside the timber element from 35mm thickness
  • Certified strengths in all directions: vertical (Fv), uplift (Fup), lateral (Flat) and axial (Fax)
  • Easy disassembly: ideal for temporary structures
  • EVO version: graphite black special coating for Service Class 3 and aggressive environments
  • Suitable for façade sunscreen systems and outdoor structures
  • Material: EN AW-6005A aluminium alloy · Screws and LOCK STOP not included
  • ETA-19/0831 · SC1/SC2/SC3 · CE marked · Design registered · Sold as a pair

Select version and size to see price.

Order by Wednesday midnight. Dispatched Thursday.

LOCK series | Product video

Material
Aluminium
Coating
None (mill-finish aluminium)
Product range
Lock T Mini
Type
Timber connector
Service class
SC3
Brand
Rothoblaas
Supplied
Per unit
Timber-to-timberConcealed connectorBeam connectionsPergolas & carportsFurniture & joineryFacade connectionsMass timber constructionJoist hangers & bracketsTensile connectionsOutdoor & exposed useCorrosive environmentsService class 3
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
Standard aluminium / 17.5×80mm — LOCKT1880LOCKT1880 Each £7.58each Supplied to order
Items
Standard aluminium / 35×80mm — LOCKT3580LOCKT3580 Each £9.22each Supplied to order
Items
Standard aluminium / 35×100mm — LOCKT35100LOCKT35100 Each £9.85each Supplied to order
Items
Standard aluminium / 35×120mm — LOCKT35120LOCKT35120 Each £10.38each Supplied to order
Items
Standard aluminium / 52.5×120mm — LOCKT53120LOCKT53120 Each £12.08each Supplied to order
Items
EVO graphite black / 17.5×80mm — LOCKTEVO1880LOCKTEVO1880 Each £10.58each Supplied to order
Items
EVO graphite black / 35×80mm — LOCKTEVO3580LOCKTEVO3580 Each £15.17each Supplied to order
Items
EVO graphite black / 35×100mm — LOCKTEVO35100LOCKTEVO35100 Each £13.75each Supplied to order
Items
EVO graphite black / 35×120mm — LOCKTEVO35120LOCKTEVO35120 Each £17.59each Supplied to order
Items
EVO graphite black / 52.5×120mm — LOCKTEVO53120LOCKTEVO53120 Each £17.77each Supplied to order
Items
£0.00 ex VATChoose quantities above
