Supplied to order
Rothoblaas
ALUMINI · Slim concealed beam connector
Product code: ALUMINI65
£7.54
ex VAT
· 1 per box
£9.05 inc VAT
£7.54 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy

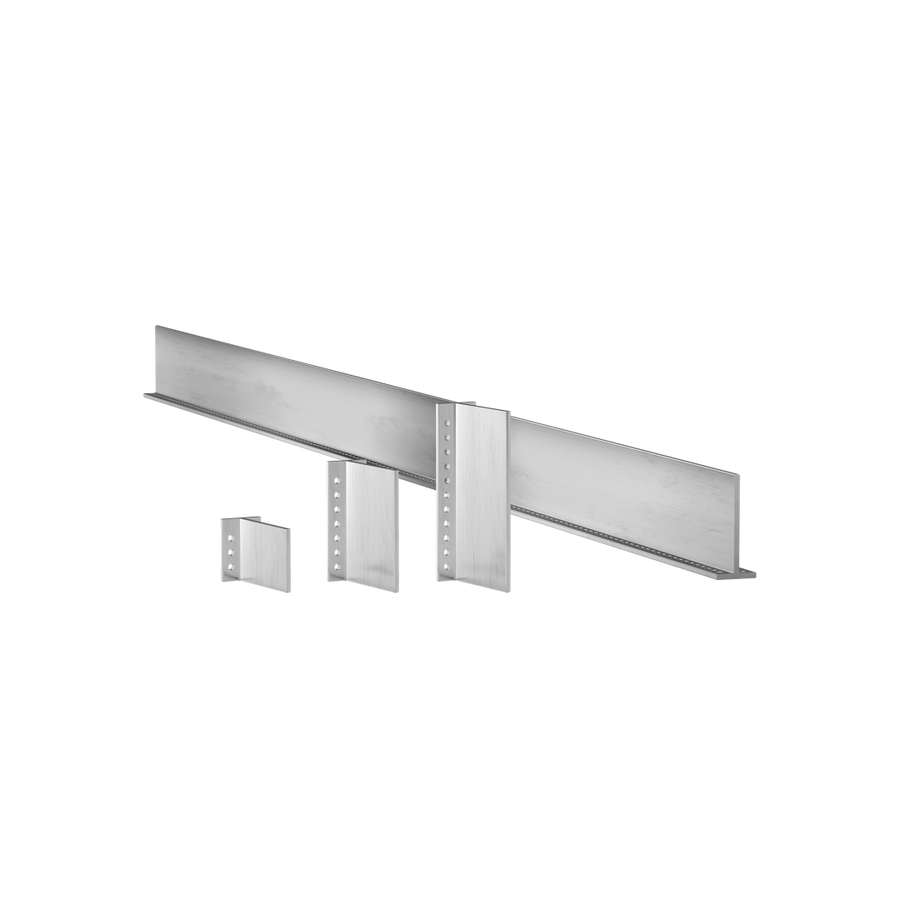

ALUMINI is a slim concealed aluminium beam connector for secondary beams from just 55 mm wide. Hidden within the beam, it suits small structures, gazebos and furniture, and carries vertical, lateral and axial loads in timber-to-timber and timber-to-concrete joints.
- Narrow body connects secondary beams from 55 mm wide
- Concealed connection for a clean finish and good fire behaviour
- Certified strengths in all directions, suitable for inclined joints
- The 2165 mm rod can be cut every 30 mm to make a bracket of the height required
- Suitable for solid timber softwood and hardwood, glulam and LVL
- Use outdoors in non-aggressive environments
- Material: EN AW-6060 aluminium alloy
- Service class: SC1, SC2, SC3
- CE marked to ETA-09/0361
- Fasten with HBS PLATE EVO screws on the main beam and SBD self-drilling or STA dowels on the secondary beam, supplied separately
Price shown is per connector. Select a height to see the price.
Material
Aluminium
Coating
None (mill-finish aluminium)
Product range
ALUMINI
Type
Timber connector
Brand
Rothoblaas
Supplied
Per unit
Timber-to-timberTimber-to-concreteConcealed connectorBeam connectionsPergolas & carportsFurniture & joineryMass timber constructionJoist hangers & bracketsOutdoor & exposed use
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the ALUMINI · Slim concealed beam connector range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Height | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|
| ALUMINI65 | 65 mm | 1 pcs | £7.54 | To order | |
| ALUMINI95 | 95 mm | 1 pcs | £9.25 | To order | |
| ALUMINI125 | 125 mm | 1 pcs | £11.20 | To order | |
| ALUMINI155 | 155 mm | 1 pcs | £13.81 | To order | |
| ALUMINI185 | 185 mm | 1 pcs | £15.25 | To order | |
| ALUMINI215 | 215 mm | 1 pcs | £19.95 | To order | |
