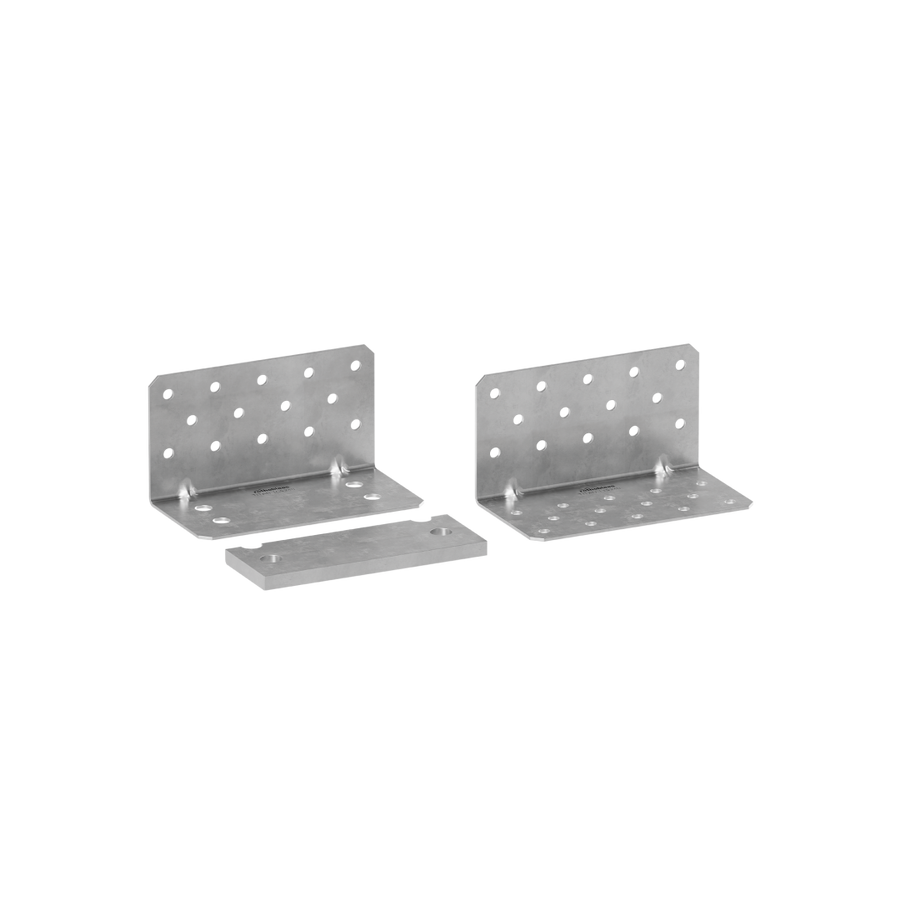

TITAN S · Shear and tensile angle bracket
Product code: TCS240
£9.34
ex VAT
· 1 per box
£11.21 inc VAT
£9.34 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
Returns accepted within 30 days
Unopened stock only · Contact us first
TITAN S is a heavy-duty angle bracket for shear and tensile forces in timber walls. Fastened with HBS PLATE Ø8 screws for quick, demountable installation, it reaches up to 60 kN shear on timber and, with the TCW washer, up to 85.9 kN shear and 75.9 kN tensile on concrete. The range covers timber-to-timber (TTS), timber-to-concrete (TCS) and the matching TCW washer.
- Exceptional capacity in all load directions for walls under high stress
- TCS240 for timber-to-concrete, TTS240 for timber-to-timber, TCW240 washer to boost concrete values
- Screwed assembly with HBS PLATE or HBS PLATE EVO Ø8 screws, fully demountable
- Suitable for solid timber, glulam, CLT and LVL panels
- Timber-to-timber, timber-to-concrete and timber-to-steel configurations
- Material: TITAN S in DX51D + Z275; TITAN washer in S235 + Fe/Zn12c galvanised carbon steel
- Service class: SC1, SC2
- CE marked to ETA-11/0496; UK assessment UKTA-0836-22/6373
- Fasten with HBS PLATE Ø8 screws on timber and AB1, SKR, VIN-FIX, HYB-FIX or EPO-FIX M16 anchors on concrete, all supplied separately
- Dimensions shown are width by depth by height (TCS240 and TTS240) or width by depth by thickness (TCW240)
Price shown is per unit. Select a type to see the price.
Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
TITAN S
Type
Angle bracket
Brand
Rothoblaas
Supplied
Per unit
Shear connectionsTensile connectionsAngle brackets & hangersTimber-to-timberTimber-to-concreteTimber frame wallsHeavy structural connectionsSeismic detailingMass timber constructionJoist hangers & bracketsCorrosive environmentsStructural connections
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the TITAN S · Shear and tensile angle bracket range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Type | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|
| TCS240 | TCS240 — timber-to-concrete 240 × 123 × 130 mm | 1 pcs | £9.34 | To order | |
| TTS240 | TTS240 — timber-to-timber 240 × 130 × 130 mm | 1 pcs | £10.93 | To order | |
| No sizes match your search. | |||||
