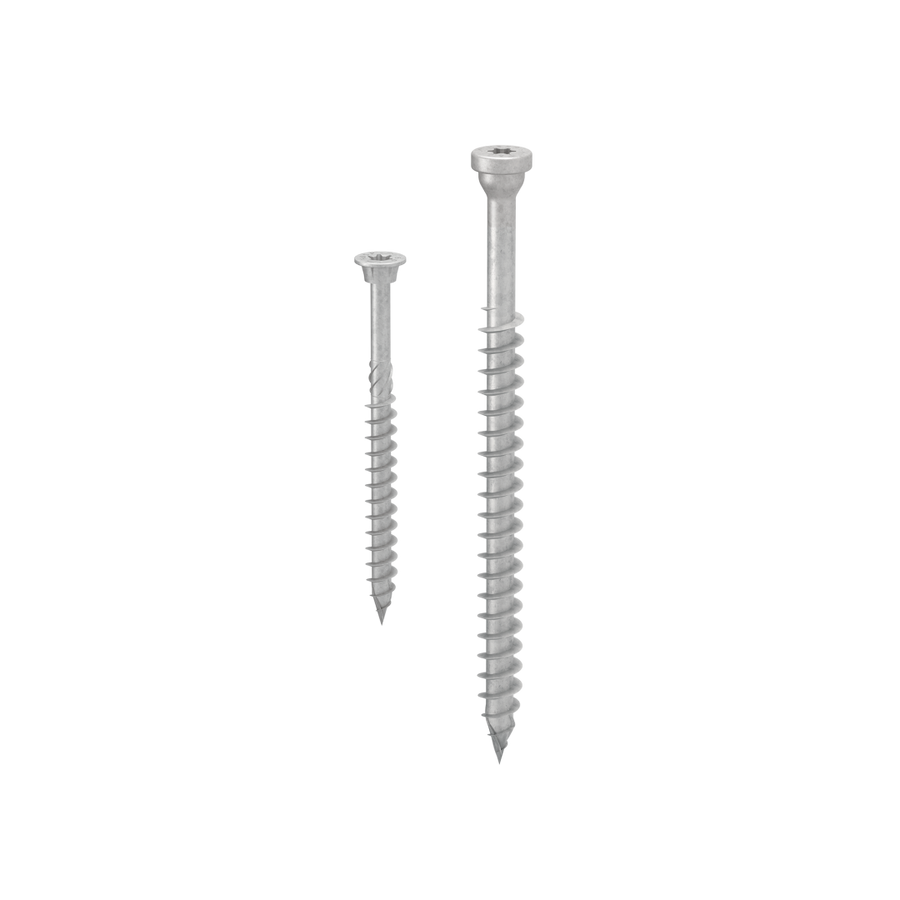

HBS PLATE EVO · Pan head screw for plates, C4
Product code: HBSPEVO550
£20.38
ex VAT
· 200 per box
£24.46 inc VAT
£0.10 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
Returns accepted within 30 days
Unopened stock only · Contact us first
Pan head screw for fastening steel plates to timber in outdoor and corrosive environments. The under-head shoulder interlocks with the circular hole in the plate and the edgeless head geometry reduces stress concentration, guaranteeing excellent static performance.
The C4 EVO coating was tested to atmospheric corrosion class C4 by RISE (Research Institutes of Sweden), making it suitable for ACQ and CCA treated timber and acidic woods such as spruce, larch and pine. The increased core diameter raises thick plate performance by more than 15% in steel-to-timber connections.
- C4 EVO coating for coastal, industrial and treated-timber applications
- Interlocking under-head shoulder for high static performance on plates
- Increased core diameter for thick plate connections
- Suitable for solid timber, glulam, CLT, LVL and high density woods
- ETA-11/0030 certified
- Drive: TX40 (Ø8, Ø10), TX50 (Ø12), bit included
- Material: carbon steel with C4 EVO coating
- Service class SC1 to SC3, atmospheric corrosivity C1 to C4
- Install with a torque-controlled screwdriver, impact drivers not permitted
Price shown is per box. Select diameter and length to see pack quantity and price.
Material
Carbon steel
Coating
C4 high-corrosion coating
Head type
Pan head
Drive
TX (Torx)
Product range
HBS PLATE EVO
Type
Timber screw
Service class
SC1-SC3
Brand
Rothoblaas
Supplied
Per box (see pack quantity)
Timber-to-metal platesConnector fasteningPan head fixingOutdoor & exposed useCorrosive environmentsMass timber constructionService class 3
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the HBS PLATE EVO · Pan head screw for plates, C4 range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Diameter | Length | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|---|
| HBSPEVO550 | 5 mm | 50 mm | 200 pcs | £20.38 | To order | |
| HBSPEVO560 | 5 mm | 60 mm | 200 pcs | £21.86 | To order | |
| HBSPEVO570 | 5 mm | 70 mm | 100 pcs | £14.24 | To order | |
| HBSPLEVO840 | 8 mm | 40 mm | 100 pcs | £30.92 | To order | |
| HBSPLEVO860 | 8 mm | 60 mm | 100 pcs | £34.56 | To order | |
| HBSPLEVO880 | 8 mm | 80 mm | 100 pcs | £45.38 | To order | |
| HBSPLEVO8100 | 8 mm | 100 mm | 100 pcs | £61.76 | To order | |
| HBSPLEVO8120 | 8 mm | 120 mm | 100 pcs | £68.48 | To order | |
| HBSPLEVO8140 | 8 mm | 140 mm | 100 pcs | £79.36 | To order | |
| HBSPLEVO8160 | 8 mm | 160 mm | 100 pcs | £87.04 | To order | |
| HBSPLEVO1060 | 10 mm | 60 mm | 50 pcs | £34.24 | To order | |
| HBSPLEVO1080 | 10 mm | 80 mm | 50 pcs | £37.44 | To order | |
| HBSPLEVO10100 | 10 mm | 100 mm | 50 pcs | £42.88 | To order | |
| HBSPLEVO10120 | 10 mm | 120 mm | 50 pcs | £51.52 | To order | |
| HBSPLEVO10140 | 10 mm | 140 mm | 50 pcs | £65.28 | To order | |
| HBSPLEVO10160 | 10 mm | 160 mm | 50 pcs | £86.40 | To order | |
| HBSPLEVO10180 | 10 mm | 180 mm | 50 pcs | £103.04 | To order | |
| HBSPLEVO12120 | 12 mm | 120 mm | 25 pcs | £61.44 | To order | |
| HBSPLEVO12140 | 12 mm | 140 mm | 25 pcs | £69.44 | To order | |
| HBSPLEVO12160 | 12 mm | 160 mm | 25 pcs | £77.60 | To order | |
| HBSPLEVO12180 | 12 mm | 180 mm | 25 pcs | £84.32 | To order | |
| HBSPLEVO12200 | 12 mm | 200 mm | 25 pcs | £90.40 | To order | |
| No sizes match your search. | ||||||
