Supplied to order
Rothoblaas

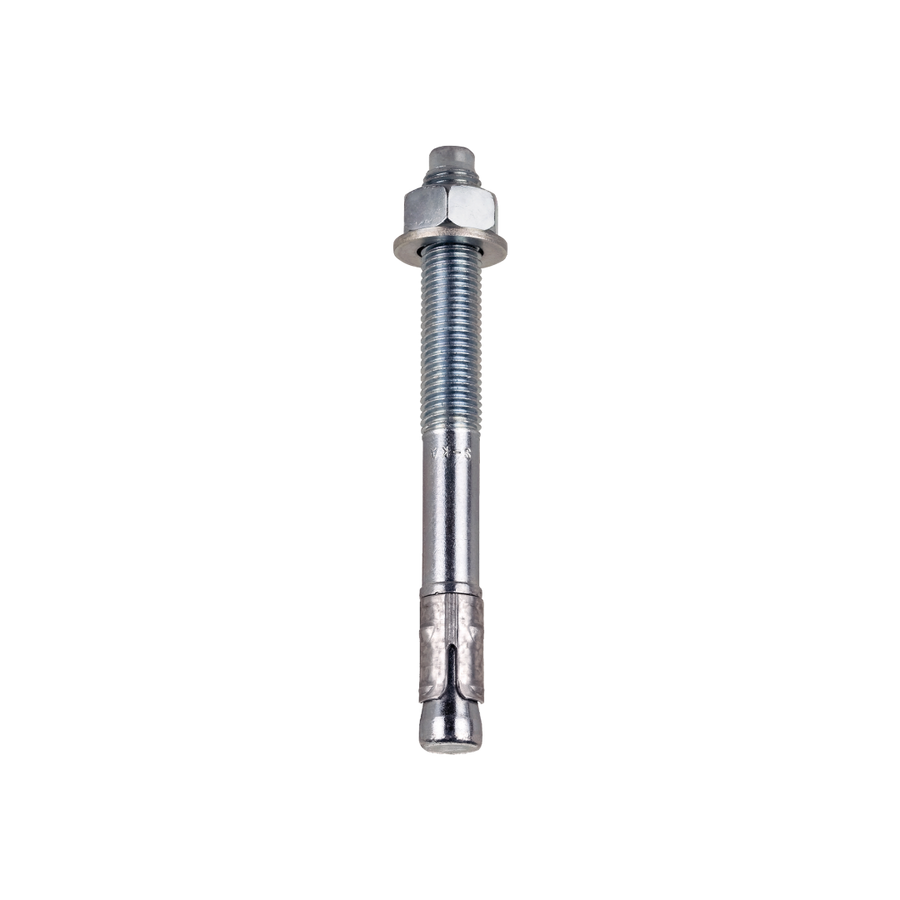

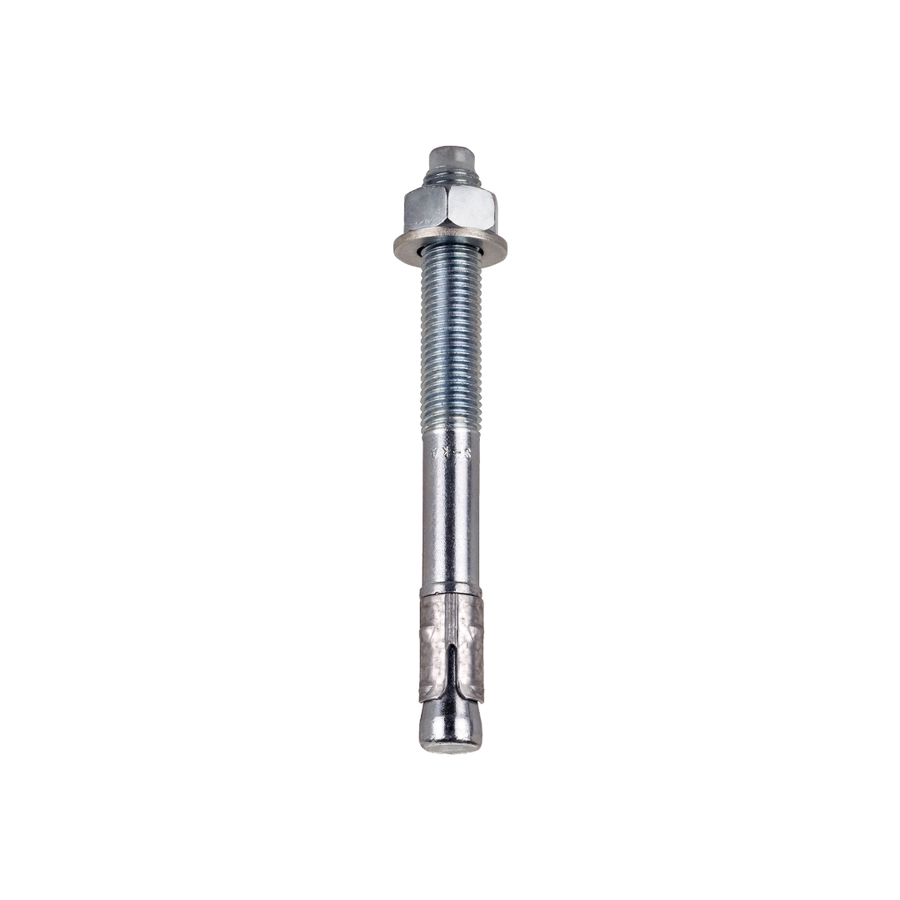

AB1 · Heavy duty expansion anchor
Product code: AB110115
£35.33
ex VAT
· 25 per box
£42.40 inc VAT
£1.41 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
Returns accepted within 30 days
Unopened stock only · Contact us first
The AB1 is a heavy duty torque-controlled expansion anchor for through-fastening into concrete. As the nut is tightened, the sleeve expands to grip the hole, giving a reliable mechanical fix in both cracked and uncracked concrete for structural connections, brackets, hold-downs and base plates.
- Torque-controlled expansion for a fast, reliable mechanical fix
- Approved for cracked and uncracked concrete (CE option 1)
- Seismic performance category C1 (M10 to M16) and C2 (M12 to M16)
- Fire resistance R120
- Through fastening, supplied complete with nut and washer
- Suitable for dense base materials
- Material: electrogalvanised carbon steel
- Service class: SC1, SC2; atmospheric corrosivity C1, C2
- CE marked: M10 and M12 to ETA-17/0481, M16 to ETA-99/0010
- Pairs with WHT, WKR, TITAN and other Rothoblaas brackets needing an M10 to M16 anchor
- Codes read diameter by length, for example M12 x 120 mm
Price shown is per box. Select diameter and length to see the price.
Material
Carbon steel
Coating
Electrogalvanised zinc
Product range
AB1
Type
Expansion anchor
Brand
Rothoblaas
Supplied
Per box (see pack quantity)
Concrete anchoringHeavy structural fixingHold-down fixingStructural baseplatesBracket fixingCracked & non-cracked concretePost anchoringJoist hangers & bracketsHeavy structural connectionsTensile connectionsSeismic detailingConcrete fastening
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the AB1 · Heavy duty expansion anchor range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Diameter | Length | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|---|
| AB110115 | M10 | 115 mm | 25 pcs | £35.33 | To order | |
| AB110135 | M10 | 135 mm | 25 pcs | £42.40 | To order | |
| AB112100 | M12 | 100 mm | 25 pcs | £45.87 | To order | |
| AB112120 | M12 | 120 mm | 25 pcs | £50.67 | To order | |
| AB112150 | M12 | 150 mm | 25 pcs | £57.73 | To order | |
| AB112180 | M12 | 180 mm | 25 pcs | £66.40 | To order | |
| AB116145 | M16 | 145 mm | 10 pcs | £49.49 | To order | |
| No sizes match your search. | ||||||
