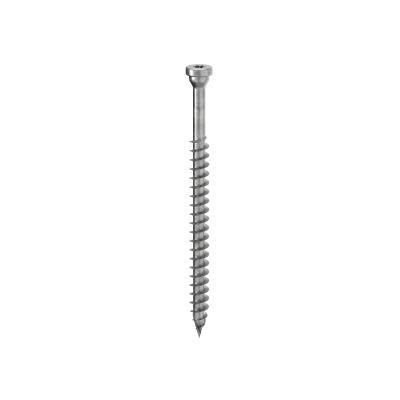

Rothoblaas HBS PLATE · Pan head screw for plates
Supplied to order

Rothoblaas

HBS PLATE · Pan head screw for plates

Product code: HBSPL860
£18.66 ex VAT · 100 per box
£22.39 inc VAT
£0.19 per unit
Total: £18.66 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

Pan head screw for fastening perforated and custom steel plates to timber. The under-head shoulder interlocks with the circular hole in the plate, while the edgeless head geometry reduces stress concentration and adds strength, guaranteeing excellent static performance.

The increased inner core diameter on the Ø8, Ø10 and Ø12 screws raises performance in thick plate applications, achieving a strength increase of more than 15% in steel-to-timber connections. The 3 THORNS tip reduces minimum installation distances, so more screws fit in less space.

  • Interlocking under-head shoulder for high static performance on plates
  • Increased core diameter for thick plate connections
  • 3 THORNS tip reduces minimum spacing and installation effort
  • Ideal for multi-storey timber buildings and large custom plates
  • Suitable for solid timber, glulam, CLT, LVL and high density woods
  • ETA-11/0030 certified
  • Drive: TX40 (Ø8, Ø10), TX50 (Ø12), bit included
  • Material: electrogalvanised carbon steel
  • Service class SC1 to SC2, atmospheric corrosivity C1 to C2
  • Install with a torque-controlled screwdriver, impact drivers not permitted

Price shown is per box. Select diameter and length to see pack quantity and price.

HBS PLATE | Product video

Material
Carbon steel
Coating
Electrogalvanised zinc
Head type
Pan head
Drive
TX (Torx)
Product range
HBS PLATE
Type
Timber screw
Service class
SC1-SC2
Brand
Rothoblaas
Supplied
Per box (see pack quantity)
Steel connector platesMass timber constructionConnector fasteningTimber-to-metal platesPan head fixing
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
8 mm / 60 mmHBSPL860 Box of 100 £18.66per box Supplied to order
Boxes
8 mm / 80 mmHBSPL880 Box of 100 £23.95per box Supplied to order
Boxes
8 mm / 100 mmHBSPL8100 Box of 100 £31.77per box Supplied to order
Boxes
8 mm / 120 mmHBSPL8120 Box of 100 £34.98per box Supplied to order
Boxes
8 mm / 140 mmHBSPL8140 Box of 100 £42.99per box Supplied to order
Boxes
8 mm / 160 mmHBSPL8160 Box of 100 £45.63per box Supplied to order
Boxes
10 mm / 80 mmHBSPL1080 Box of 50 £21.92per box Supplied to order
Boxes
10 mm / 100 mmHBSPL10100 Box of 50 £24.96per box Supplied to order
Boxes
10 mm / 120 mmHBSPL10120 Box of 50 £27.58per box Supplied to order
Boxes
10 mm / 140 mmHBSPL10140 Box of 50 £34.55per box Supplied to order
Boxes
10 mm / 160 mmHBSPL10160 Box of 50 £45.58per box Supplied to order
Boxes
10 mm / 180 mmHBSPL10180 Box of 50 £52.30per box Supplied to order
Boxes
12 mm / 100 mmHBSPL12100 Box of 25 £24.59per box Supplied to order
Boxes
12 mm / 120 mmHBSPL12120 Box of 25 £31.80per box Supplied to order
Boxes
12 mm / 140 mmHBSPL12140 Box of 25 £31.07per box Supplied to order
Boxes
12 mm / 160 mmHBSPL12160 Box of 25 £34.78per box Supplied to order
Boxes
12 mm / 180 mmHBSPL12180 Box of 25 £37.91per box Supplied to order
Boxes
12 mm / 200 mmHBSPL12200 Box of 25 £42.11per box Supplied to order
Boxes
