Home / Shop/ LBS EVO · Round head screw for plates, C4
Rothoblaas LBS EVO · Round head screw for plates, C4
Supplied to order

Rothoblaas

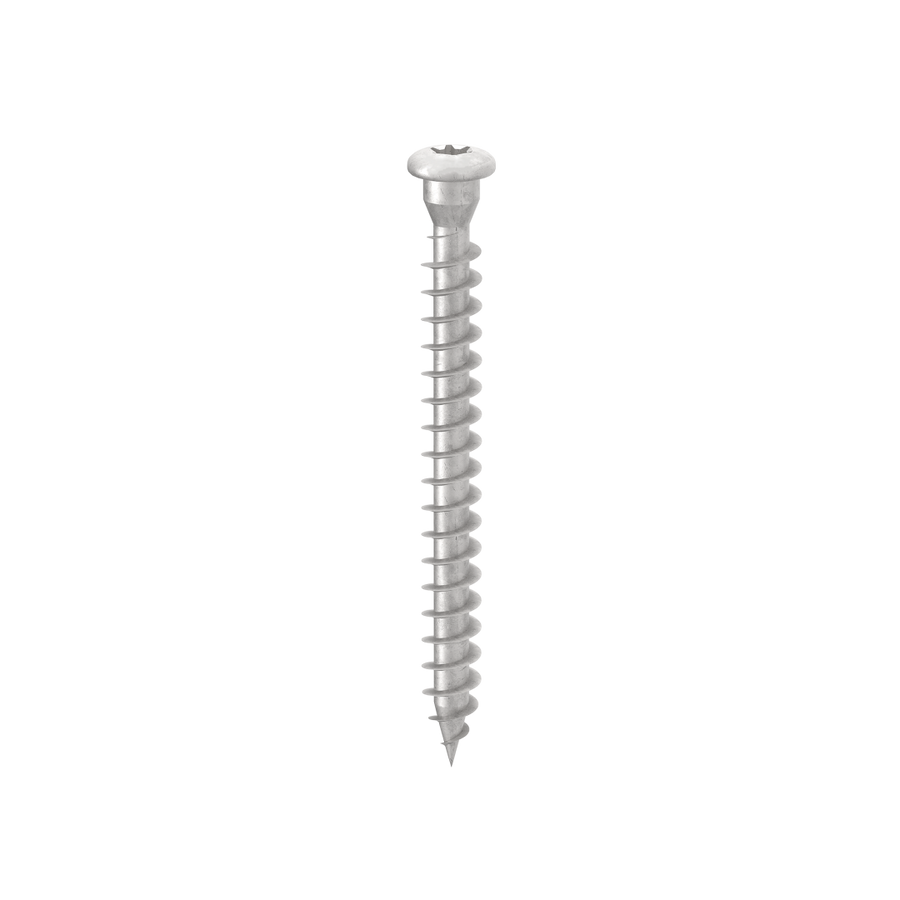

LBS EVO · Round head screw for plates, C4

Product code: LBSEVO540
£57.72 ex VAT · 500 per box
£69.26 inc VAT
£0.12 per unit
Total: £57.72 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

Round head screw for fastening perforated steel plates to timber in outdoor and corrosive environments. The cylindrical shoulder interlocks with the plate hole, guaranteeing excellent static performance in steel-to-timber connections.

The C4 EVO coating was tested to atmospheric corrosion class C4 by RISE (Research Institutes of Sweden), making it suitable for coastal and industrial exposure as well as ACQ and CCA treated timber. Connections can be calculated to Eurocode 5 for thick steel-timber plate connections, even with thin plates.

  • C4 EVO coating for coastal, industrial and treated-timber applications
  • Suitable for acidic woods (pH above 4) such as spruce, larch, pine, ash and birch
  • Certified for CLT, glulam, LVL and high density woods
  • The Ø7mm version suits custom-designed connections in steel structures
  • ETA-11/0030 certified, UKCA marked (UKTA-0836 22/6195)
  • Drive: TX20 (Ø5mm), TX30 (Ø7mm), bit included
  • Material: carbon steel with C4 EVO coating
  • Service class SC1 to SC3, atmospheric corrosivity C1 to C4

Price shown is per box. Select diameter and length to see pack quantity and price.

Material
Carbon steel
Coating
C4 high-corrosion coating
Head type
Round head
Drive
TX (Torx)
Product range
LBS EVO
Type
Timber screw
Brand
Rothoblaas
Supplied
Per box (see pack quantity)
Timber-to-metal platesConnector fasteningRound head fixingOutdoor & exposed useCorrosive environmentsMass timber construction
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
5 mm / 40 mmLBSEVO540 Box of 500 £57.72per box Supplied to order
Boxes
5 mm / 50 mmLBSEVO550 Box of 200 £29.01per box In stock
Boxes
5 mm / 60 mmLBSEVO560 Box of 200 £31.43per box Supplied to order
Boxes
5 mm / 70 mmLBSEVO570 Box of 200 £35.12per box Supplied to order
Boxes
7 mm / 80 mmLBSEVO780 Box of 100 £23.04per box Supplied to order
Boxes
7 mm / 100 mmLBSEVO7100 Box of 100 £27.80per box Supplied to order
Boxes
£0.00 ex VATChoose quantities above
