LBS · Round head screw for plates
Product code: LBS525
£45.40
ex VAT
· 500 per box
£54.48 inc VAT
£0.09 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
Returns accepted within 30 days
Unopened stock only · Contact us first

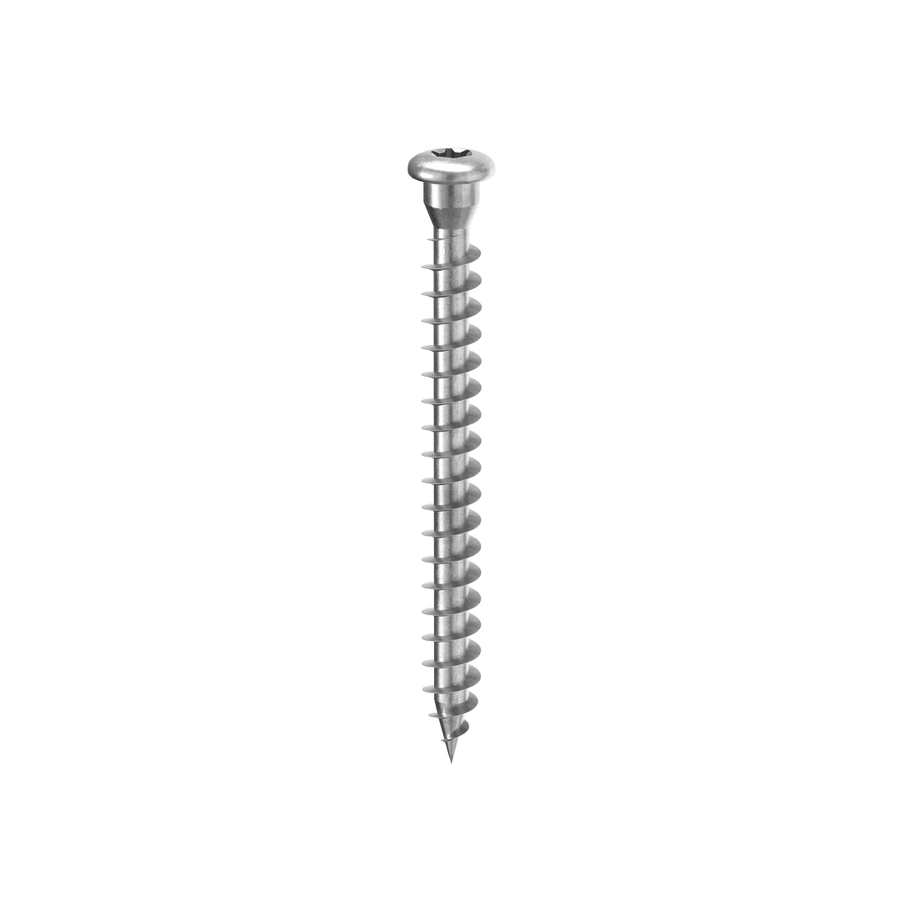

Round head screw with a cylindrical shoulder designed for fastening perforated steel plates to timber. The shoulder achieves an interlocking effect with the hole in the plate, guaranteeing excellent static performance in steel-to-timber connections.
These can be calculated to Eurocode 5 for thick steel-timber plate connections, even with thin metal elements, with excellent shear strength values. Ductile behaviour is proven by SEISMIC-REV cyclic testing to EN 12512.
- Cylindrical shoulder interlocks with the plate hole for high shear performance
- Tested and certified for CLT, glulam, LVL, OSB and Beech LVL
- LBS5 up to 40mm approved without pre-drilling on Beech LVL
- ETA-11/0030 certified, UKCA marked (UKTA-0836 22/6195)
- Drive: TX20 (Ø5mm), TX30 (Ø7mm), bit included
- Material: electrogalvanised carbon steel
- Service class SC1 to SC2, atmospheric corrosivity C1 to C2
Price shown is per box. Select diameter and length to see pack quantity and price.
Material
Carbon steel
Coating
Electrogalvanised zinc
Head type
Round head
Drive
TX (Torx)
Product range
LBS
Type
Timber screw
Brand
Rothoblaas
Supplied
Per box (see pack quantity)
Timber-to-metal platesConnector fasteningRound head fixingStructural connectionsSteelwork base fixingMass timber constructionShear connectionsSeismic detailing
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the LBS · Round head screw for plates range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Diameter | Length | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|---|
| LBS525 | 5 mm | 25 mm | 500 pcs | £45.40 | To order | |
| LBS540 | 5 mm | 40 mm | 500 pcs | £52.20 | To order | |
| LBS550 | 5 mm | 50 mm | 200 pcs | £29.20 | To order | |
| LBS560 | 5 mm | 60 mm | 200 pcs | £31.76 | To order | |
| LBS570 | 5 mm | 70 mm | 200 pcs | £35.32 | To order | |
| LBS760 | 7 mm | 60 mm | 100 pcs | £20.86 | In stock | |
| LBS780 | 7 mm | 80 mm | 100 pcs | £23.48 | To order | |
| LBS7100 | 7 mm | 100 mm | 100 pcs | £28.22 | To order | |
