Home / Shop/ NINO · Universal angle bracket for shear and tensile loads
Rothoblaas NINO · Universal angle bracket for shear and tensile loads
Supplied to order

Rothoblaas

NINO · Universal angle bracket for shear and tensile loads

Product code: NINO100100
£2.62 ex VAT · 1 per box
£3.14 inc VAT
£2.62 per unit
Total: £2.62 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

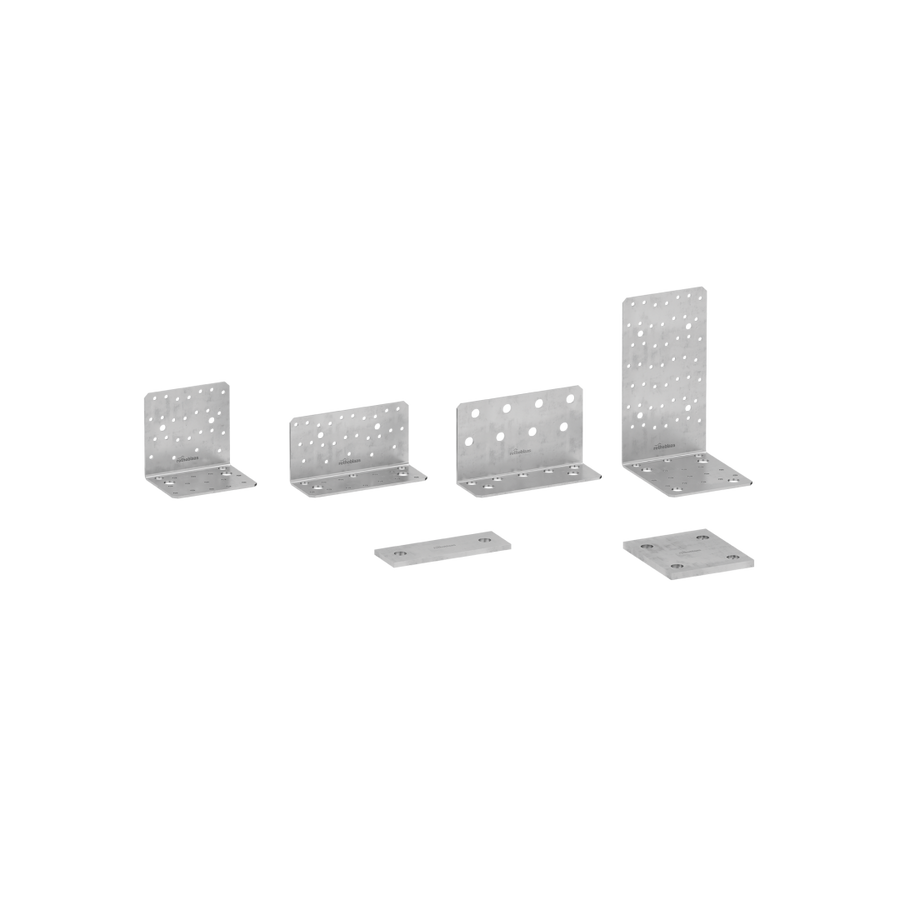

NINO is a universal angle bracket for shear and tensile joints in CLT and timber frame walls under small to medium stress. Four models cover a wide range of timber-to-timber, timber-to-concrete and timber-to-steel fastening requirements.

  • NINO100100, NINO15080 and NINO100200: S250GD steel with Z275 zinc coating
  • NINO15080S: S350GD steel with Z275 coating, fastened with HBS PLATE Ø8 screws
  • Optional inclined VGS screws and NINO washers raise capacity significantly; ETA-certified XYLOFON acoustic profiles are available
  • Optimised partial nailing allows installation over a base plate or concrete kerb up to 120 mm high, including thin frame walls from 38 mm
  • Timber side fastened with LBA Ø4 nails, LBS Ø5, HBS PLATE Ø8 or VGS Ø9 screws; concrete side with AB1, SKR, VIN-FIX, HYB-FIX or EPO-FIX anchors
  • Service class SC1 and SC2; ETA-22/0089; patented and design registered

Price shown is per piece. Select model to see price.

Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
NINO
Type
Angle bracket
Brand
Rothoblaas
Supplied
Per unit
Angle brackets & hangersShear connectionsTensile connectionsCLT wallsTimber frame wallsTimber-to-timberTimber-to-concreteConnector fasteningMass timber constructionPost anchoringJoist hangers & brackets
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
NINO100100 — 104×100×2.5mmNINO100100 Each £2.62each Supplied to order
Items
NINO15080 — 146×77×2.5mmNINO15080 Each £4.28each Supplied to order
Items
NINO15080S — 156×94×55mmNINO15080S Each £4.91each Supplied to order
Items
NINO100200 — 104×197×3mmNINO100200 Each £8.27each Supplied to order
Items
£0.00 ex VATChoose quantities above
