Home / Shop/ VGS · Fully threaded screw

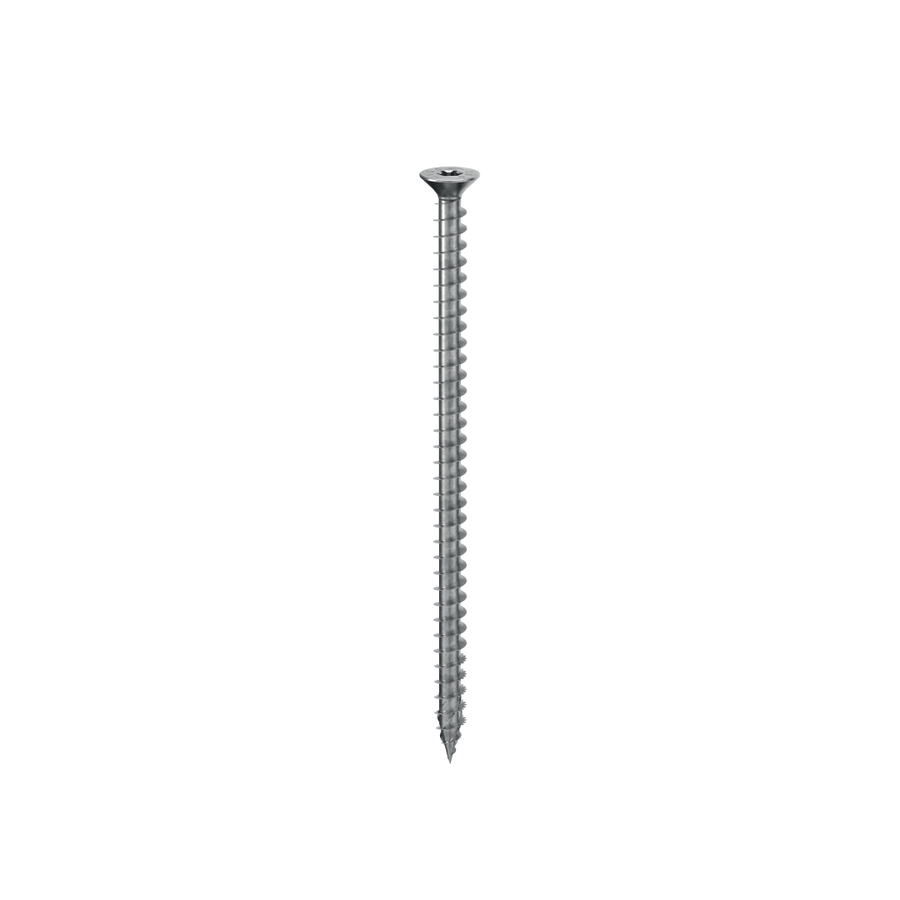

Rothoblaas VGS · Fully threaded screw
Supplied to order

Rothoblaas

VGS · Fully threaded screw

Product code: VGS9100
£28.54 ex VAT · 50 per box
£34.25 inc VAT
£0.57 per unit
Total: £28.54 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

Fully threaded structural screw with a deep thread and high strength steel for excellent tensile and sliding performance. Approved for structural applications stressed in any direction relative to the grain, from 0 to 90 degrees.

The 3 THORNS tip reduces minimum installation distances, so more screws fit in less space. Certified for timber to ETA-11/0030 and for timber-to-concrete via the TC FUSION system to ETA-22/0806, and can be used on steel plates with VGU and HUS washers.

  • Fully threaded for reinforcement, tension, compression and sliding connections
  • 3 THORNS tip reduces minimum spacing and installation effort
  • Countersunk head up to 600mm, hexagonal head above, ideal for plates and concealed reinforcement
  • Suitable for solid timber, glulam, CLT, LVL and high density woods
  • ETA-11/0030 and ETA-22/0806 (TC FUSION) certified, UKCA marked (UKTA-0836 22/6195)
  • Drive: TX40 (Ø9), TX50 (Ø11)
  • Material: electrogalvanised carbon steel
  • Service class SC1 to SC2, atmospheric corrosivity C1 to C2
  • Install with a torque-controlled screwdriver, impact drivers not permitted

Price shown is per box. Select diameter and length to see pack quantity and price.

Material
Carbon steel
Coating
Electrogalvanised zinc
Head type
Countersunk head
Drive
Hex
Product range
VGS
Type
Timber screw
Brand
Rothoblaas
Supplied
Per box (see pack quantity)
Structural connectionsTimber reinforcementTensile loadsShear loadsHigh pull-out strengthWithdrawal-loaded jointsTimber-to-timberMass timber constructionTimber-to-concreteHeavy structural connectionsTensile connectionsConnector fastening
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
9 mm / 100 mmVGS9100 Box of 50 £28.54per box Supplied to order
Boxes
9 mm / 120 mmVGS9120 Box of 50 £28.13per box Supplied to order
Boxes
9 mm / 140 mmVGS9140 Box of 50 £34.44per box Supplied to order
Boxes
9 mm / 160 mmVGS9160 Box of 50 £39.06per box In stock
Boxes
9 mm / 180 mmVGS9180 Box of 50 £47.78per box Supplied to order
Boxes
9 mm / 200 mmVGS9200 Box of 50 £56.52per box Supplied to order
Boxes
9 mm / 220 mmVGS9220 Box of 50 £68.16per box Supplied to order
Boxes
9 mm / 240 mmVGS9240 Box of 50 £80.28per box Supplied to order
Boxes
9 mm / 260 mmVGS9260 Box of 50 £97.60per box Supplied to order
Boxes
9 mm / 280 mmVGS9280 Box of 50 £96.28per box Supplied to order
Boxes
9 mm / 300 mmVGS9300 Box of 50 £108.16per box Supplied to order
Boxes
9 mm / 320 mmVGS9320 Box of 50 £117.63per box In stock
Boxes
9 mm / 340 mmVGS9340 Box of 50 £125.85per box Supplied to order
Boxes
9 mm / 360 mmVGS9360 Box of 50 £134.35per box Supplied to order
Boxes
9 mm / 380 mmVGS9380 Box of 50 £143.08per box Supplied to order
Boxes
9 mm / 400 mmVGS9400 Box of 50 £151.33per box Supplied to order
Boxes
9 mm / 440 mmVGS9440 Box of 25 £103.79per box Supplied to order
Boxes
9 mm / 480 mmVGS9480 Box of 25 £130.11per box Supplied to order
Boxes
9 mm / 520 mmVGS9520 Box of 25 £149.75per box Supplied to order
Boxes
9 mm / 560 mmVGS9560 Box of 25 £166.36per box Supplied to order
Boxes
9 mm / 600 mmVGS9600 Box of 25 £198.60per box Supplied to order
Boxes
11 mm / 80 mmVGS1180 Box of 25 £14.68per box Supplied to order
Boxes
11 mm / 100 mmVGS11100 Box of 25 £19.28per box Supplied to order
Boxes
11 mm / 125 mmVGS11125 Box of 25 £24.00per box Supplied to order
Boxes
11 mm / 150 mmVGS11150 Box of 25 £28.74per box Supplied to order
Boxes
11 mm / 175 mmVGS11175 Box of 25 £36.02per box Supplied to order
Boxes
11 mm / 200 mmVGS11200 Box of 25 £43.17per box Supplied to order
Boxes
11 mm / 225 mmVGS11225 Box of 25 £52.02per box Supplied to order
Boxes
11 mm / 250 mmVGS11250 Box of 25 £60.51per box Supplied to order
Boxes
11 mm / 275 mmVGS11275 Box of 25 £71.18per box Supplied to order
Boxes
11 mm / 300 mmVGS11300 Box of 25 £81.61per box Supplied to order
Boxes
11 mm / 325 mmVGS11325 Box of 25 £87.56per box Supplied to order
Boxes
11 mm / 350 mmVGS11350 Box of 25 £103.20per box Supplied to order
Boxes
11 mm / 375 mmVGS11375 Box of 25 £104.28per box Supplied to order
Boxes
11 mm / 400 mmVGS11400 Box of 25 £114.83per box Supplied to order
Boxes
11 mm / 425 mmVGS11425 Box of 25 £123.68per box Supplied to order
Boxes
11 mm / 450 mmVGS11450 Box of 25 £132.37per box Supplied to order
Boxes
11 mm / 475 mmVGS11475 Box of 25 £143.68per box Supplied to order
Boxes
11 mm / 500 mmVGS11500 Box of 25 £180.87per box Supplied to order
Boxes
11 mm / 525 mmVGS11525 Box of 25 £186.13per box Supplied to order
Boxes
11 mm / 550 mmVGS11550 Box of 25 £210.98per box Supplied to order
Boxes
11 mm / 575 mmVGS11575 Box of 25 £242.10per box Supplied to order
Boxes
11 mm / 600 mmVGS11600 Box of 25 £261.90per box Supplied to order
Boxes
11 mm / 650 mmVGS11650 Box of 25 £515.52per box Supplied to order
Boxes
11 mm / 700 mmVGS11700 Box of 25 £534.92per box Supplied to order
Boxes
11 mm / 750 mmVGS11750 Box of 25 £552.90per box Supplied to order
Boxes
11 mm / 800 mmVGS11800 Box of 25 £646.47per box Supplied to order
Boxes
11 mm / 850 mmVGS11850 Box of 25 £675.57per box Supplied to order
Boxes
11 mm / 900 mmVGS11900 Box of 25 £729.93per box Supplied to order
Boxes
11 mm / 950 mmVGS11950 Box of 25 £771.15per box Supplied to order
Boxes
11 mm / 1000 mmVGS111000 Box of 25 £826.93per box Supplied to order
Boxes
£0.00 ex VATChoose quantities above

Loading basket...
— —
Go to checkout
£28.54 VGS9100 · ex VAT
Need it faster? Email us before you order. We will check whether we can beat our standard lead time on your order, and what that would cost. info@timbasystems.com
