Rothoblaas BSA · Metal beam hanger with external wings

Supplied to order

RothoblaasHolz Technic

BSA · Metal beam hanger with external wings

Name: BSA · Metal beam hanger with external wings
Brand: Rothoblaas
SKU: BSAS40110

Product code: BSAS40110

£2.40 ex VAT · 1 per box

£2.88 inc VAT

£2.40 per unit

Type: BSAS — Standard

Width B: 40 mm

Height H: 110 mm

Qty (boxes)

Total: £2.40 ex VAT

Need a large quantity? Request a project quote

Not sure this is the right fixing for your connection? Send your drawing → get a spec & quote

Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.

Request this in UK stock →

Delivery sorted in the basket

One clear price · FREE over £500.

FREE delivery over £500

Tracked delivery UK wide.

VAT invoice with every order

Full VAT documentation for your records

14 days to cancel after delivery

Eligible online orders · See returns policy

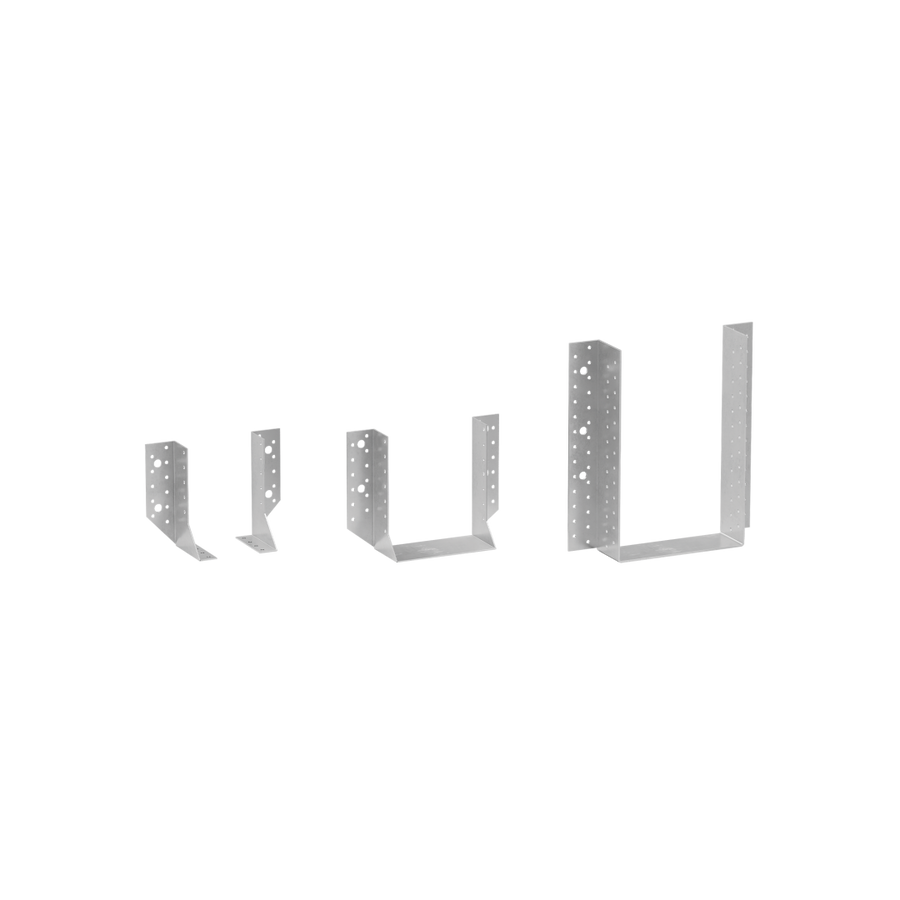

Metal beam hanger with external wings for connecting secondary beams to main beams. Available in three versions: standard (BSAS), 2-piece (BSAD) and large (BSAG), all in one product. Suitable for timber and concrete supporting structures. CE marked.

BSAS · Standard: 2mm thickness, S250/Z275 galvanised steel, CE marked · Sizes B40–B140
BSAD · 2-piece: 2mm thickness, supplied as 2 pieces · B25mm (without CE marking)
BSAG · Large: 2.5mm thickness for heavy beam applications · Sizes B100–B200
Allows beam rotation: simultaneous vertical and lateral force application
Suitable for OSB and I-Joist applications
Fastened with LBA nails (included separately)
Service class: SC2

Select type, width (B) and height (H) to find the right hanger. Sold individually.

Material

Carbon steel

Coating

Galvanised / zinc coated

Product range

BSA

Type

Timber connector

Service class

SC1-SC2

Brand

Rothoblaas

Supplied

Per unit

Joist hangingTimber-to-timberExternal-wing fixingFloor framingRoof framingStructural connectionsBeam-to-beamFloor & roof framingJoist hangers & brackets

Technical datasheet

PDF · Opens in new tab · Download from viewer

View datasheet ↗

Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator →

All sizes in the BSA · Metal beam hanger with external wings range

Search by code or size, set quantities, and add any sizes straight to your basket.

Code	Type	Width B	Height H	Pack	Price ex VAT	Stock
BSAS40110	BSAS — Standard	40 mm	110 mm	1 pcs	£2.40	To order
BSAS46117	BSAS — Standard	46 mm	117 mm	1 pcs	£2.60	To order
BSAS46137	BSAS — Standard	46 mm	137 mm	1 pcs	£2.90	To order
BSAS46207	BSAS — Standard	46 mm	207 mm	1 pcs	£4.13	To order
BSAS5070	BSAS — Standard	50 mm	70 mm	1 pcs	£3.22	To order
BSAS51105	BSAS — Standard	51 mm	105 mm	1 pcs	£3.22	To order
BSAS51135	BSAS — Standard	51 mm	135 mm	1 pcs	£2.83	To order
BSAS60100	BSAS — Standard	60 mm	100 mm	1 pcs	£4.62	To order
BSAS64128	BSAS — Standard	64 mm	128 mm	1 pcs	£2.79	To order
BSAS64158	BSAS — Standard	63 mm	158 mm	1 pcs	£3.87	To order
BSAS70125	BSAS — Standard	70 mm	125 mm	1 pcs	£3.08	To order
BSAS70155	BSAS — Standard	70 mm	155 mm	1 pcs	£4.13	To order
BSAS7690	BSAS — Standard	76 mm	90 mm	1 pcs	£3.57	To order
BSAS76152	BSAS — Standard	76 mm	152 mm	1 pcs	£2.75	To order
BSAS80120	BSAS — Standard	80 mm	120 mm	1 pcs	£5.68	To order
BSAS80140	BSAS — Standard	80 mm	140 mm	1 pcs	£3.71	To order
BSAS80150	BSAS — Standard	80 mm	150 mm	1 pcs	£3.85	To order
BSAS80180	BSAS — Standard	80 mm	180 mm	1 pcs	£3.99	To order
BSAS80210	BSAS — Standard	80 mm	210 mm	1 pcs	£4.11	To order
BSAS90145	BSAS — Standard	90 mm	145 mm	1 pcs	£4.46	To order
BSAS92184	BSAS — Standard	92 mm	184 mm	1 pcs	£4.06	To order
BSAS10090	BSAS — Standard	100 mm	90 mm	1 pcs	£8.32	To order
BSAS100120	BSAS — Standard	100 mm	120 mm	1 pcs	£3.15	To order
BSAS100140	BSAS — Standard	100 mm	140 mm	1 pcs	£7.07	To order
BSAS100160	BSAS — Standard	100 mm	160 mm	1 pcs	£5.01	To order
BSAS100170	BSAS — Standard	100 mm	170 mm	1 pcs	£4.87	To order
BSAS100200	BSAS — Standard	100 mm	200 mm	1 pcs	£4.11	To order
BSAS120120	BSAS — Standard	120 mm	120 mm	1 pcs	£3.81	To order
BSAS120160	BSAS — Standard	120 mm	160 mm	1 pcs	£8.40	To order
BSAS120190	BSAS — Standard	120 mm	190 mm	1 pcs	£5.26	To order
BSAS140140	BSAS — Standard	140 mm	139 mm	1 pcs	£4.98	To order
BSAS140160	BSAS — Standard	140 mm	160 mm	1 pcs	£6.70	To order
BSAS140180	BSAS — Standard	140 mm	180 mm	1 pcs	£3.16	To order
BSAD25100	BSAD — 2-piece	25 mm	100 mm	1 pcs	£5.03	To order
BSAD25140	BSAD — 2-piece	25 mm	140 mm	1 pcs	£6.63	To order
BSAD25180	BSAD — 2-piece	25 mm	180 mm	1 pcs	£8.09	To order
BSAG100240	BSAG — Large	100 mm	240 mm	1 pcs	£16.43	To order
BSAG100280	BSAG — Large	100 mm	280 mm	1 pcs	£18.56	To order
BSAG120240	BSAG — Large	120 mm	240 mm	1 pcs	£15.68	To order
BSAG120280	BSAG — Large	120 mm	280 mm	1 pcs	£19.25	To order
BSAG140240	BSAG — Large	140 mm	240 mm	1 pcs	£16.43	To order
BSAG140280	BSAG — Large	140 mm	280 mm	1 pcs	£20.91	To order
BSAG160160	BSAG — Large	160 mm	160 mm	1 pcs	£13.55	To order
BSAG160200	BSAG — Large	160 mm	200 mm	1 pcs	£9.60	To order
BSAG160240	BSAG — Large	160 mm	240 mm	1 pcs	£19.79	To order
BSAG160280	BSAG — Large	160 mm	280 mm	1 pcs	£20.16	To order
BSAG160320	BSAG — Large	160 mm	320 mm	1 pcs	£21.65	To order
BSAG180220	BSAG — Large	180 mm	220 mm	1 pcs	£11.68	To order
BSAG180280	BSAG — Large	180 mm	280 mm	1 pcs	£22.35	To order
BSAG200200	BSAG — Large	200 mm	200 mm	1 pcs	£18.19	To order
BSAG200240	BSAG — Large	200 mm	240 mm	1 pcs	£20.85	To order
