Supplied to order
Rothoblaas
VGS · Screws for UV T connectors
Product code: VGS6100
£22.99
ex VAT
· 100 per box
£27.59 inc VAT
£0.23 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy
Rothoblaas VGS 6 mm screws for the inclined fastening holes in UV T concealed timber connectors. Choose 100 mm or 160 mm to suit the connection specification.
- For UVT4085, UVT60115, UVT60160 and UVT60215 connectors
- 6 mm diameter with TX30 drive
- VGS6100: 100 mm length, 88 mm threaded length
- VGS6160: 160 mm length, 148 mm threaded length
- 100 screws per box
These screws form the 45° fastening in the UV T connection. LBS screws are used separately for the 90° fastening. The smaller UVT3070 uses HBS 4 mm screws instead.
Use the UV T connector specification and technical datasheet to select screw length and quantity.

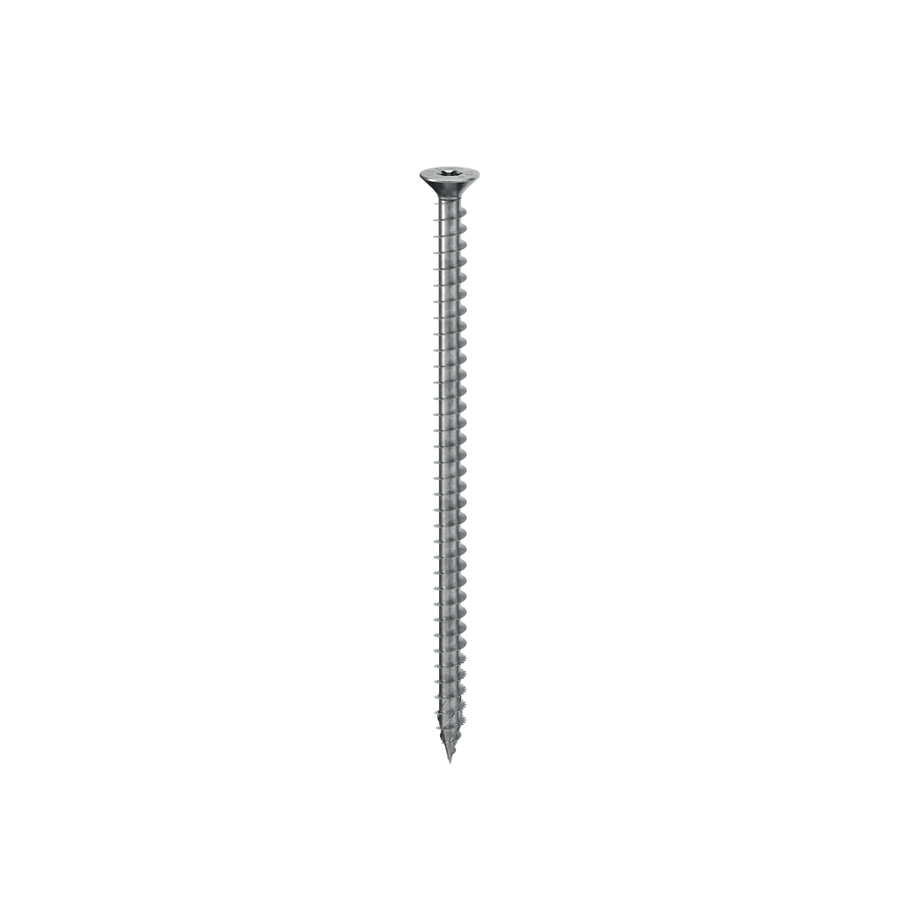

Price shown is per box of 100 screws, excluding VAT. Connector and LBS screws sold separately. Product photo shows the VGS screw range.
Product range
VGS for UV T
Diameter
6 mm
Lengths
100 mm / 160 mm
Threaded lengths
88 mm / 148 mm
Drive
TX30
Installation
45° fastening in UV T connectors
Compatible models
UVT4085, UVT60115, UVT60160, UVT60215
Brand
Rothoblaas
Supplied
100 screws per box
UV T connector fasteningTimber-to-timberConcealed beam connections
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the VGS · Screws for UV T connectors range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Diameter | Length | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|---|
| VGS6100 | 6 mm | 100 mm | 100 pcs | £22.99 | To order | |
| VGS6160 | 6 mm | 160 mm | 100 pcs | £43.57 | To order | |
| No sizes match your search. | ||||||
