In stock
RothoblaasHolz Technic

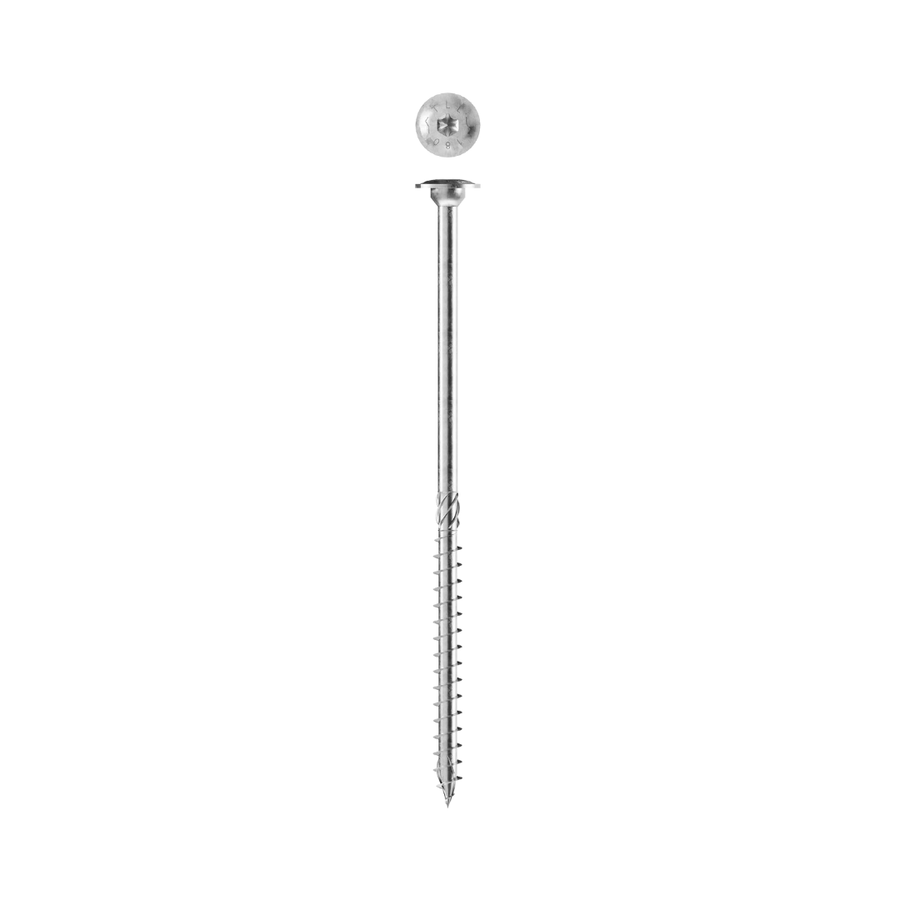

TLL · Flange-head timber screw
Product code: TLL660
£7.63
ex VAT
· 100 per box
£9.16 inc VAT
£0.08 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy
Universal flange-head screw for timber frame, CLT, LVL and solid timber structures. The integrated flange head acts as a washer providing high tensile strength, ideal in the presence of wind or variations in timber dimensions.
Features the 3 Thorns Tip for fast installation with minimal effort, reduced driving force and greater precision.
- ETA certified · UKCA marked
- Certified for structural applications stressed in any direction relative to the fibre
- Suitable for CLT and high density woods such as LVL
- Drive: TX30 (6mm) · TX40 (8mm) · TX50 (10mm)
- Material: Carbon steel, zinc electro-plated
- Service class: SC2
Price shown is per box. Select diameter and length to see pack quantity and price.
Material
Carbon steel
Coating
Galvanised / zinc coated
Head type
Flange head
Drive
TX (Torx)
Product range
TLL
Type
Timber screw
Service class
SC1-SC2
Brand
Rothoblaas
Supplied
Per box (see pack quantity)
Timber-to-timberConnector fasteningHigh pull-out strengthJoist hangers & bracketsFloor & roof framingStructural connectionsMass timber constructionTensile connectionsFlange head fixing
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the TLL · Flange-head timber screw range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Diameter | Length | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|---|
| TLL660 | 6 mm | 60 mm | 100 pcs | £7.63 | In stock | |
| TLL670 | 6 mm | 70 mm | 100 pcs | £9.33 | In stock | |
| TLL680 | 6 mm | 80 mm | 100 pcs | £9.71 | In stock | |
| TLL6100 | 6 mm | 100 mm | 100 pcs | £12.59 | In stock | |
| TLL6120 | 6 mm | 120 mm | 100 pcs | £15.04 | In stock | |
| TLL6140 | 6 mm | 140 mm | 100 pcs | £18.61 | In stock | |
| TLL6160 | 6 mm | 160 mm | 100 pcs | £26.77 | In stock | |
| TLL6180 | 6 mm | 180 mm | 100 pcs | £31.31 | In stock | |
| TLL6200 | 6 mm | 200 mm | 100 pcs | £38.61 | In stock | |
| TLL860 | 8 mm | 60 mm | 100 pcs | £14.83 | In stock | |
| TLL880 | 8 mm | 80 mm | 50 pcs | £8.46 | In stock | |
| TLL8100 | 8 mm | 100 mm | 50 pcs | £11.46 | In stock | |
| TLL8120 | 8 mm | 120 mm | 50 pcs | £12.58 | In stock | |
| TLL8140 | 8 mm | 140 mm | 50 pcs | £14.67 | In stock | |
| TLL8160 | 8 mm | 160 mm | 50 pcs | £16.24 | In stock | |
| TLL8180 | 8 mm | 180 mm | 50 pcs | £20.72 | In stock | |
| TLL8200 | 8 mm | 200 mm | 50 pcs | £24.40 | In stock | |
| TLL8220 | 8 mm | 220 mm | 50 pcs | £32.27 | In stock | |
| TLL8240 | 8 mm | 240 mm | 50 pcs | £37.34 | In stock | |
| TLL8260 | 8 mm | 260 mm | 50 pcs | £41.60 | To order | |
| TLL8280 | 8 mm | 280 mm | 50 pcs | £45.60 | In stock | |
| TLL8300 | 8 mm | 300 mm | 50 pcs | £49.60 | In stock | |
| TLL8320 | 8 mm | 320 mm | 50 pcs | £56.27 | In stock | |
| TLL8340 | 8 mm | 340 mm | 50 pcs | £60.27 | In stock | |
| TLL8360 | 8 mm | 360 mm | 50 pcs | £67.20 | To order | |
| TLL8380 | 8 mm | 380 mm | 50 pcs | £73.87 | To order | |
| TLL8400 | 8 mm | 400 mm | 50 pcs | £77.33 | To order | |
| TLL10160 | 10 mm | 160 mm | 50 pcs | £33.06 | To order | |
| TLL10200 | 10 mm | 200 mm | 50 pcs | £44.80 | To order | |
| TLL10240 | 10 mm | 240 mm | 50 pcs | £60.00 | To order | |
| TLL10280 | 10 mm | 280 mm | 50 pcs | £72.27 | To order | |
| TLL10320 | 10 mm | 320 mm | 50 pcs | £88.00 | To order | |
| TLL10360 | 10 mm | 360 mm | 50 pcs | £100.80 | To order | |
| TLL10400 | 10 mm | 400 mm | 50 pcs | £113.34 | To order | |
| No sizes match your search. | ||||||
