Timber-to-concrete shear plate — TITAN PLATE C

Product code: TCP200
£9.72 ex VAT — 1 per box
£11.66 inc VAT
£9.72 per unit
Size: TCP200 — 200×214×3mm
Qty (boxes)
Total: £9.72 ex VAT
Need a large quantity? Request a project quote
Want this kept in UK stock for fast delivery? Tell us — we stock more of what customers ask for. No obligation to buy; we'll just let you know when it's available next-day.
Request this in UK stock →
✓
In stock: ships in 1–2 working days
From UK stock. Not in stock? Ordered direct from Italy, usually 5–7 days.
🚚
Free UK delivery over £250
Under £250 — flat £15. Need it by a set date? Message us before ordering.
🧾
VAT invoice sent automatically
PDF emailed on order confirmation
↩
Returns accepted within 30 days
Unopened stock only · Contact us first

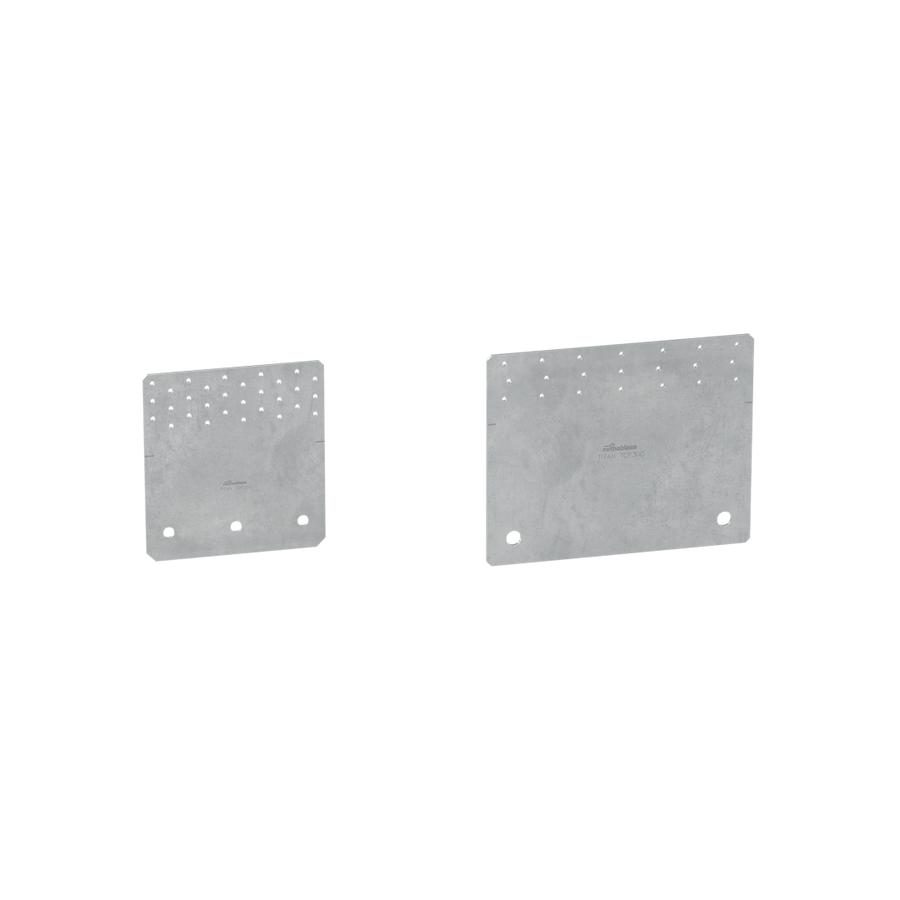

TITAN PLATE C is a flat plate for shear connections between timber walls and concrete, masonry or steel substructures. It is ideal for walls aligned to the concrete edge and for continuous shear connections when adding storeys.

  • Connects CLT and light timber frame walls to the supporting structure
  • Can be fully or partially nailed or screwed; pre-calculated partial patterns allow installation over bedding grout
  • TCP200: DX51D steel with Z275 zinc coating, 3 mm thick
  • TCP300: S355 steel with Fe/Zn12c coating, 4 mm thick, optimised for CLT
  • Timber side fastened with LBA Ø4 nails or LBS Ø5 screws; concrete side with VIN-FIX, HYB-FIX, EPO-FIX, SKR or AB1 anchors
  • CE marked to EN 14545; screw values to ETA-11/0030; service class SC1 and SC2

Price shown is per piece. Select size to see price.

Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
TITAN PLATE C
Type
Connector plate
Brand
Rothoblaas
Supplied
Per unit
Connector plateShear connectionsTimber-to-concreteCLT wallsMass timber constructionStructural connectionsTimber frame wallsCorrosive environmentsConnector plate connections

All sizes in the TITAN PLATE C range

Search by code or size, set quantities, and add any sizes straight to your basket.
CodeSizePack Price ex VAT
TCP200TCP200 — 200×214×3mm1 pcs £9.72
TCP300TCP300 — 300×240×4mm1 pcs £21.57
