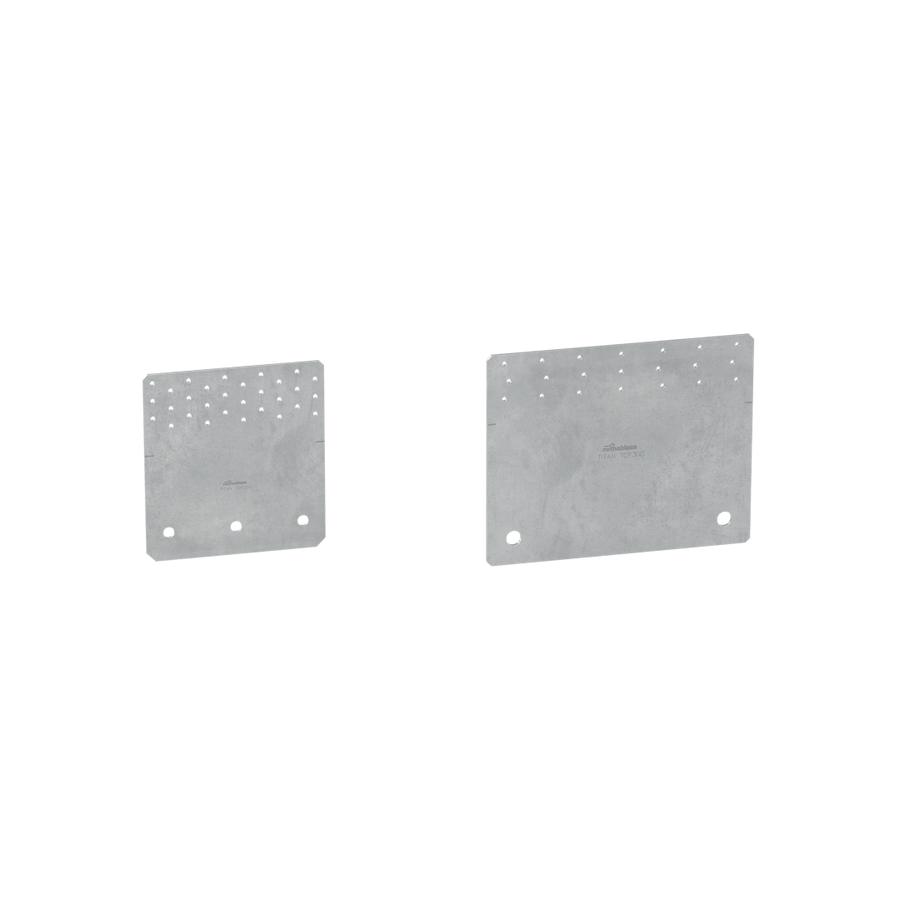

Titan Plate C · Timber-to-concrete shear plate
Product code: TCP200
£8.55
ex VAT
· 1 per box
£10.26 inc VAT
£8.55 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy
Flat shear connection plate for making structural connections between timber walls and reinforced concrete substructures. Available in two sizes: TCP300 with increased thickness and larger format, optimised for CLT with installation possible even in the presence of bedding mortar. UKCA and CE marked to EN 14545. Service Class 2.
- Ideal for shear connections between timber wall and reinforced concrete substructure
- TCP300: increased thickness, optimised for CLT, can be installed with bedding mortar present
- Partially or completely fastened with nails or screws
- TCP200: 3mm DX51D/Z275 galvanised steel · 200×214mm · 30 × Ø5mm + 3 × Ø13mm holes
- TCP300: 4mm S355/Fe/Zn12c galvanised steel · 300×240mm · 21 × Ø5mm + 2 × Ø17mm holes
- Service Class 2 · UKCA & CE marked · EN 14545
Sold individually. Select size to see price.
Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
Titan Plate C
Type
Connector plate
Service class
SC1-SC2
Brand
Rothoblaas
Supplied
Per unit
Timber-to-concreteShear connectionsHigh-load transferCLT floors & wallsMass timber buildingsSeismic detailingTimber frame wallsMass timber constructionHeavy structural connectionsConnector plate connectionsStructural connections
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the Titan Plate C · Timber-to-concrete shear plate range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Size | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|
| TCP200 | TCP200 — 200×214mm · 3mm · DX51D | 1 pcs | £8.55 | To order | |
| TCP300 | TCP300 — 300×240mm · 4mm · S355 | 1 pcs | £18.99 | To order | |
