RothoblaasHolz Technic

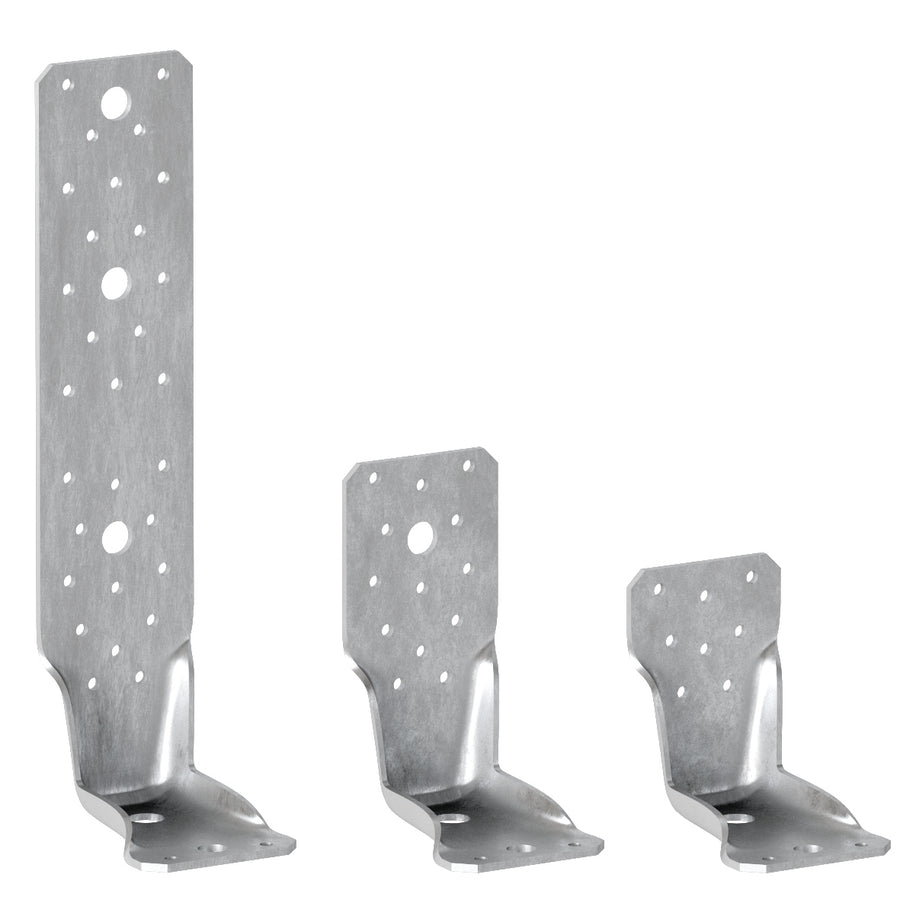

HTKR · Reinforced tensile angle bracket
Product code: HTKR9530
£3.68
ex VAT
· 1 per box
£4.42 inc VAT
£3.68 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy
The classic reinforced tensile angle bracket for CLT and frame wall construction. Reinforced base for fastening by screw on timber or anchor on concrete, optimised hole layout for maximum performance in any situation. Four height options. ETA-22/0089 certified. Service Class 2. CE marked.
- Ideal for tensile fastening of CLT or frame walls
- Reinforced base: fastened by screw on timber or anchor on concrete
- Optimised hole size and layout for any application
- Four heights from 95mm to 287mm
- Material: 3mm S250/Z275 (95mm) or 3.5mm S235/Fe/Zn12c galvanised steel (135–287mm)
- Service Class 2 · ETA-22/0089 · CE marked · Base width: 65×85mm all sizes
Sold individually. Select height to see price.
Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
HTKR
Type
Angle bracket
Service class
SC1-SC2
Brand
Rothoblaas
Supplied
Per unit
Tensile connectionsHold-down fixingCLT wallsTimber frame wallsTimber-to-timberTimber-to-concreteSeismic detailingWall-to-foundationUplift restraintMass timber constructionPost anchoringJoist hangers & brackets
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the HTKR · Reinforced tensile angle bracket range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Size | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|
| HTKR9530 | HTKR9530 — 95mm · 3mm · S250 | 1 pcs | £3.68 | In stock | |
| HTKR13535 | HTKR13535 — 135mm · 3.5mm · S235 | 1 pcs | £5.18 | In stock | |
| WKR21535 | WKR21535 — 215mm · 3.5mm · S235 | 1 pcs | £7.34 | To order | |
| HTKR28535 | HTKR28535 — 287mm · 3.5mm · S235 | 1 pcs | £7.65 | In stock | |
