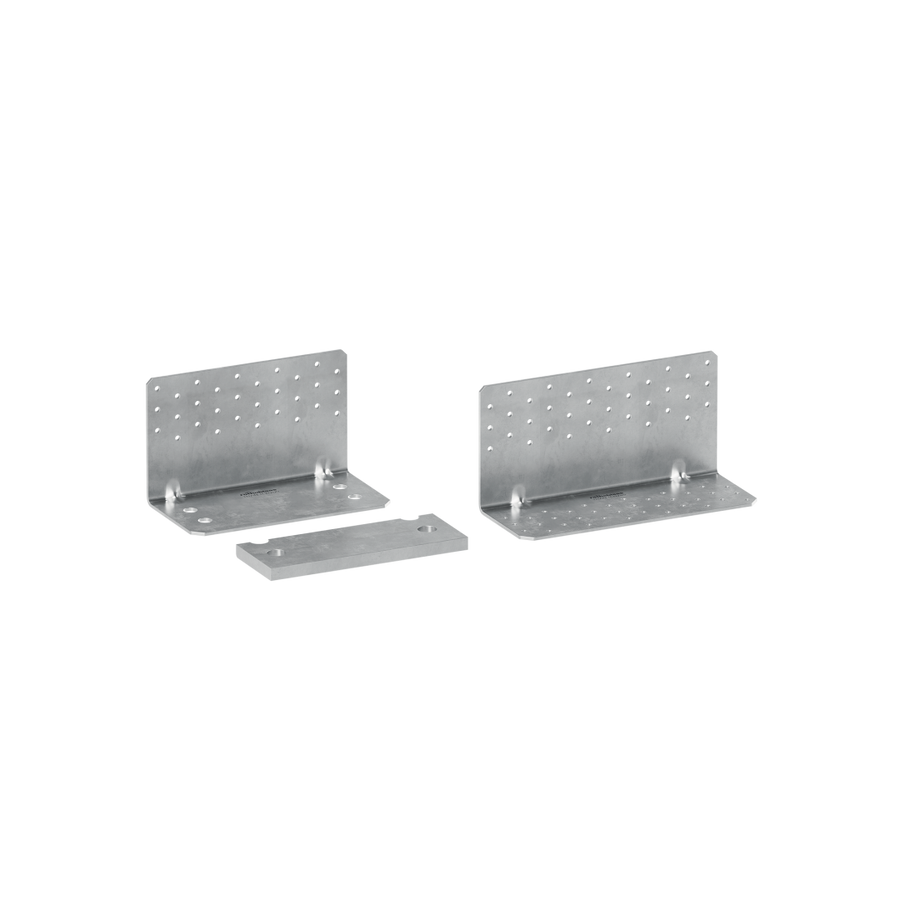

Rothoblaas TITAN N · Angle bracket for shear and tensile forces
Supplied to order

Rothoblaas

TITAN N · Angle bracket for shear and tensile forces

Product code: TCN200
£8.89 ex VAT · 1 per box
£10.67 inc VAT
£8.89 per unit
Total: £8.89 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

TITAN N is a high-performance angle bracket for shear and tensile joints in timber walls, suitable for solid timber, glulam, CLT and LVL panels. It is available in timber-to-concrete (TCN) and timber-to-timber (TTN) configurations.

  • Raised high holes make installation on CLT fast and keep values certified even with partial fastening over bedding grout or a base plate
  • Shear capacity up to 82.6 kN on concrete (with TCW washer) and up to 58.0 kN on timber
  • Tensile capacity up to 69.8 kN characteristic on concrete when used with the TCW washer
  • 120 mm vertical flange height, so the bracket can be integrated into the floor package
  • Fastened with LBA Ø4 nails or LBS Ø5 screws on the timber side; AB1, SKR, VIN-FIX, HYB-FIX or EPO-FIX anchors on the concrete side
  • Material: DX51D steel, Z275 zinc coating
  • Service class SC1 and SC2; ETA-11/0496; UK assessment UKTA-0836-22/6373

TCN200 and TCN240 fasten timber walls to concrete foundations; TTN240 creates timber-to-timber connections, including CLT panel junctions.

Price shown is per piece. Select model to see price.

Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
TITAN N
Type
Angle bracket
Brand
Rothoblaas
Supplied
Per unit
Angle brackets & hangersShear connectionsTensile connectionsCLT wallsTimber frame wallsTimber-to-timberTimber-to-concreteMass timber constructionFloor & roof framingPost anchoringJoist hangers & bracketsCorrosive environments
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
TCN200 — Timber-to-concrete · 200×120×3mmTCN200 Each £8.89each Supplied to order
Items
TCN240 — Timber-to-concrete · 240×120×3mmTCN240 Each £10.66each Supplied to order
Items
TTN240 — Timber-to-timber · 240×120×3mmTTN240 Each £10.56each Supplied to order
Items
£0.00 ex VATChoose quantities above
