Rothoblaas TITAN F · Angle bracket for shear loads
Supplied to order

Rothoblaas

TITAN F · Angle bracket for shear loads

Product code: TCF200
£10.23 ex VAT · 1 per box
£12.28 inc VAT
£10.23 per unit
Total: £10.23 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

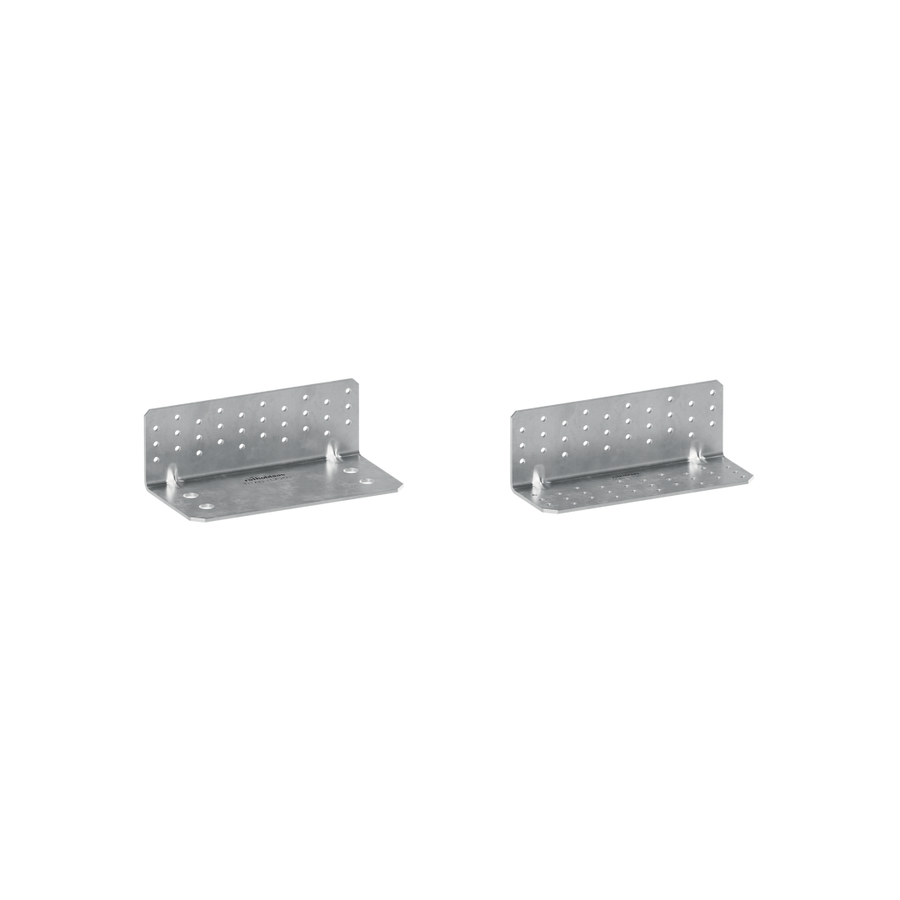

TITAN F is a shear angle bracket optimised for timber frame walls, with lowered holes that allow fastening even on low platform beams from 38 mm. It is available in timber-to-concrete (TCF) and timber-to-timber (TTF) configurations.

  • Shear capacity up to 51.8 kN on concrete and up to 55.1 kN on timber
  • Lowered hole position suits platform beams and frame studs; certified partial nailing patterns
  • Two concrete hole positions help avoid clashes with foundation reinforcement
  • Fastened with LBA Ø4 nails or LBS Ø5 screws; concrete side with AB1, SKR, VIN-FIX, HYB-FIX or EPO-FIX anchors
  • Material: DX51D steel with Z275 zinc coating, 3 mm thick
  • Service class SC1 and SC2; ETA-11/0496; UK assessment UKTA-0836-22/6373

Price shown is per piece. Select model to see price.

Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
TITAN F
Type
Angle bracket
Brand
Rothoblaas
Supplied
Per unit
Angle brackets & hangersShear connectionsTimber frame wallsTimber-to-concreteTimber-to-timberStructural connectionsJoist hangers & bracketsHeavy structural connectionsCorrosive environments
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
TCF200 — Timber-to-concrete · 200×71×3mmTCF200 Each £10.23each Supplied to order
Items
TTF200 — Timber-to-timber · 200×71×3mmTTF200 Each £7.65each Supplied to order
Items
£0.00 ex VATChoose quantities above
