Rothoblaas

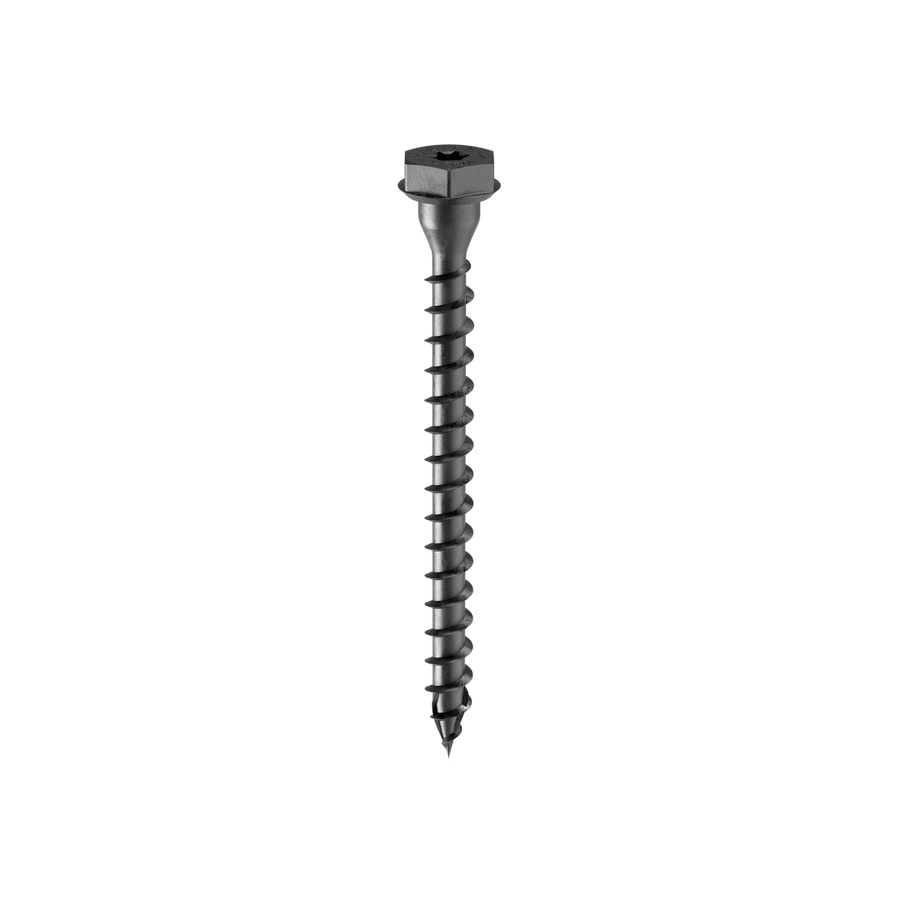

Reusable pan head lifting screw — VGS PLATE
Product code: VGSPL1160
£30.67
ex VAT
£36.80 inc VAT
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
Returns accepted within 30 days
Unopened stock only · Contact us first
VGS PLATE is a pan head hex screw with black E-Coating, engineered specifically for lifting and handling timber elements. The hexagonal SW17 head with TX50 drive works with all Rothoblaas lifting devices, including RAPTOR MINI, RAPTOR, RAPTOR MAXI, WASP and WASPL. Unlike traditional single-use lifting screws, VGS PLATE is designed for repeated use in transport and lifting operations, with performance validated by testing at the University of Maine and University of Bologna. Also certified for permanent metal-to-timber structural connections in buildings.
- Reusable for lifting and transport, subject to inspection with the JIG REUSE gauge before each reuse
- Black E-Coating and "LIFT" head marking make lifting screws easy to identify on site and prevent mixing with non-approved fixings
- Coating wear provides a visual indication of the number of reuse cycles
- Ø11 mm nominal, hexagonal SW17 head with TX50 drive for repeated install and removal
- Compatible with RAPTOR MINI, RAPTOR, RAPTOR MAXI, WASP and WASPL lifting devices
- Also certified for permanent metal-to-timber structural connections; reinforced underhead and no sharp edges for reliable load transfer, even with thick plates
- Material: electrogalvanised carbon steel with black E-Coating
- Characteristic tensile strength 38.0 kN, yield moment 45.9 Nm
- Service class: SC1, SC2. Atmospheric corrosivity: C1, C2. Wood corrosivity: T1, T2
- CE marked under ETA-11/0030; certified for lifting under Machinery Directive 2006/42/EC
- Recommended installation torque 30 Nm. Use a torque-controlled driver or torque wrench, impact wrenches are not permitted
- Bit included in the box. Sold per box of 25 screws
- For qualified personnel only. Follow the Rothoblaas manual and reuse criteria before every lifting operation
Price shown is per box of 25 screws. Select length to see the price.
Lifting & handlingSite riggingReusable lifting screwCLT panelsGlulam beamsPrefabricated timber elementsMetal-to-timber connectionsMass timber constructionService class 2
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the VGS PLATE range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Size | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|
| VGSPL1160 | 11 × 60 mm | — | £30.67 | To order | |
| VGSPL1180 | 11 × 80 mm | — | £34.53 | To order | |
| VGSPL11100 | 11 × 100 mm | — | £44.67 | To order | |
| VGSPL11120 | 11 × 120 mm | — | £56.27 | To order | |
| VGSPL11140 | 11 × 140 mm | — | £63.87 | To order | |
| VGSPL11160 | 11 × 160 mm | — | £71.60 | To order | |
| VGSPL11180 | 11 × 180 mm | — | £85.60 | To order | |
| VGSPL11200 | 11 × 200 mm | — | £100.93 | To order | |
| VGSPL11240 | 11 × 240 mm | — | £135.47 | To order | |
| VGSPL11280 | 11 × 280 mm | — | £171.20 | To order | |
| No sizes match your search. | |||||
