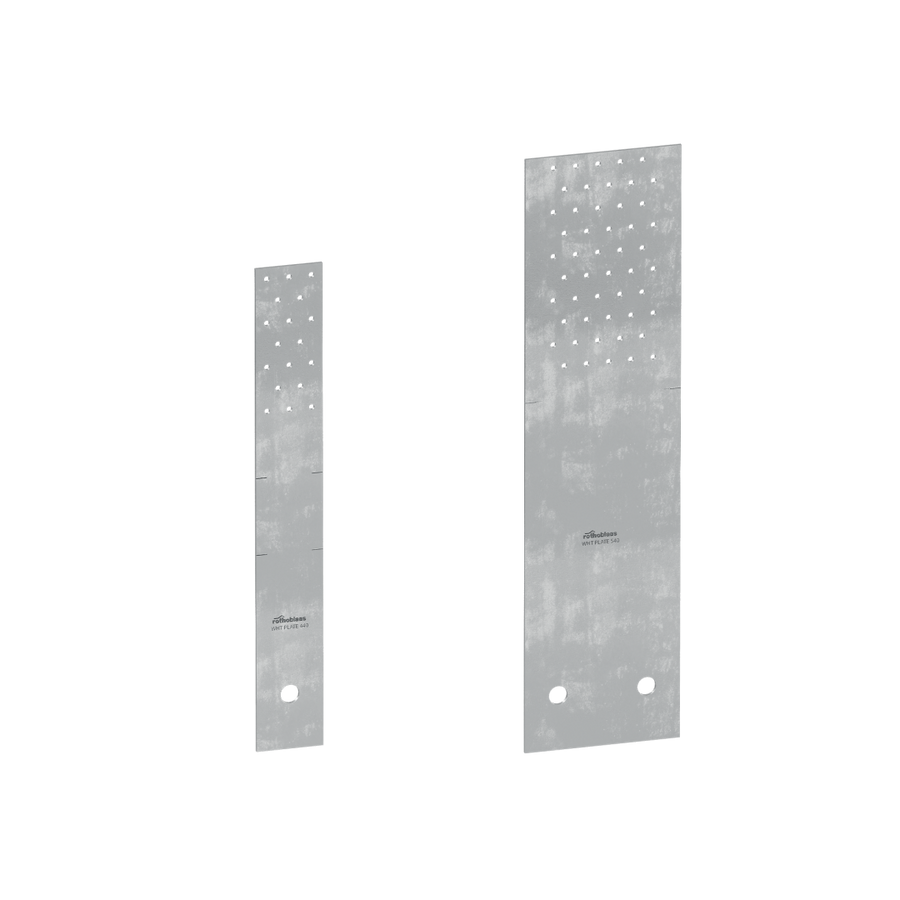

Hold-down tensile plate — Rothoblaas WHT PLATE C
Hold-down tensile plate — Rothoblaas WHT PLATE C
Hold-down tensile plate — Rothoblaas WHT PLATE C — view 2
Hold-down tensile plate — Rothoblaas WHT PLATE C — view 3
Hold-down tensile plate — Rothoblaas WHT PLATE C — view 4
⏱ Supplied to orderRothoblaas

Hold-down tensile plate — WHT PLATE C

Product code: WHTPLATE440
£7.12 ex VAT — 1 per box
£8.54 inc VAT
£7.12 per unit
Size: 60 × 440 mm
Qty (boxes)
Total: £7.12 ex VAT
Need a large quantity? Request a project quote
Want this kept in UK stock for fast delivery? Tell us — we stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
✓
Delivery sorted in the basket
One clear price · FREE over £500.
🚚
FREE delivery over £500
Tracked delivery UK wide.
🧾
VAT invoice with every order
Full VAT documentation for your records
↩
Returns accepted within 30 days
Unopened stock only · Contact us first

The WHT PLATE C is a hold-down plate that transfers tensile loads from timber walls into concrete or steel. The 440 mm version suits platform frame structures and the 540 mm version suits CLT panels, with both aligning to the support edge for fast, certified anchorage.

  • High tensile capacity, allowing fewer plates per wall and faster installation
  • WHTPLATE440: 60 mm wide, ideal for light timber frame walls around 60 mm thick
  • WHTPLATE540: 140 mm wide, ideal for CLT panel structures
  • Suitable for solid timber, glulam, timber frame, CLT and LVL panels
  • Timber-to-concrete and timber-to-steel configurations
  • Material: DX51D + Z275 galvanised carbon steel, 3 mm
  • Service class: SC1, SC2
  • CE and UKCA marked to ETA-11/0030
  • Fasten with LBA nails or LBS screws on timber and M16 anchors such as VIN-FIX or HYB-FIX on concrete, supplied separately
  • Dimensions shown are width by height, thickness 3 mm

Price shown is per plate. Select a size to see the price.

Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
WHT PLATE C
Type
Hold-down bracket
Brand
Rothoblaas
Supplied
Per unit
Hold-down fixingTensile connectionsTimber-to-concreteTimber frame wallsCLT wallsMass timber constructionSeismic detailingConcrete anchoringJoist hangers & bracketsAngle brackets & hangersStructural connections
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet ↗
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator →

All sizes in the WHT PLATE C range

Search by code or size, set quantities, and add any sizes straight to your basket.
CodeSizePack Price ex VAT Stock
WHTPLATE44060 × 440 mm1 pcs £7.12To order
WHTPLATE540140 × 540 mm1 pcs £18.69To order
