Rothoblaas

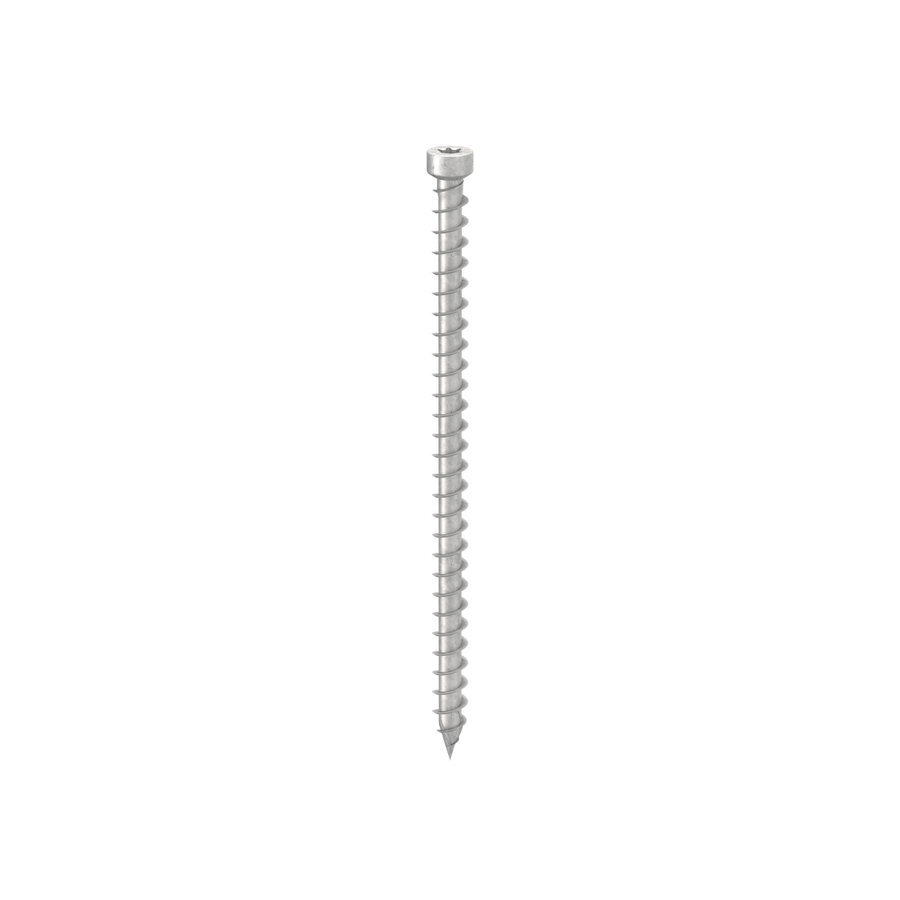

VGZ EVO · Fully threaded cylindrical head screw
Product code: VGZEVO5140
£29.86
ex VAT
· 50 per box
£35.83 inc VAT
£0.60 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy
VGZ EVO is a fully threaded structural screw with a cylindrical head, made from high-strength steel (fy,k = 1000 N/mm2) for excellent tensile and withdrawal performance. The full thread grips along its entire length, making it ideal for concealed timber-to-timber joints, beam reinforcements, truss and rafter connections, and stud fastening. The cylindrical head sinks flush into the timber for a clean, fire-friendly finish, and the C4 EVO coating suits outdoor and corrosive environments.
- Fully threaded for high axial load transfer along the whole screw
- High-strength steel, fy,k 1000 N/mm2, for excellent tensile capacity
- Approved for structural use with stresses in any direction relative to the grain (0 to 90 degrees)
- Cylindrical head penetrates the timber surface for concealed, demountable joints
- Reduced minimum distances for tighter, more efficient connections
- Suitable for timber-based panels, solid timber, glulam, CLT, LVL, high density woods, and ACQ or CCA treated timber
- Diameters from 5.6 to 11 mm, with the matching TX bit included
- Material: carbon steel with C4 EVO coating, no rust after 1440 hours salt spray (ISO 9227)
- Service class: SC1, SC2, SC3; atmospheric corrosivity C1 to C4; wood corrosivity T1 to T3
- CE marked to ETA-11/0030; UKCA to UKTA-0836-22/6195; ICC-ES ESR-4645
Price shown is per box. Select diameter and length to see the price.
Timber-to-timberConcealed fixingBeam reinforcementTruss & rafter connectionsMass timber constructionStructural connectionsTensile connectionsOutdoor & exposed useCorrosive environmentsService class 3
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the VGZ EVO · Fully threaded cylindrical head screw range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Diameter | Length | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|---|
| VGZEVO5140 | 5.6 mm | 140 mm | 50 pcs | £29.86 | To order | |
| VGZEVO5150 | 5.6 mm | 150 mm | 50 pcs | £32.26 | To order | |
| VGZEVO5160 | 5.6 mm | 160 mm | 50 pcs | £36.54 | In stock | |
| VGZEVO780 | 7 mm | 80 mm | 25 pcs | £19.38 | To order | |
| VGZEVO7100 | 7 mm | 100 mm | 25 pcs | £22.46 | To order | |
| VGZEVO7120 | 7 mm | 120 mm | 25 pcs | £28.26 | To order | |
| VGZEVO7140 | 7 mm | 140 mm | 25 pcs | £35.20 | To order | |
| VGZEVO7160 | 7 mm | 160 mm | 25 pcs | £41.60 | To order | |
| VGZEVO7180 | 7 mm | 180 mm | 25 pcs | £49.86 | To order | |
| VGZEVO7200 | 7 mm | 200 mm | 25 pcs | £57.06 | To order | |
| VGZEVO7220 | 7 mm | 220 mm | 25 pcs | £68.54 | In stock | |
| VGZEVO7240 | 7 mm | 240 mm | 25 pcs | £76.54 | To order | |
| VGZEVO7260 | 7 mm | 260 mm | 25 pcs | £90.40 | To order | |
| VGZEVO7280 | 7 mm | 280 mm | 25 pcs | £98.40 | To order | |
| VGZEVO7300 | 7 mm | 300 mm | 25 pcs | £113.86 | To order | |
| VGZEVO7340 | 7 mm | 340 mm | 25 pcs | £127.46 | To order | |
| VGZEVO7380 | 7 mm | 380 mm | 25 pcs | £154.14 | To order | |
| VGZEVO9160 | 9 mm | 160 mm | 25 pcs | £55.20 | To order | |
| VGZEVO9180 | 9 mm | 180 mm | 25 pcs | £67.74 | To order | |
| VGZEVO9200 | 9 mm | 200 mm | 25 pcs | £82.94 | To order | |
| VGZEVO9220 | 9 mm | 220 mm | 25 pcs | £94.40 | To order | |
| VGZEVO9240 | 9 mm | 240 mm | 25 pcs | £112.00 | To order | |
| VGZEVO9260 | 9 mm | 260 mm | 25 pcs | £123.20 | To order | |
| VGZEVO9280 | 9 mm | 280 mm | 25 pcs | £142.14 | To order | |
| VGZEVO9300 | 9 mm | 300 mm | 25 pcs | £148.54 | To order | |
| VGZEVO9320 | 9 mm | 320 mm | 25 pcs | £82.40 | To order | |
| VGZEVO9340 | 9 mm | 340 mm | 25 pcs | £86.53 | To order | |
| VGZEVO9360 | 9 mm | 360 mm | 25 pcs | £96.00 | To order | |
| VGZEVO9380 | 9 mm | 380 mm | 25 pcs | £100.00 | To order | |
| VGZEVO9400 | 9 mm | 400 mm | 25 pcs | £106.67 | To order | |
| VGZEVO9440 | 9 mm | 440 mm | 25 pcs | £143.87 | To order | |
| VGZEVO9480 | 9 mm | 480 mm | 25 pcs | £180.40 | To order | |
| VGZEVO9520 | 9 mm | 520 mm | 25 pcs | £207.47 | To order | |
| VGZEVO11250 | 11 mm | 250 mm | 25 pcs | £88.00 | To order | |
| VGZEVO11300 | 11 mm | 300 mm | 25 pcs | £118.27 | To order | |
| VGZEVO11350 | 11 mm | 350 mm | 25 pcs | £136.13 | To order | |
| VGZEVO11400 | 11 mm | 400 mm | 25 pcs | £166.53 | To order | |
| VGZEVO11450 | 11 mm | 450 mm | 25 pcs | £197.33 | To order | |
| VGZEVO11500 | 11 mm | 500 mm | 25 pcs | £270.67 | To order | |
| VGZEVO11550 | 11 mm | 550 mm | 25 pcs | £318.67 | To order | |
| VGZEVO11600 | 11 mm | 600 mm | 25 pcs | £388.00 | To order | |
