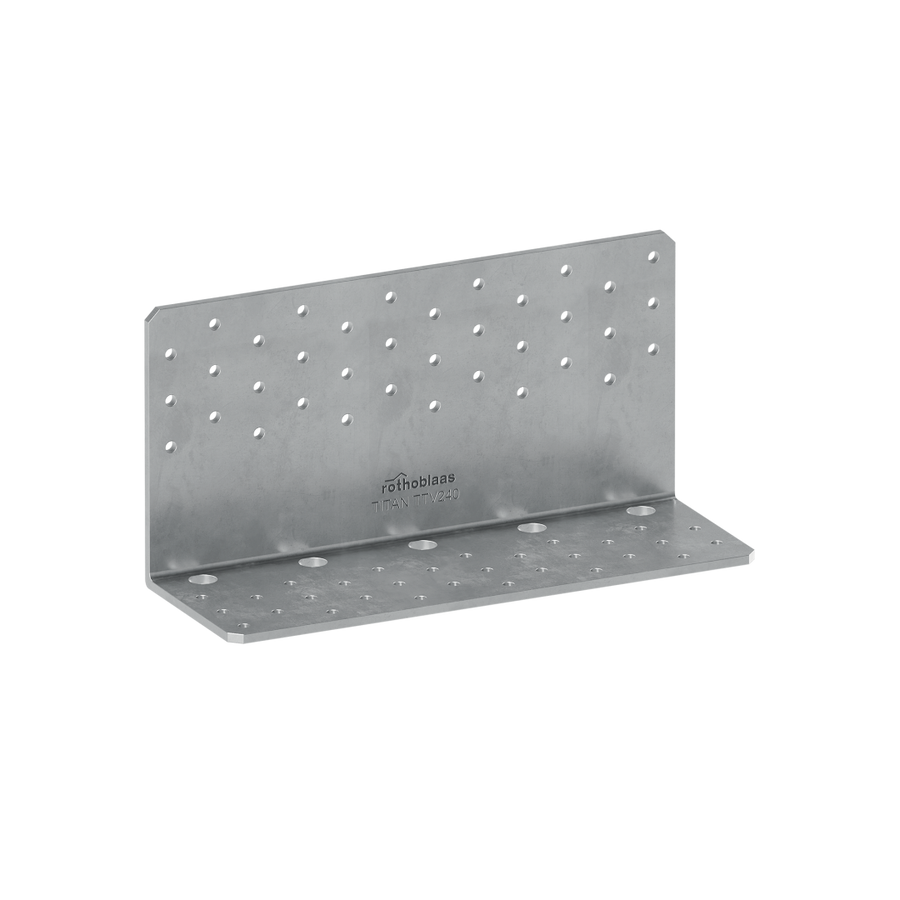

Heavy-duty angle bracket for shear and tensile loads — TITAN V

Product code: TTV240
£21.50 ex VAT — 1 per box
£25.80 inc VAT
£21.50 per unit
Size: TTV240 — 240×120×4mm
Qty (boxes)
Total: £21.50 ex VAT
Need a large quantity? Request a project quote
Want this kept in UK stock for fast delivery? Tell us — we stock more of what customers ask for. No obligation to buy; we'll just let you know when it's available next-day.
Request this in UK stock →
✓
In stock: ships in 1–2 working days
From UK stock. Not in stock? Ordered direct from Italy, usually 5–7 days.
🚚
Free UK delivery over £250
Under £250 — flat £15. Need it by a set date? Message us before ordering.
🧾
VAT invoice sent automatically
PDF emailed on order confirmation
↩
Returns accepted within 30 days
Unopened stock only · Contact us first

TITAN V is a heavy-duty angle bracket for shear and tensile joints in timber walls subject to very high stress. Its holes for inclined VGS Ø11 full-thread screws deliver exceptional performance in timber-to-timber connections.

  • Tensile capacity up to 101.0 kN and shear capacity up to 73.1 kN characteristic
  • Inclined VGS screws allow inter-storey walls of different thickness to be fastened together
  • Reduced vertical flange height allows concealed installation within floor panels; 4 mm steel
  • A single bracket type covers both shear and tensile wall fastening, with an optional XYLOFON acoustic profile
  • Fastened with LBA Ø4 nails or LBS Ø5 screws plus VGS Ø11 full-thread connectors
  • Material: S275 steel with Fe/Zn12c coating; patented design
  • Service class SC1 and SC2; ETA-11/0496; UK assessment UKTA-0836-22/6373

Price shown is per piece.

Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
TITAN V
Type
Angle bracket
Brand
Rothoblaas
Supplied
Per unit
Angle brackets & hangersShear connectionsTensile connectionsHeavy structural connectionsTimber-to-timberTimber frame wallsHigh-load connectionsFloor & roof framingJoist hangers & bracketsStructural connections

All sizes in the TITAN V range

Search by code or size, set quantities, and add any sizes straight to your basket.
CodeSizePack Price ex VAT
TTV240TTV240 — 240×120×4mm1 pcs £21.50
No sizes match your search.

Often ordered together

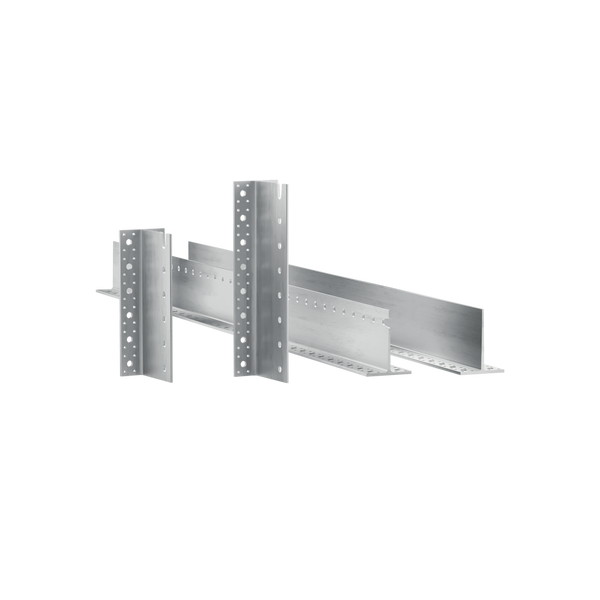

Large concealed beam connector — Rothoblaas ALUMAXI
5–7 days
Rothoblaas
Large concealed beam connector — ALUMAXI
📦 1 per box
From £90.88ex VAT
Choose options →
Two metal bracket components on a white background
5–7 days
Rothoblaas
Titan washer for TITAN brackets — TCW
📦 1 per box
From £8.58ex VAT
Choose options →

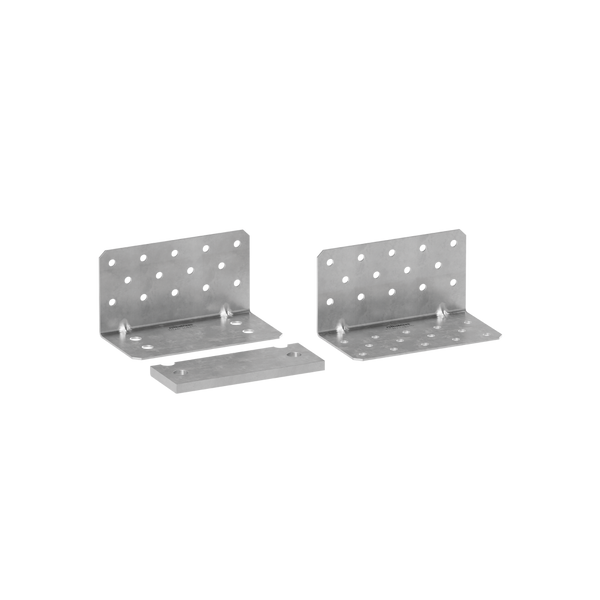

Shear and tensile angle bracket — Rothoblaas TITAN S
5–7 days
Rothoblaas
Shear and tensile angle bracket — TITAN S
📦 1 per box
From £11.21ex VAT
Choose options →

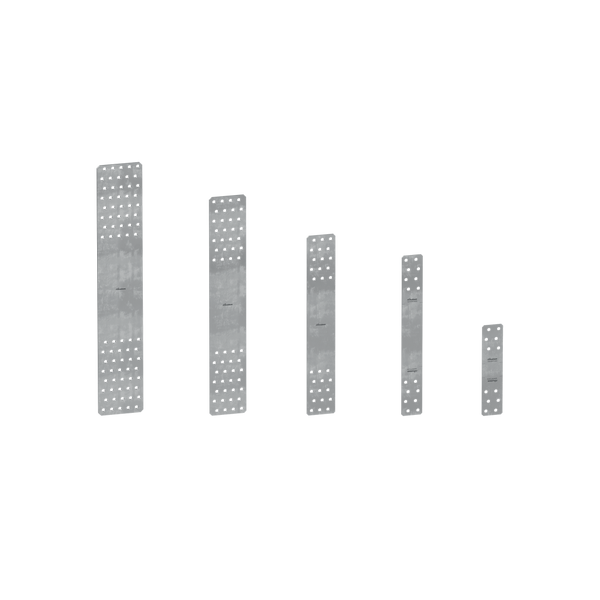

Tensile plate timber-to-timber — Rothoblaas WHT PLATE T
5–7 days
Rothoblaas
Tensile plate timber-to-timber — WHT PLATE T
📦 1 per box
From £5.41ex VAT
Choose options →

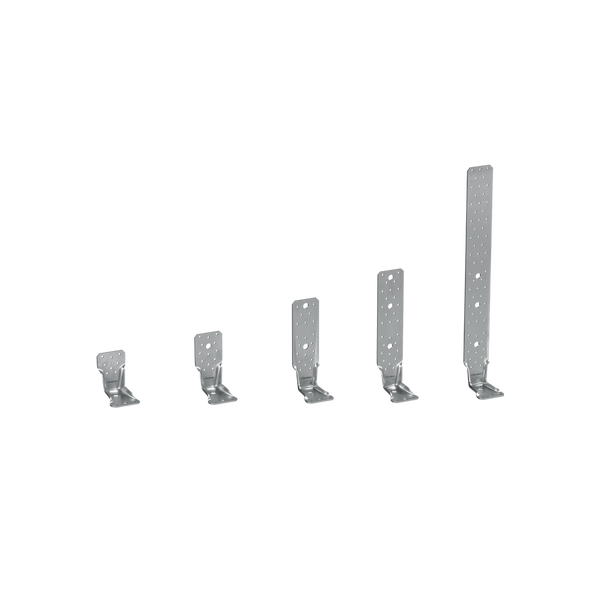

Tensile angle bracket for buildings — Rothoblaas WKR
5–7 days
Rothoblaas
Tensile angle bracket for buildings — WKR
📦 1 per box
From £4.18ex VAT
Choose options →
Washer for WHT hold-downs — Rothoblaas WHTW
5–7 days
Rothoblaas
Washer for WHT hold-downs — WHTW
📦 1 per box
From £3.54ex VAT
Choose options →
Tensile hold-down angle bracket — Rothoblaas WHT
5–7 days
Rothoblaas
Tensile hold-down angle bracket — WHT
📦 1 per box
From £20.29ex VAT
Choose options →

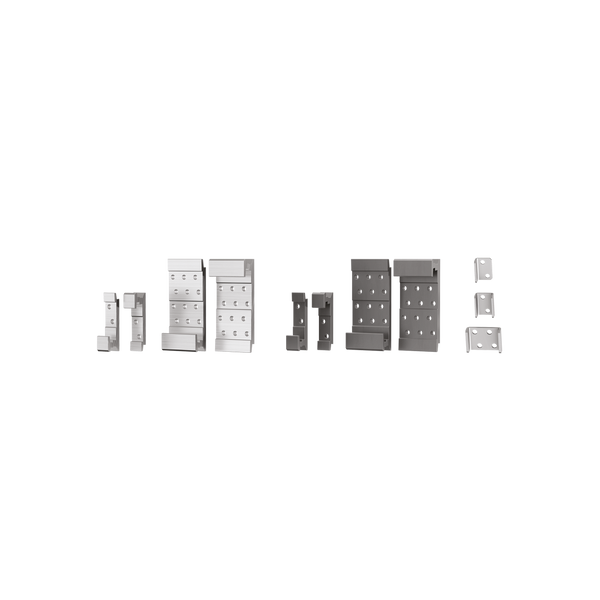

Slim concealed timber-to-timber beam connector — Rothoblaas LOCK T MINI
