Rothoblaas R10 / R20 · Adjustable post base
Supplied to order

Rothoblaas

R10 / R20 · Adjustable post base

Product code: R1080M
£24.69 ex VAT · 1 per box
£29.63 inc VAT
£24.69 per unit
Total: £24.69 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

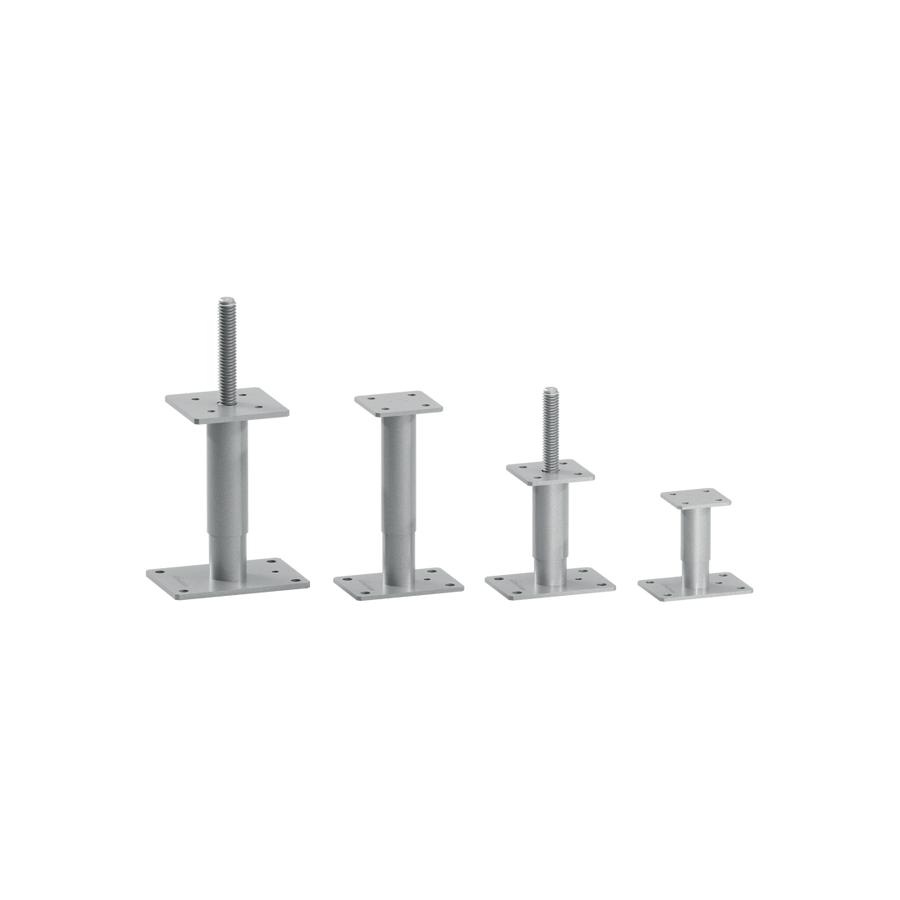

R10 and R20 are height-adjustable steel post bases for connecting timber columns to concrete foundations. The support height can be adjusted after installation thanks to a concealed double-thread system hidden by the sleeve, giving a clean finish and precise levelling. The post is raised clear of the ground to avoid water splash and stagnation, improving durability outdoors.

  • Height adjustable after installation via concealed double-thread sleeve
  • Raised base keeps the column clear of standing water for high durability
  • Concealed fastening on the timber element for a neat appearance
  • Rectangular base plate for easy anchor positioning, even near concrete edges
  • R10 develops compressive and tensile strength through VGS all-thread screws
  • R20 uses a central through-rod for high compressive and tensile strength
  • Suitable for columns in solid softwood and hardwood, glulam and LVL
  • Material: S235 carbon steel with DAC COAT special coating
  • Service class: SC1, SC2, SC3
  • CE marked under ETA-10/0422
  • Screws and anchors not included; order Rothoblaas HBS PLATE EVO / VGS EVO screws and concrete anchors separately

Price shown is per unit. Select model and size to see the price.

Order by Wednesday midnight. Dispatched Thursday.

Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
R10 / R20
Type
Post base
Service class
SC1-SC3
Brand
Rothoblaas
Supplied
Per unit
Post anchoringPost base anchoringTimber-to-concreteAdjustable anglesOutdoor structuresPergolas & carportsMass timber constructionConcrete anchoringTensile connectionsOutdoor & exposed useService class 3
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
R10 / Ø20 · 130–170 mm (80M)R1080M Each £24.69each Supplied to order
Items
R10 / Ø24 · 170–230 mm (100L)R10100L Each £40.37each Supplied to order
Items
R10 / Ø24 · 270–330 mm (100XL)R10100XL Each £45.55each Supplied to order
Items
R10 / Ø27 · 260–340 mm (140XL)R10140XL Each £72.53each Supplied to order
Items
R20 / Ø20 · 130–170 mm (80M)R2080M Each £25.92each Supplied to order
Items
R20 / Ø24 · 170–230 mm (100L)R20100L Each £43.68each Supplied to order
Items
R20 / Ø27 · 260–340 mm (140XL)R20140XL Each £75.20each Supplied to order
Items
£0.00 ex VATChoose quantities above
