ISULFIX · Insulation anchor for concrete and brickwork
Supplied to order

Rothoblaas

ISULFIX · Insulation anchor for concrete and brickwork

Product code: ISULFIX8110
£83.08 ex VAT · 250 per box
£99.70 inc VAT
£0.33 per unit
Total: £83.08 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

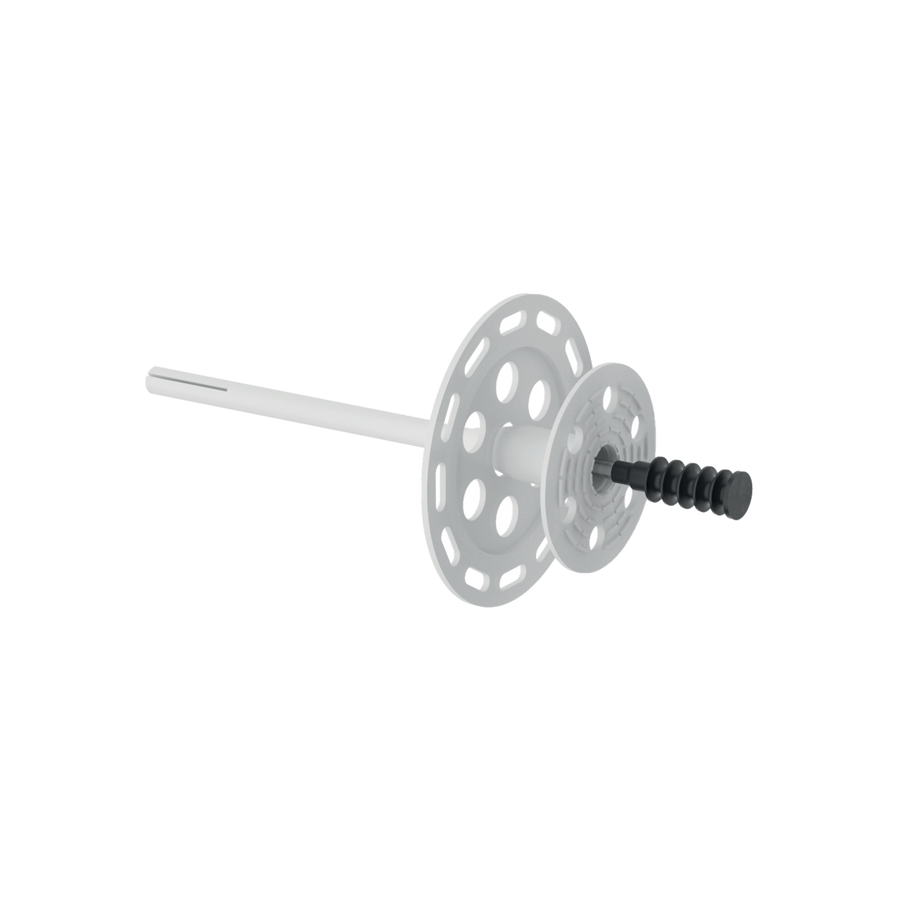

ISULFIX is an insulation anchor for fixing insulation boards to concrete and brickwork.

It is a Ø8 PVC plug with a steel nail already fitted. Push it through the insulation into a pre-drilled 8 mm hole and drive the nail: the plug spreads twice along its length, so it grips in hard concrete and in softer brick without changing product. The 60 mm head spreads the load across the face of the board instead of pulling through it.

Choosing the length

Length comes off your insulation thickness. The 110 mm anchor takes insulation up to 80 mm, the 150 mm up to 120 mm, and the 190 mm up to 160 mm. Pick the one that matches the board you are fixing.

Soft insulation needs the wider washer

On soft boards the 60 mm head can still sink into the surface instead of bearing on it. The separate ISULFIX90 washer gives a 90 mm face to spread the bearing. That is a second product, ordered alongside, not an alternative to the anchor.

Before you fix

  • Concrete and brickwork only. This is not a timber fixing
  • Service class 1 and 2 only, so sheltered from driving rain. Not for exposed elevations. That is counter-intuitive for a façade fixing, so check your exposure before you specify it
  • It needs an 8 mm drilled hole. It is not self-drilling
  • Match the length to the insulation: 80, 120 or 160 mm maximum
  • Soft insulation needs the 90 mm washer as well. Two products, not one
  • It fixes insulation. It is not a structural anchor and it carries no building load

Related products

ISULFIX90 additional washer for soft insulation · insulation washer for timber · DWZ and DGZ insulation screws.

Price shown is per box, and the pack size changes with the length: 250, 150 or 100 pieces. Select a length to see the price.

What it is
Anchor for fixing insulation to concrete and brickwork
Body
PVC with pre-assembled carbon steel nail
Head diameter
60 mm
Drill hole diameter
8 mm
Lengths
110 mm · 150 mm · 190 mm
Maximum insulation thickness
80 mm (L110) · 120 mm (L150) · 160 mm (L190)
Substrates
Concrete and brickwork
Service class
Service class 1 and 2 only. Not for exposed elevations
Pack
250 pieces (L110) · 150 pieces (L150) · 100 pieces (L190)
Brand
Rothoblaas
Fixing insulation to concreteFixing insulation to brickworkExternal wall insulationSheltered façadesRigid insulation boards
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
ISULFIX8110 — 110 mm — insulation up to 80 mm — box of 250ISULFIX8110 Box of 250 £83.08per box Supplied to order
Boxes
ISULFIX8150 — 150 mm — insulation up to 120 mm — box of 150ISULFIX8150 Box of 150 £70.00per box Supplied to order
Boxes
ISULFIX8190 — 190 mm — insulation up to 160 mm — box of 100ISULFIX8190 Box of 100 £66.13per box Supplied to order
Boxes
