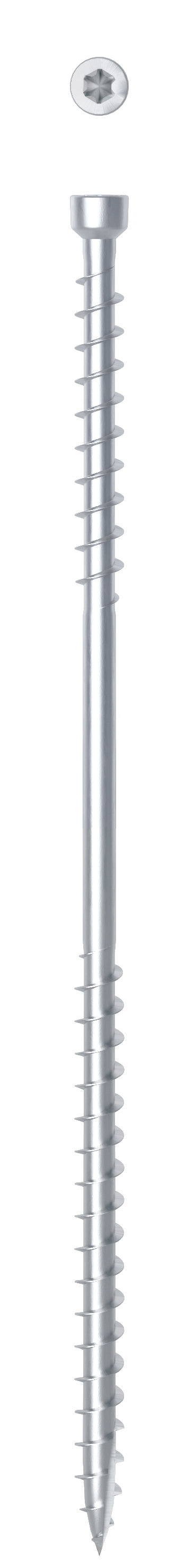

DWZ · Double thread screw for insulation layer
Supplied to order

RothoblaasHolz Technic

DWZ · Double thread screw for insulation layer

Product code: DWZ7220
Rothoblaas code: DGZ7220
£55.83 ex VAT · 50 per box
£67.00 inc VAT
£1.12 per unit
Total: £55.83 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

DWZ is a double thread insulation screw that fixes the counter batten through the insulation layer into the rafter below, holding the batten off the roof deck across the full insulation depth.

On an over-rafter warm roof the batten has to be held down through a thick, compressible layer without crushing it and without a bracket bridging it. DWZ does that with one screw. The point-side thread bites the rafter, the head-side thread bites the batten, and because the two pull at different rates the screw clamps the sandwich tight.

Key features

  • Fixes the counter batten through insulation into the rafter in one screw
  • Double thread with a 3 THORNS tip, 100 mm point side and 60 mm head side
  • Cylindrical head, Ø9.50 mm on Ø7 and Ø11.50 mm on Ø9, sits hidden inside the batten
  • Single fixing through the layer limits thermal bridging, with no bracket or rail crossing the insulation
  • Certified for hard, soft and façade insulation, fixed at 60° or 90°
  • Characteristic tensile strength ftens,k 15.4 kN at Ø7 and 25.4 kN at Ø9
  • TX30 drive on Ø7 and TX40 on Ø9, bit included in every box
  • Suits over-rafter warm roofs on rafters, CLT and glulam, and ventilated façades

Before you fix

  • The tip must not protrude from the underside of the rafter. Check your build-up depth before you order a length
  • Minimum batten size is 50/30 mm base/height for Ø7 and 60/40 mm for Ø9
  • No pre-drilling in normal softwood. Pre-drilling is required above 550 kg/m³ characteristic density
  • Electrogalvanised zinc at minimum 5 µm, so service class 1 and 2 only, C2 atmospheric and T2 wood corrosivity. Not for exterior or coastal exposure

A note on the name. This screw is certified under ETA-11/0030 as screw type DGZ. DWZ is the Holz Technic code for the same Rothoblaas screw, same manufacturer, same geometry, same approvals. If you or your building control officer are checking the approval document, look for DGZ. If your build-up calls for a screw longer than 400 mm, the identical screw is stocked in lengths up to 520 mm as DGZ: same manufacturer, same ETA, same performance, listed under the DGZ code.

What you'll also need

DWZ passes through the breather membrane, so every penetration needs sealing. Run Traspir House breather membranes under the battens and close the fixing line with nail sealing tapes such as FILLUM or GEMINI. See the full structural timber screw range.

Common questions

How do I choose the right DWZ length for my roof build-up? Length comes off the selection table on page 2 of the datasheet, from three numbers: insulation plus planking thickness, batten thickness, and whether you fix at 60° or 90°. Read it off the table rather than adding the layers up, and check the tip will not break through the underside of the rafter.

Can DWZ fix through soft insulation, or only rigid? Both. Soft insulation is a certified case in the ETA, not a workaround. It does reduce capacity, so in practice it usually means more screws or the 60° arrangement. The number and the spacing are your engineer's call.

Price shown is per box of 50 pieces. See the table below for codes, sizes and pack prices.

Material
Carbon steel
Coating
Electrogalvanised zinc, minimum 5 µm
Head type
Cylindrical head
Head diameter
Ø9.50 mm (Ø7) · Ø11.50 mm (Ø9)
Thread
Double thread, 3 THORNS tip
Thread length
b 100 mm point side · b2 60 mm head side
Drive
TX30 (Ø7) · TX40 (Ø9), bit included
Diameters
Ø7 mm · Ø9 mm
Lengths
220, 260, 300, 340 mm (Ø7) · 400 mm (Ø9)
Service class
Service class 1 and 2 (EN 1995-1-1)
Atmospheric corrosivity
C2
Wood corrosivity
T2
Characteristic tensile strength ftens,k
15.4 kN (Ø7) · 25.4 kN (Ø9)
Withdrawal parameter fax,k
11.7 N/mm² at ρa 350 kg/m³, characteristic density up to 440 kg/m³, in solid timber, glulam, CLT and SWP
Head pull-through fhead,k
10.5 N/mm² at ρa 350 kg/m³, softwood and wood-based panels over 20 mm
Yield moment My,k
14.2 Nm (Ø7) · 27.2 Nm (Ø9)
Minimum batten size
50/30 mm base/height (Ø7) · 60/40 mm (Ø9)
Certification
CE marked to ETA-11/0030 (ETA-Danmark, 20 August 2025, EAD 130118-01-0603) · UKCA marked to UKTA-083622/6195
Certified as screw type
DGZ. DWZ is the Holz Technic code for the same screw
Design code
EN 1995-1-1 (Eurocode 5) and the UK National Annex
Pack
50 pieces per box, TX bit included
Brand
Rothoblaas
Over-rafter warm roof insulationCounter batten fixing through insulationWarm roofs on CLT and glulamVentilated façadesHard insulation boardsSoft insulationFaçade insulationFixing at 60° or 90°Timber-to-timber
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
7 mm · min. batten 50/30 mm / 220 mmDWZ7220 Box of 50 £55.83per box Supplied to order
Boxes
7 mm · min. batten 50/30 mm / 260 mmDWZ7260 Box of 50 £76.00per box Supplied to order
Boxes
7 mm · min. batten 50/30 mm / 300 mmDWZ7300 Box of 50 £81.56per box Supplied to order
Boxes
7 mm · min. batten 50/30 mm / 340 mmDWZ7340 Box of 50 £94.85per box Supplied to order
Boxes
9 mm · min. batten 60/40 mm / 400 mmDWZ9400 Box of 50 £163.47per box Supplied to order
Boxes
