Supplied to order
Rothoblaas

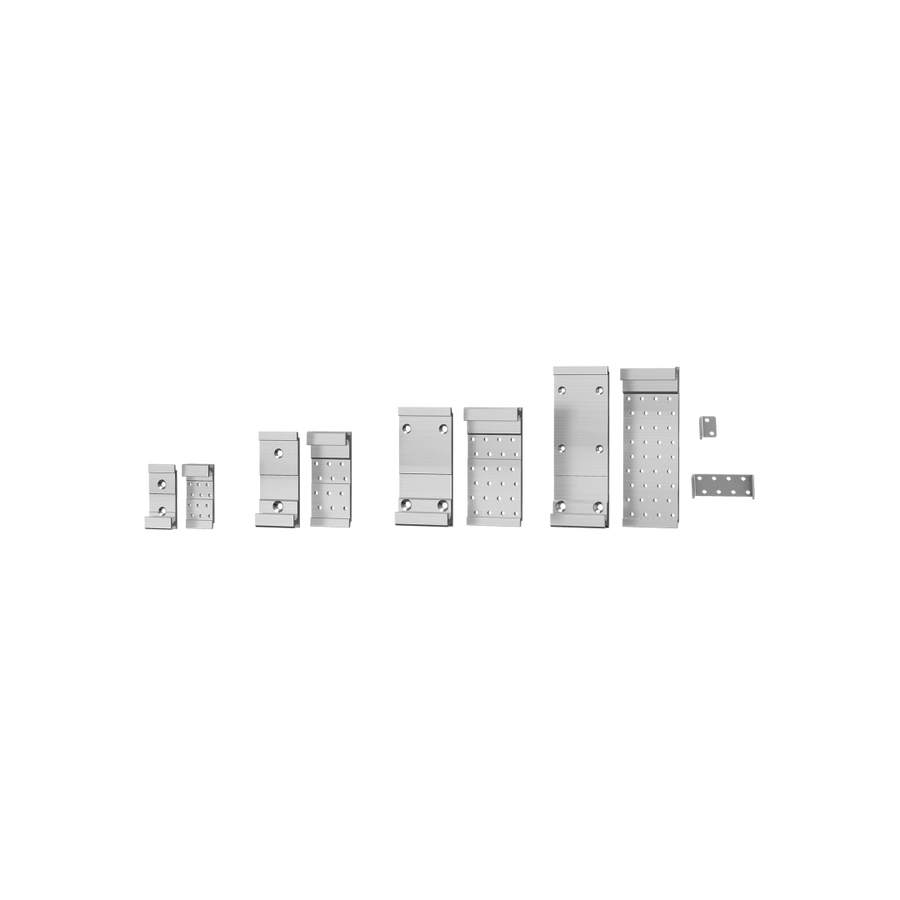

LOCK C · Concealed hook timber-to-concrete connector
Product code: LOCKC53120
£19.20
ex VAT
· 1 per box
£23.04 inc VAT
£19.20 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy
LOCK C is a concealed hook connector for fastening timber beams to concrete or steel. Screw-in anchors fix the concrete side and self-drilling screws fix the timber side, so the beam hooks into place and can be lifted out again for seasonal or demountable structures.
- Concealed hook system for a clean joint and quick installation
- Removable: beams can be unhooked and refitted as needed
- Certified strengths for vertical, lateral and axial loads
- Ideal for roofs, pergolas, gazebos and floors near concrete supports
- Suitable for solid timber softwood and hardwood, glulam and LVL
- Use outdoors in SC3 in non-aggressive environments with the correct screw choice
- Material: EN AW-6005A aluminium alloy
- Service class: SC1, SC2, SC3
- CE marked to ETA-19/0831
- LOCK connectors install as a matched pair; screws, anchors and LOCK STOP are not included
- Fasten with LBS screws on timber and SKS screw-in anchors on concrete, supplied separately
Price shown is per box. Select a size to see the price.
Material
Aluminium
Coating
None (mill-finish aluminium)
Product range
LOCK C
Type
Timber connector
Brand
Rothoblaas
Supplied
Per unit
Timber-to-concreteConcealed connectorBeam connectionsDemountable structuresPergolas & carportsFloor & roof framingMass timber constructionOutdoor & exposed use
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the LOCK C · Concealed hook timber-to-concrete connector range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Size | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|
| LOCKC53120 | 52.5 × 120 mm | 1 pcs | £19.20 | To order | |
| LOCKC75175 | 75 × 175 mm | 1 pcs | £27.47 | To order | |
| LOCKC100215 | 100 × 215 mm | 1 pcs | £38.51 | To order | |
| LOCKC100290 | 100 × 290 mm | 1 pcs | £52.59 | To order | |
| No sizes match your search. | |||||
