Home / Shop/ LOCK T MINI · Slim concealed timber-to-timber beam connector
Rothoblaas LOCK T MINI · Slim concealed timber-to-timber beam connector
Supplied to order

Rothoblaas

LOCK T MINI · Slim concealed timber-to-timber beam connector

Product code: LOCKT1880
£7.58 ex VAT · 1 per box
£9.10 inc VAT
£7.58 per unit
Total: £7.58 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

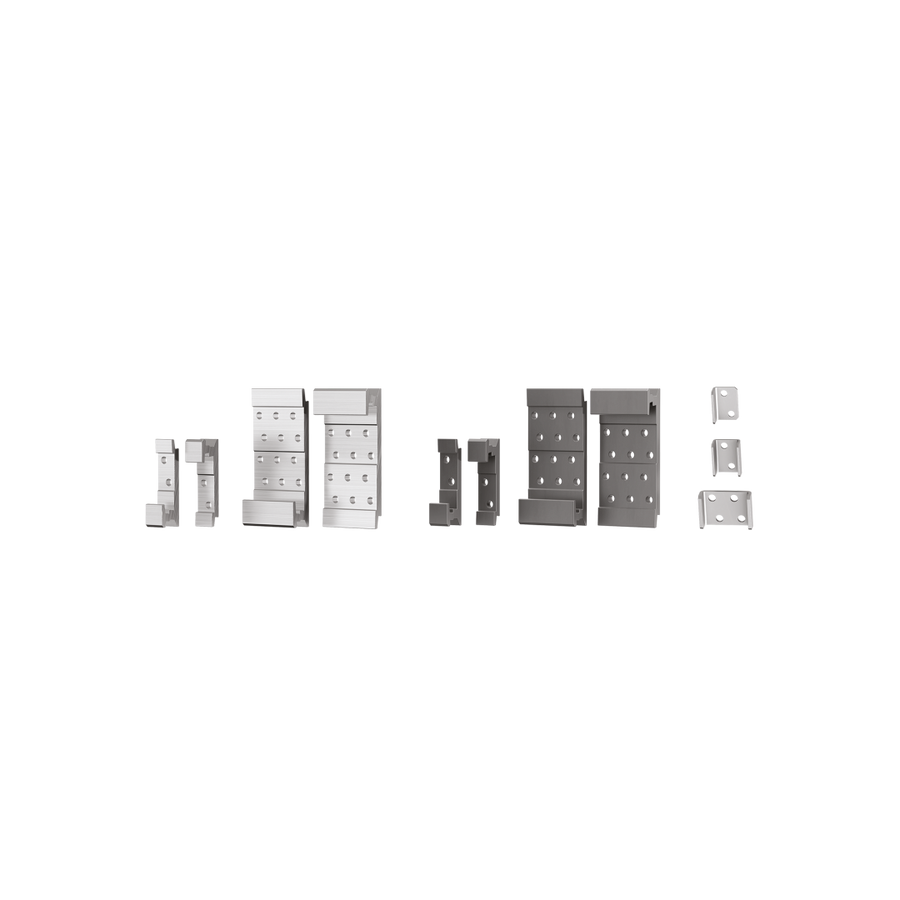

LOCK T MINI is a slim concealed aluminium connector for timber-to-timber beam joints, hidden inside elements from just 35 mm thick. It gives a clean, fire-friendly finish while carrying vertical, lateral, axial and uplift loads, making it ideal for small structures, gazebos, furniture and facade sunscreen systems. The EVO version adds a graphite-black coating for use in more aggressive environments.

  • Conceals in thin wooden elements from 35 mm
  • Certified strengths in all load directions: vertical, lateral and axial
  • Easy to disassemble, ideal for temporary or demountable structures
  • Fastened with a single screw type for quick installation
  • Two connectors can be paired for wider beams and extra lateral tolerance
  • Mill finish for indoor and sheltered use; EVO graphite-black coating for aggressive outdoor environments
  • Suitable for solid timber softwood and hardwood, glulam and LVL
  • Material: EN AW-6005A aluminium alloy
  • Service class: SC1, SC2, SC3
  • CE marked to ETA-19/0831
  • LOCK connectors install as a matched pair; fasten with LBS or LBS EVO screws, supplied separately

Price shown is per box. Select finish and size to see the price.

LOCK series | Product video

Material
Aluminium
Coating
None (mill-finish aluminium)
Product range
LOCK T MINI
Type
Timber connector
Brand
Rothoblaas
Supplied
Per unit
Timber-to-timberConcealed connectorBeam connectionsPergolas & carportsFurniture & joineryFacade connectionsMass timber constructionJoist hangers & bracketsTensile connectionsOutdoor & exposed use
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
Mill finish / 17.5 × 80 mmLOCKT1880 Each £7.58each Supplied to order
Items
Mill finish / 35 × 80 mmLOCKT3580 Each £9.22each Supplied to order
Items
Mill finish / 35 × 100 mmLOCKT35100 Each £9.85each Supplied to order
Items
Mill finish / 35 × 120 mmLOCKT35120 Each £10.38each Supplied to order
Items
Mill finish / 52.5 × 120 mmLOCKT53120 Each £12.08each Supplied to order
Items
EVO graphite black / 17.5 × 80 mmLOCKTEVO1880 Each £10.58each Supplied to order
Items
EVO graphite black / 35 × 80 mmLOCKTEVO3580 Each £15.17each Supplied to order
Items
EVO graphite black / 35 × 100 mmLOCKTEVO35100 Each £13.75each Supplied to order
Items
EVO graphite black / 35 × 120 mmLOCKTEVO35120 Each £17.59each Supplied to order
Items
EVO graphite black / 52.5 × 120 mmLOCKTEVO53120 Each £17.77each Supplied to order
Items
£0.00 ex VATChoose quantities above
