Supplied to order
RothoblaasHolz Technic
Titan Plate T · Timber-to-timber shear plate
Product code: TTP200
£4.57
ex VAT
· 1 per box
£5.48 inc VAT
£4.57 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy

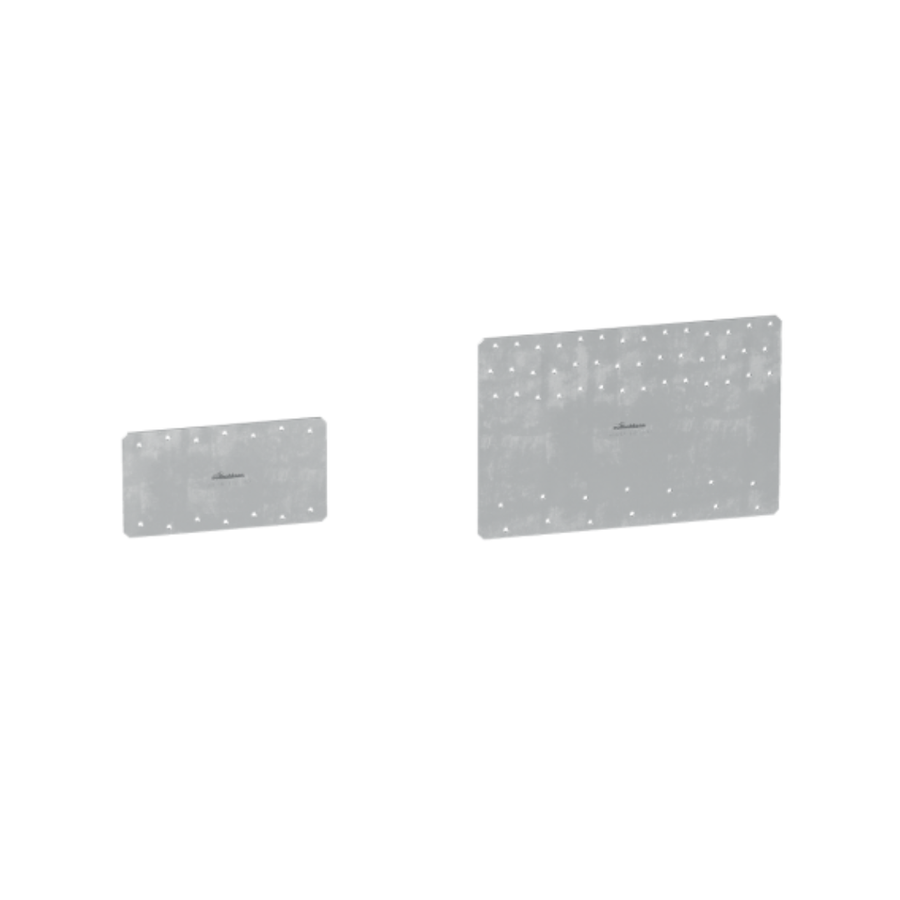

Flat shear connection plate for structural connections between two CLT panels or between a CLT panel and a timber beam. Three versions available: calculated, certified and ready to use. DX51D/Z275 galvanised steel. UKCA and CE marked to EN 14545. Service Class 2.
- Ideal for shear connections between CLT panels or between a CLT panel and a timber beam
- Available in three versions: calculated, certified and ready to use
- TTP200: 2.5mm DX51D/Z275 · 200×105mm · 14 × Ø5mm holes
- TTP300: 3mm DX51D/Z275 · 300×200mm · 56 × Ø5mm holes
- Service Class 2 · UKCA & CE marked · EN 14545
Sold individually. Select size to see price.
Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
Titan Plate T
Type
Connector plate
Service class
SC1-SC2
Brand
Rothoblaas
Supplied
Per unit
Timber-to-timberShear connectionsHigh-load transferCLT floors & wallsMass timber buildingsPanel-to-panel jointsTimber frame wallsMass timber constructionHeavy structural connectionsConnector plate connectionsStructural connections
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the Titan Plate T · Timber-to-timber shear plate range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Size | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|
| TTP200 | TTP200 — 200×105mm · 2.5mm | 1 pcs | £4.57 | To order | |
| TTP300 | TTP300 — 300×200mm · 3mm | 1 pcs | £14.51 | To order | |
| No sizes match your search. | |||||
