WHT PLATE T · Tensile plate timber-to-timber
Product code: WHTPT300
£4.76
ex VAT
· 1 per box
£5.71 inc VAT
£4.76 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy
The WHT PLATE T is a ready-to-use tensile plate for timber-to-timber joints in walls, beams and floors. Fastened with HBS PLATE screws for fast, demountable assembly, the range spans five strength levels up to more than 200 kN, making it ideal for multi-storey timber buildings and seismic design across different floor thicknesses.
- Five strength levels from around 23 kN to over 200 kN characteristic
- Fast, screwed assembly with HBS PLATE or HBS PLATE EVO screws, fully demountable
- Positioning notches set the maximum panel gap, including space for an acoustic profile
- WHTPT300 and WHTPT530 also suit tensile joints between CLT floor panels
- Suitable for solid timber, glulam, CLT and LVL panels
- Timber-to-timber configuration
- Material: WHTPT300 and WHTPT530 in S350GD + Z275; WHTPT600, WHTPT720 and WHTPT820 in S355 + Fe/Zn12c galvanised carbon steel
- Service class: SC1, SC2
- CE marked to EN 14545; WHTPT600, WHTPT720 and WHTPT820 also UKCA marked to ETA-11/0030
- Fasten with HBS PLATE Ø8 screws, supplied separately
- Dimensions shown are height by width by thickness
Price shown is per plate. Select a size to see the price.
Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
WHT PLATE T
Type
Connector plate
Brand
Rothoblaas
Supplied
Per unit
Tensile connectionsHold-down fixingTimber-to-timberTimber frame wallsFloor & roof framingMass timber constructionSeismic detailingHigh-load connectionsCorrosive environmentsConnector plate connectionsStructural connections
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →

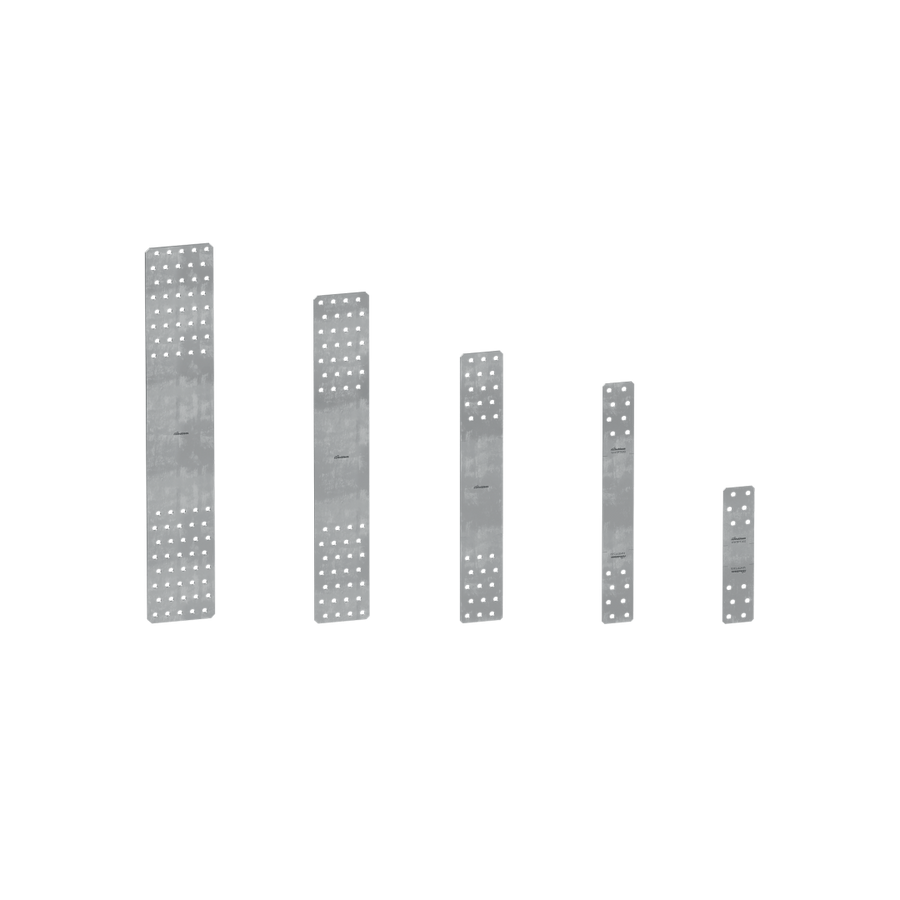

All sizes in the WHT PLATE T · Tensile plate timber-to-timber range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Size | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|
| WHTPT300 | 300 × 67 × 2 mm | 1 pcs | £4.76 | To order | |
| WHTPT530 | 530 × 67 × 2.5 mm | 1 pcs | £8.08 | To order | |
| WHTPT600 | 594 × 91 × 3 mm | 1 pcs | £19.20 | To order | |
| WHTPT720 | 722 × 118 × 4 mm | 1 pcs | £27.68 | To order | |
| WHTPT820 | 826 × 145 × 5 mm | 1 pcs | £40.64 | To order | |
