Home / Shop/ LBS HARDWOOD · Round head screw for plates
Rothoblaas LBS HARDWOOD · Round head screw for plates
Supplied to order

Rothoblaas

LBS HARDWOOD · Round head screw for plates

Product code: LBSH540
£68.20 ex VAT · 500 per box
£81.84 inc VAT
£0.14 per unit
Total: £68.20 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

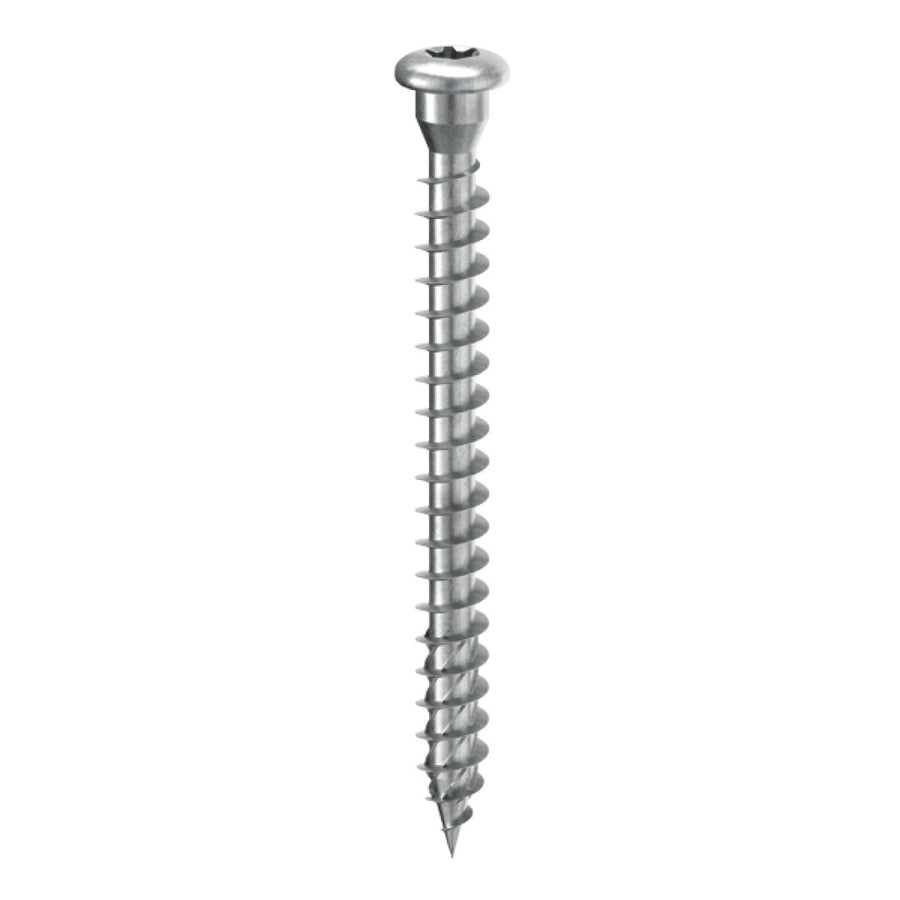

Round head screw for fastening perforated steel plates to timber, engineered for high density hardwoods. A special tip with embossed slit elements allows installation without pre-drilling, with ETA-11/0030 approval for structural applications stressed in any direction relative to the grain.

The internal thread diameter is increased over the standard LBS to ensure tightening in the densest woods. In steel-to-timber connections this can deliver more than 15% additional strength.

  • No pre-drilling required on beech, oak, cypress, ash, eucalyptus and bamboo
  • Tested and certified for beech LVL (Microllam) up to 800 kg/m³
  • Cylindrical shoulder interlocks with the plate hole for high shear performance
  • ETA-11/0030 certified, UKCA marked (UKTA-0836 22/6195)
  • Drive: TX20, bit included
  • Diameter: 5mm
  • Material: electrogalvanised carbon steel
  • Service class SC1 to SC2, atmospheric corrosivity C1 to C2

Price shown is per box. Select length to see pack quantity and price.

Material
Carbon steel
Coating
Electrogalvanised zinc
Head type
Round head
Drive
TX (Torx)
Product range
LBS HARDWOOD
Type
Timber screw
Service class
SC1-SC2
Brand
Rothoblaas
Supplied
Per box (see pack quantity)
Timber-to-metal platesConnector fasteningRound head fixingHardwood deckingStructural connectionsMass timber constructionShear connections
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
40 mmLBSH540 Box of 500 £68.20per box Supplied to order
Boxes
50 mmLBSH550 Box of 200 £34.96per box Supplied to order
Boxes
60 mmLBSH560 Box of 200 £38.92per box Supplied to order
Boxes
70 mmLBSH570 Box of 200 £44.04per box Supplied to order
Boxes
£0.00 ex VATChoose quantities above
