Supplied to order
Rothoblaas
WHTW · Washer for WHT hold-downs
Product code: WHTW6016
£3.11
ex VAT
· 1 per box
£3.73 inc VAT
£3.11 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy

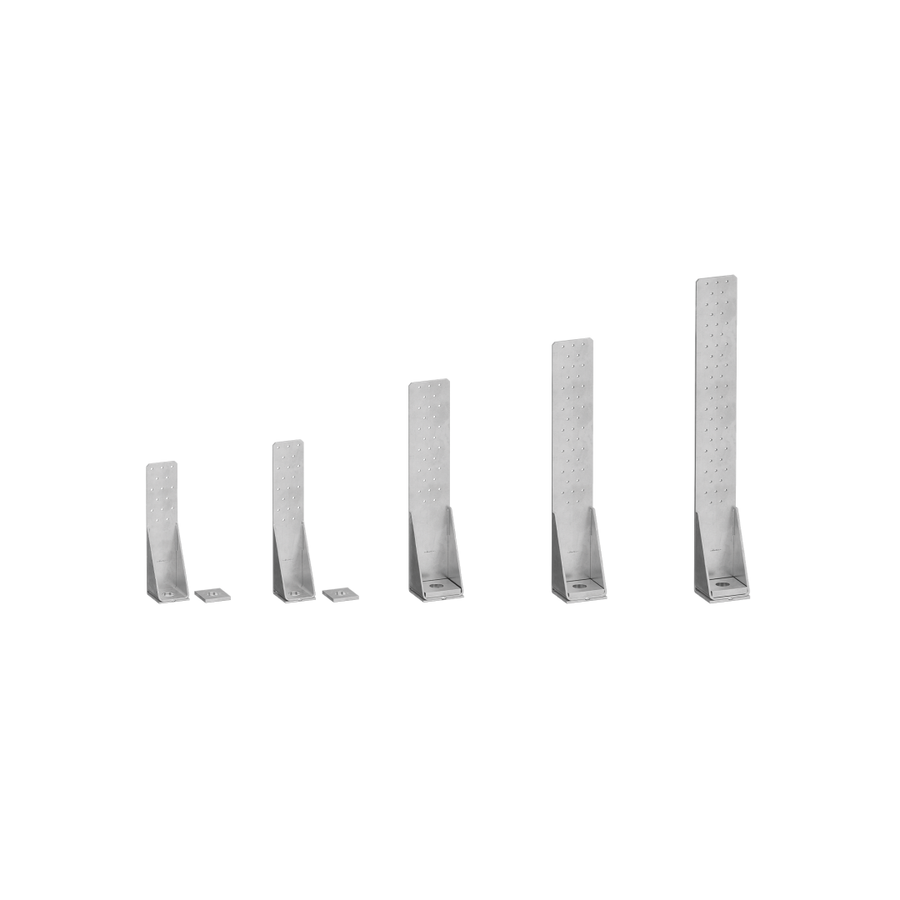

The WHTW is the steel washer that pairs with WHT hold-down angle brackets, spreading the anchor load across the bracket base. Each washer matches a specific anchor diameter and bracket size, so the right washer is selected by the rod size and the WHT it serves.
- WHTW6016: M16 hole, 6 mm thick, for WHT15 and WHT20
- WHTW6020: M20 hole, 6 mm thick, for WHT15 and WHT20
- WHTW8020: M20 hole, 10 mm thick, for WHT30 and WHT40
- WHTW8024: M24 hole, 10 mm thick, for WHT30 and WHT40
- WHTW8024L: M24 hole, 12 mm thick, for WHT55
- Material: S275 + Fe/Zn12c galvanised carbon steel
- Sold individually; used with the matching WHT bracket and anchor, supplied separately
Price shown is per washer. Select a model to see the price.
Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
WHTW
Type
Washer
Brand
Rothoblaas
Supplied
Per unit
Connector fixingHold-down fixingTensile connectionsWHT reinforcementAnchor load distributionConcrete-side reinforcementIncreased connection capacity
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the WHTW · Washer for WHT hold-downs range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Model | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|
| WHTW6016 | WHTW6016 — M16 for WHT15/20 | 1 pcs | £3.11 | To order | |
| WHTW6020 | WHTW6020 — M20 for WHT15/20 | 1 pcs | £3.38 | To order | |
| WHTW8020 | WHTW8020 — M20 for WHT30/40 | 1 pcs | £6.51 | To order | |
| WHTW8024 | WHTW8024 — M24 for WHT30/40 | 1 pcs | £6.62 | To order | |
| WHTW8024L | WHTW8024L — M24 for WHT55 | 1 pcs | £10.18 | To order | |
