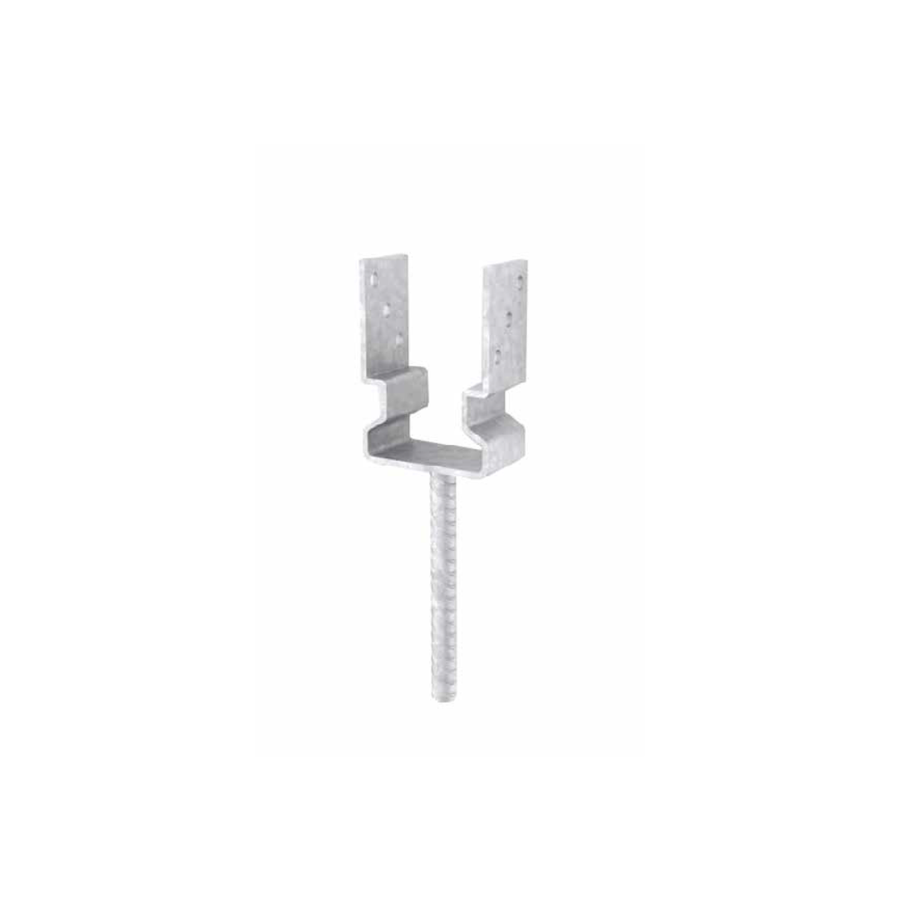

Rothoblaas M50 · U-shaped post base for concrete, view 2
Supplied to order

RothoblaasHolz Technic

M50 · U-shaped post base for concrete

Product code: M5070
£9.27 ex VAT · 1 per box
£11.12 inc VAT
£9.27 per unit
Total: £9.27 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

U-shaped post base with threaded rod for insertion into concrete. Suitable for square or rectangular columns of any width. Rod cast in during pouring or installed later with a chemical anchor. 5mm thick steel with Ø20mm rod. S235/HDG. Service Class 3. ETA-10/0422 certified.

  • U-shaped profile with concrete rod: square or rectangular columns any width
  • Rod inserted during concrete casting or with chemical anchor
  • 5mm thickness · Ø20mm rod × 200mm · Height 150mm
  • Material: S235/HDG · Service Class 3 · ETA-10/0422

Sold individually. Select post size to see price.

Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
M50
Type
Post base
Service class
SC1-SC2
Brand
Rothoblaas
Supplied
Per unit
Post anchoringTimber postsStructural supportOutdoor structuresPergolas & carportsFences & balustradesConcrete anchoringHeavy structural connectionsOutdoor & exposed useCorrosive environmentsPost base anchoringAdjustable angles
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
M5070 — 71mm wide · H150M5070 Each £9.27each Supplied to order
Items
M5090 — 91mm wide · H150M5090 Each £9.59each Supplied to order
Items
M50100 — 101mm wide · H150M50100 Each £9.80each Supplied to order
Items
M50120 — 121mm wide · H150M50120 Each £9.92each Supplied to order
Items
