Home / Shop/ SLOT · Aluminium shear connector for structural panels
Rothoblaas SLOT · Aluminium shear connector for structural panels
Supplied to order

Rothoblaas

SLOT · Aluminium shear connector for structural panels

Product code: SLOT90
£14.56 ex VAT · 1 per box
£17.47 inc VAT
£14.56 per unit
Total: £14.56 ex VAT
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

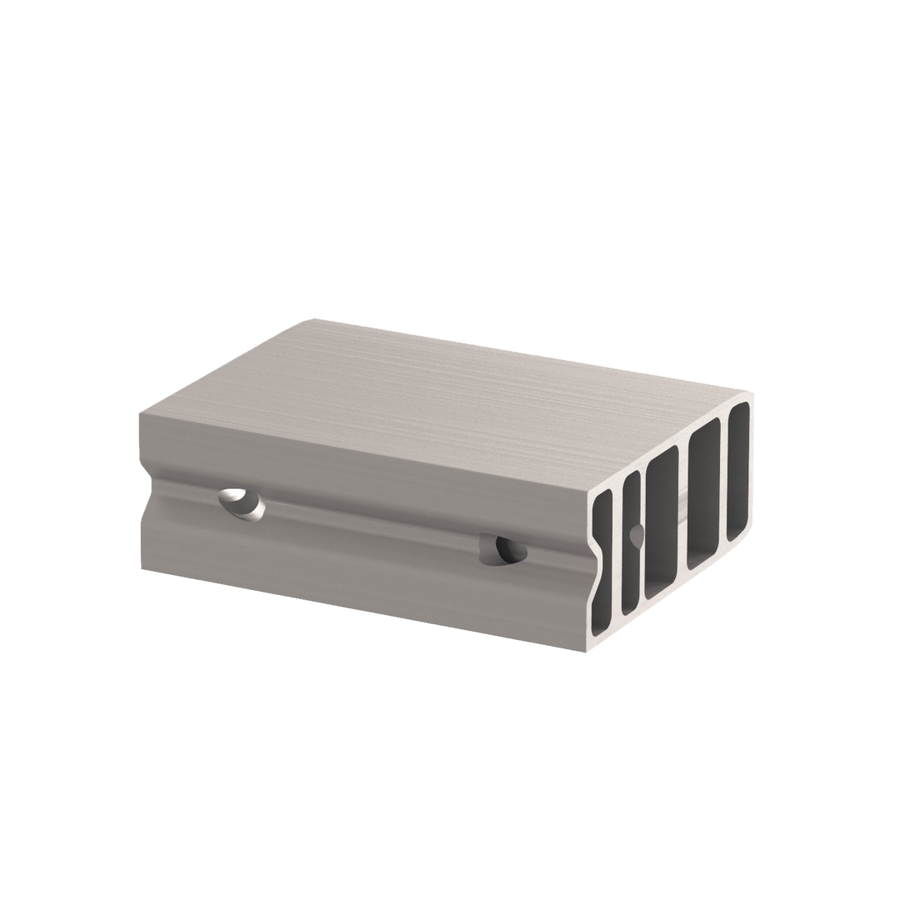

Aluminium shear connector for panel-to-panel connections in CLT, LVL and glulam walls and floors. One SLOT connector can replace up to 60 Ø6 screws, delivering exceptional shear stiffness and strength in a single compact unit. The wedge profile makes insertion easy into the routed groove and also serves as an assembly tool to close the gap between panels. ETA-19/0167 certified. Service Classes 1 and 2. Design patented and registered.

  • Panel-to-panel shear connections in walls and floors: CLT, LVL, glulam
  • Creates monolithic behaviour between panels; ideal for rigid diaphragm floors and multi-panel walls
  • One connector replaces up to 60 Ø6 screws: exceptional performance in a compact unit
  • Wedge profile: easy insertion and serves as assembly tool to close panel gaps
  • Optional inclined auxiliary screws for panel tightening (HBS 6×120 or HBS 8×140, not included)
  • SHIM accessories available for tolerance management
  • Material: EN AW-6005A aluminium alloy · Dimensions: 89×40×120mm
  • ETA-19/0167 · Service Class 1 and 2 · CE marked · Design patented

Sold individually. A minimum of two connectors must be used per connection.

Order by Wednesday midnight. Dispatched Thursday.

Material
Aluminium
Coating
None (mill-finish aluminium)
Product range
SLOT
Type
Timber connector
Service class
SC1-SC2
Brand
Rothoblaas
Supplied
Per unit
Shear connectionsPanel-to-panel jointsCLT wallsFloor & roof framingMass timber constructionStructural connectionsTimber frame walls
Technical datasheet
PDF · Opens in new tab · Download from viewer
View datasheet
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
SLOT90 — 89×40×120mm · EN AW-6005A aluminiumSLOT90 Each £14.56each Supplied to order
Items
£0.00 ex VATChoose quantities above

Related products

Rothoblaas SNK · Countersunk timber screw
Rothoblaas
500 per box
From £4.99ex VAT

5–7 days

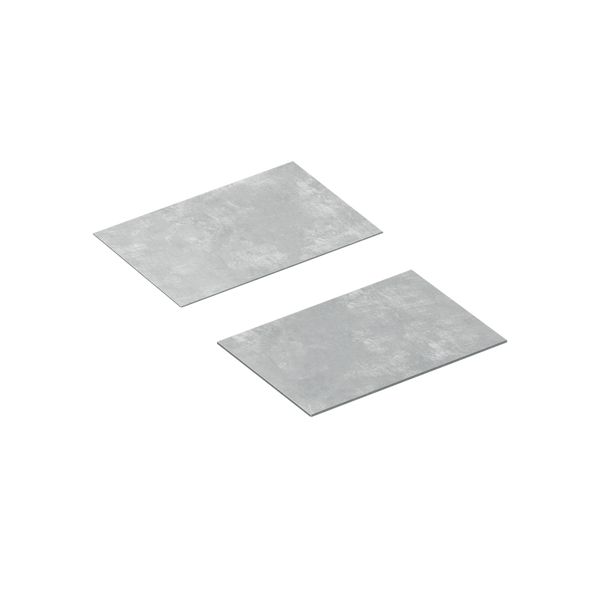

Rothoblaas SHIMS · Shim for SLOT panel connector
