Supplied to order
RothoblaasHolz Technic

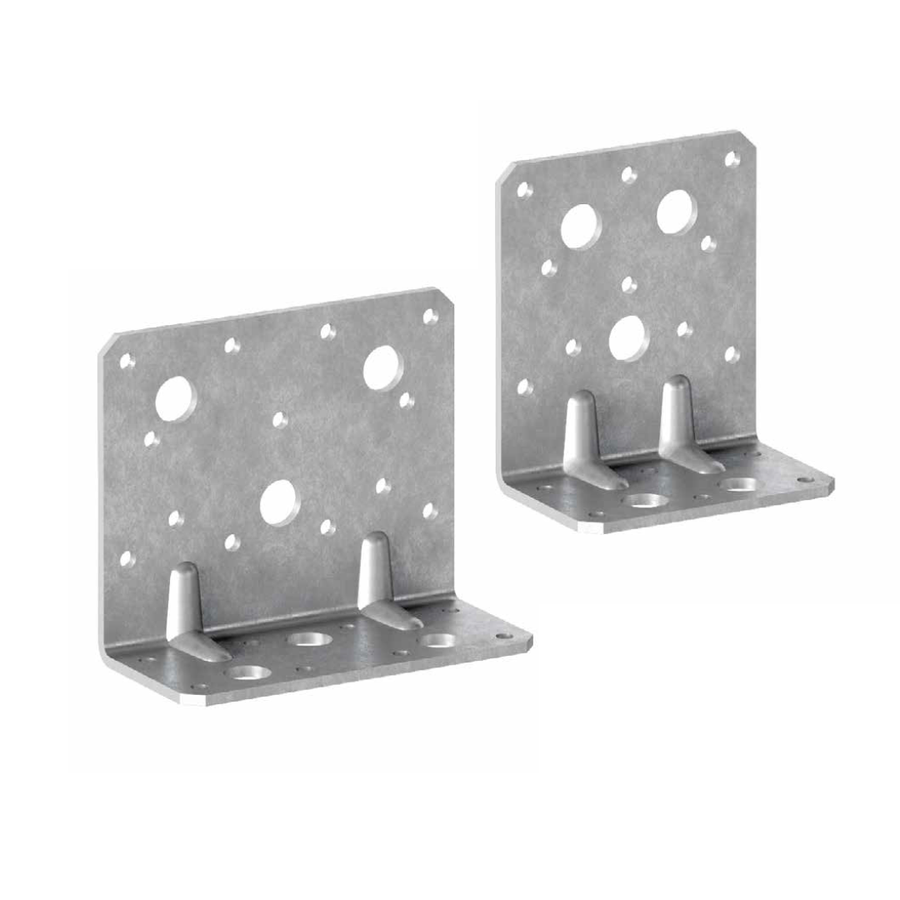

HTW · Angle bracket
Product code: HT509080
£1.98
ex VAT
· 1 per box
£2.38 inc VAT
£1.98 per unit
Not sure this is the right fixing for your connection?
Send your drawing → get a spec & quote
Want this kept in UK stock for fast delivery? Tell us. We stock more of what customers ask for. No obligation to buy; we'll let you know when it's on the shelf.
Request this in UK stock →
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible online orders · See returns policy
Asymmetrical angle bracket for shear loads with a narrow 50mm width, designed for installation in tight spaces, ideal for frame houses and small CLT structures. Available in two widths, both in 3mm DX51D/Z275 or S250/Z275 galvanised steel. CE marked.
- Ideal for frame houses and small CLT houses
- Narrow 50mm base width: designed for installation in small spaces
- 5mm holes for fastening on timber with SBL screws or LBA-HT nails
- 13mm holes for certified fastening on concrete with anchors
- Material: 3mm galvanised steel (S250/Z275 or DX51D/Z275 depending on size)
- CE marked
Sold individually. Select size to see price.
Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
HTW
Type
Angle bracket
Service class
SC1-SC2
Brand
Rothoblaas
Supplied
Per unit
Timber-to-timberTimber-to-concreteStructural connectionsWall connectionsFloor framingGeneral constructionFloor & roof framingTimber frame wallsMass timber constructionJoist hangers & bracketsShear connectionsCorrosive environments
Technical datasheet
PDF · Opens in new tab · Download from viewer
Working out a whole connection? Get exact box quantities with our Fastener Calculator.
Open calculator →
All sizes in the HTW · Angle bracket range
Search by code or size, set quantities, and add any sizes straight to your basket.
| Code | Version | Pack | Price ex VAT | Stock | Order |
|---|---|---|---|---|---|
| HT509080 | HT509080 — 80×90mm · 3mm · S250 | 1 pcs | £1.98 | To order | |
| HT90110 | HT90110 — 110×90mm · 3mm · DX51D | 1 pcs | £3.45 | To order | |
| No sizes match your search. | |||||
