Rothoblaas SPU · Uni anchor plate for joists
In stock

RothoblaasHolz Technic

SPU · Uni anchor plate for joists

Product code: SPU170
£0.75 ex VAT · 1 per box
£0.90 inc VAT
£0.75 per unit
Total: £0.75 ex VAT
Delivery and returns
Delivery sorted in the basket
One clear price · FREE over £500.
FREE delivery over £500
Tracked delivery UK wide.
VAT invoice with every order
Full VAT documentation for your records
14 days to cancel after delivery
Eligible personal purchases · Personal policy · Business policy

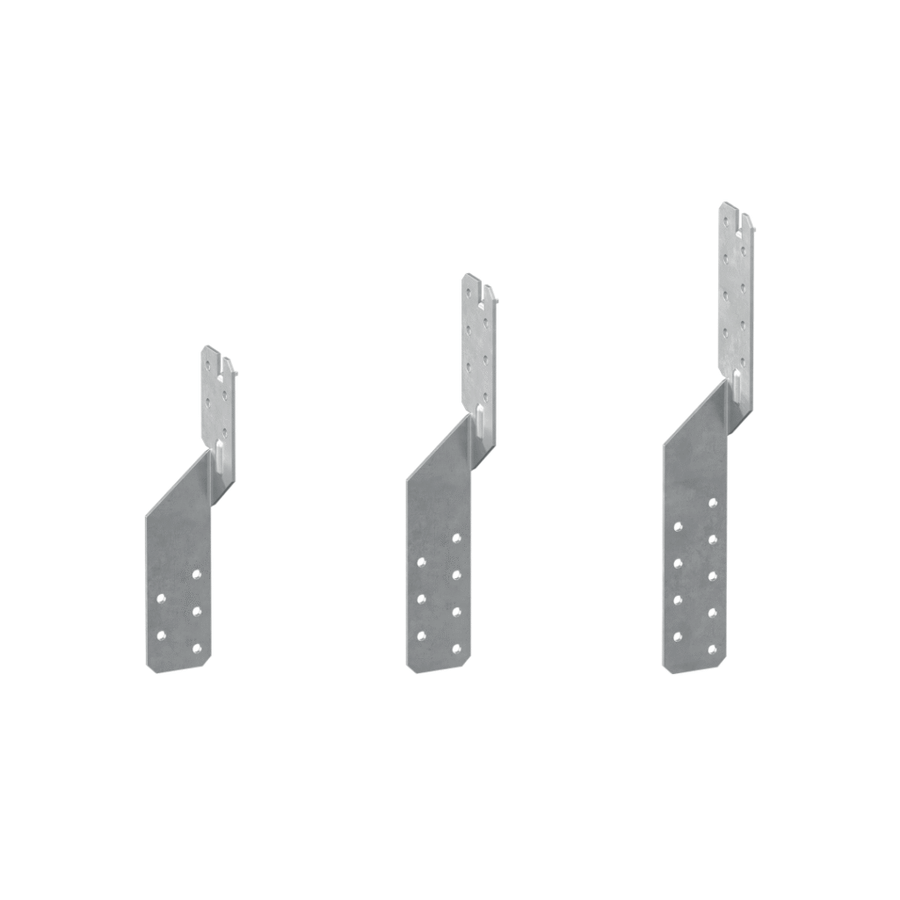

Universal anchor plate for fastening joists to platform beams. The same model installs on either the right or left side of the beam. Two anchors are recommended per joint. Three lengths available in 2mm S250/Z275 galvanised steel. Service Class 2. CE marked.

  • Ideal for fastening joists to platform beams
  • Universal: same plate installs on right or left side of beam
  • Two anchors recommended per joint
  • Fastening with SBL screws or LBA-HT nails
  • Material: 2mm S250/Z275 galvanised steel · Width: 36mm all sizes
  • Service Class 2 · CE marked

Sold individually. Select length to see price.

Material
Carbon steel
Coating
Galvanised / zinc coated
Product range
SPU
Type
Connector plate
Service class
SC1-SC2
Brand
Rothoblaas
Supplied
Per unit
Joist anchoringTimber-to-concreteStructural connectionsFloor & roof framingLoad transferRenovation workJoist hangers & bracketsConnector plate connections
Working out a whole connection? Get exact box quantities with our Fastener Calculator. Open calculator

Choose sizes and quantities

Add several sizes to your basket in one go.

Size / product codeSold asPrice ex VATAvailabilityQuantity
SPU170 — 170mm lengthSPU170 Each £0.75each In stock
Items
SPU210 — 210mm lengthSPU210 Each £0.94each In stock
Items
SPU250 — 250mm lengthSPU250 Each £1.28each In stock
Items
£0.00 ex VATChoose quantities above
