The Holztechnic HTKR Reinforced Tensile Angle Bracket is a high‑strength connector engineered for tensile load transfer in timber construction. A reinforced base and optimised hole disposition deliver reliable performance for CLT panels, studs, and plate connections, while the electro‑galvanised finish protects against corrosion in dry internal environments. Fasten to timber with structural screws and to concrete with anchors as specified.
Available variants include:

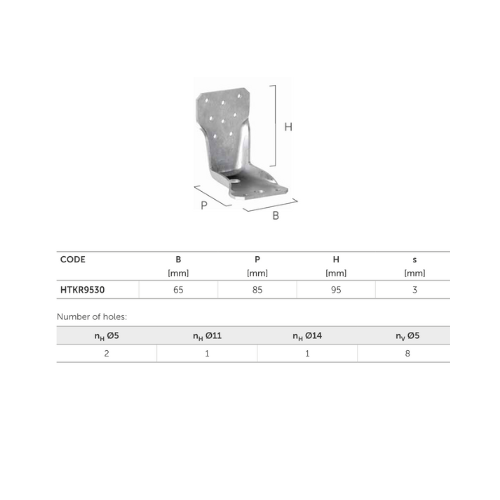

- HTKR9530: B 65 mm, P 85 mm, H 95 mm, s 3 mm

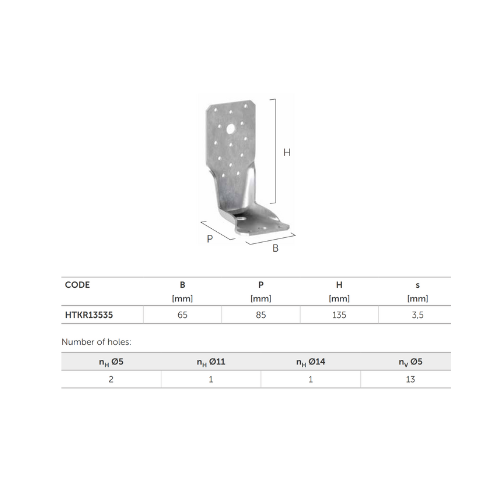

- HTKR13535: B 65 mm, P 85 mm, H 135 mm, s 3.5 mm

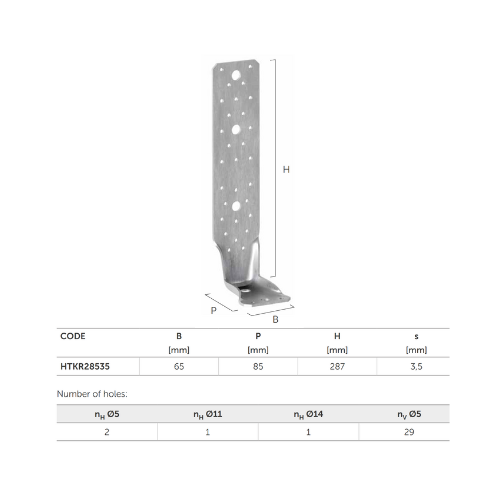

- HTKR28535: B 65 mm, P 85 mm, H 287 mm, s 3.5 mm
Hole layout per model supports combinations of Ø5, Ø11, Ø14 and elongated holes for efficient installation and load distribution.
✅ Key Features:
- Reinforced base plate for superior tensile resistance
- Optimised hole sizes and spacing for fast, accurate fixing
- Electro‑galvanised (Zn) corrosion protection for service class 1/2 interiors

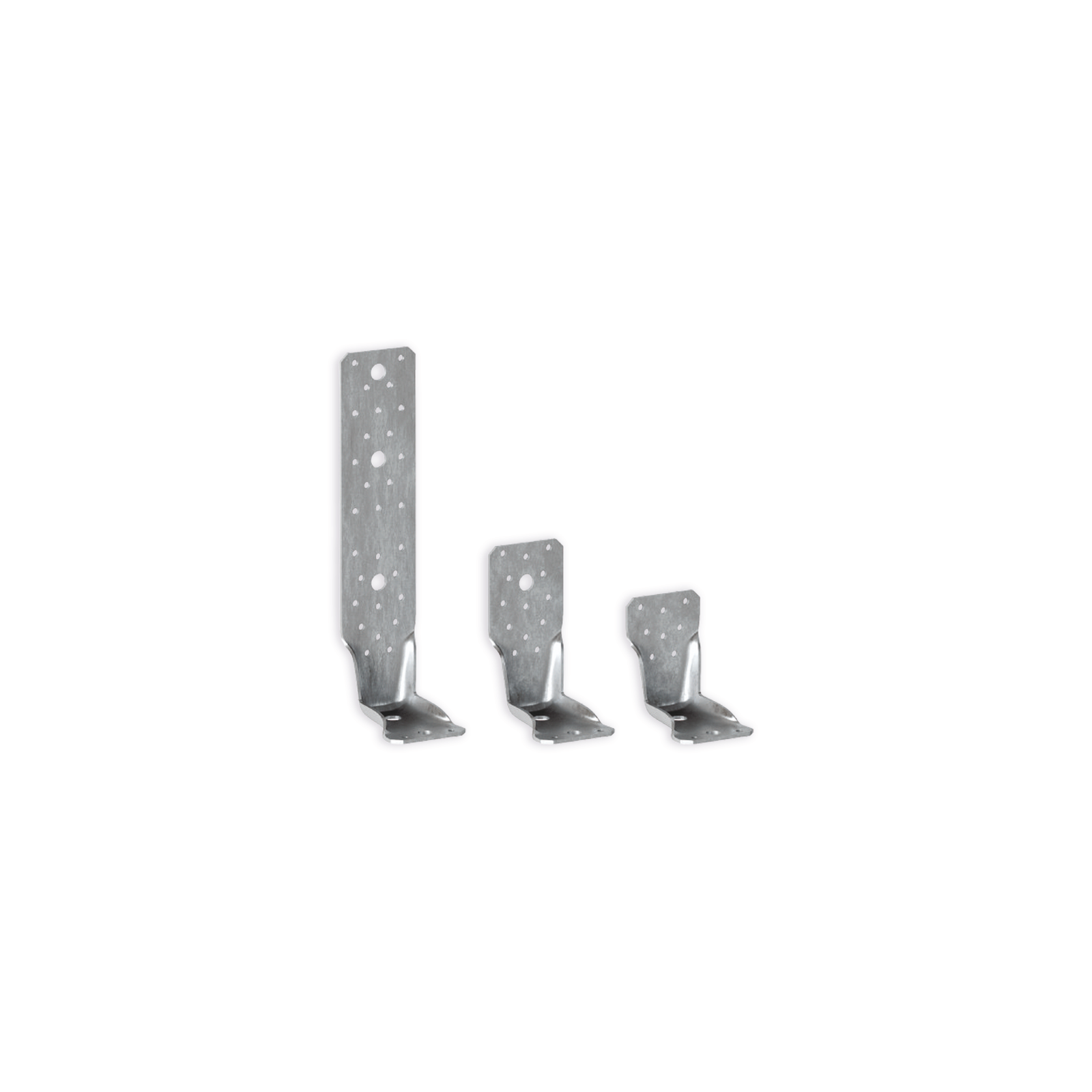

- Multiple heights (95–287 mm) to suit different load paths
- Compatible with structural timber screws and concrete anchors
- Clean, compact geometry for CLT and frame wall connections
🔧 Applications:
- CLT panel to base or stud tensile ties

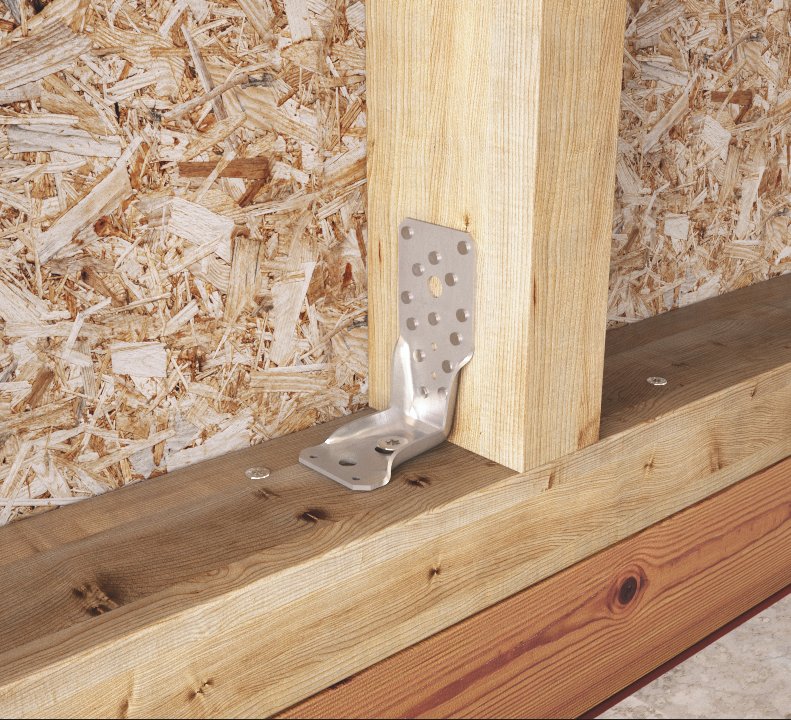

- Timber frame wall hold‑down brackets
- Shear wall overturning restraint
- Post/plate uplift restraint to concrete or timber substrates
- Retrofit reinforcement of existing connections
📦 Why Choose Holztechnic HTKR?
- Proven design with reinforced seat for dependable uplift capacity
- Clear hole disposition simplifies on‑site installation and inspection
- Multiple sizes reduce inventory while covering a wide load range
- Quality zinc‑plated steel ensures long‑lasting performance indoors
